    • Aten CS1844 KVM switch Black
    Manufacturer: ATEN

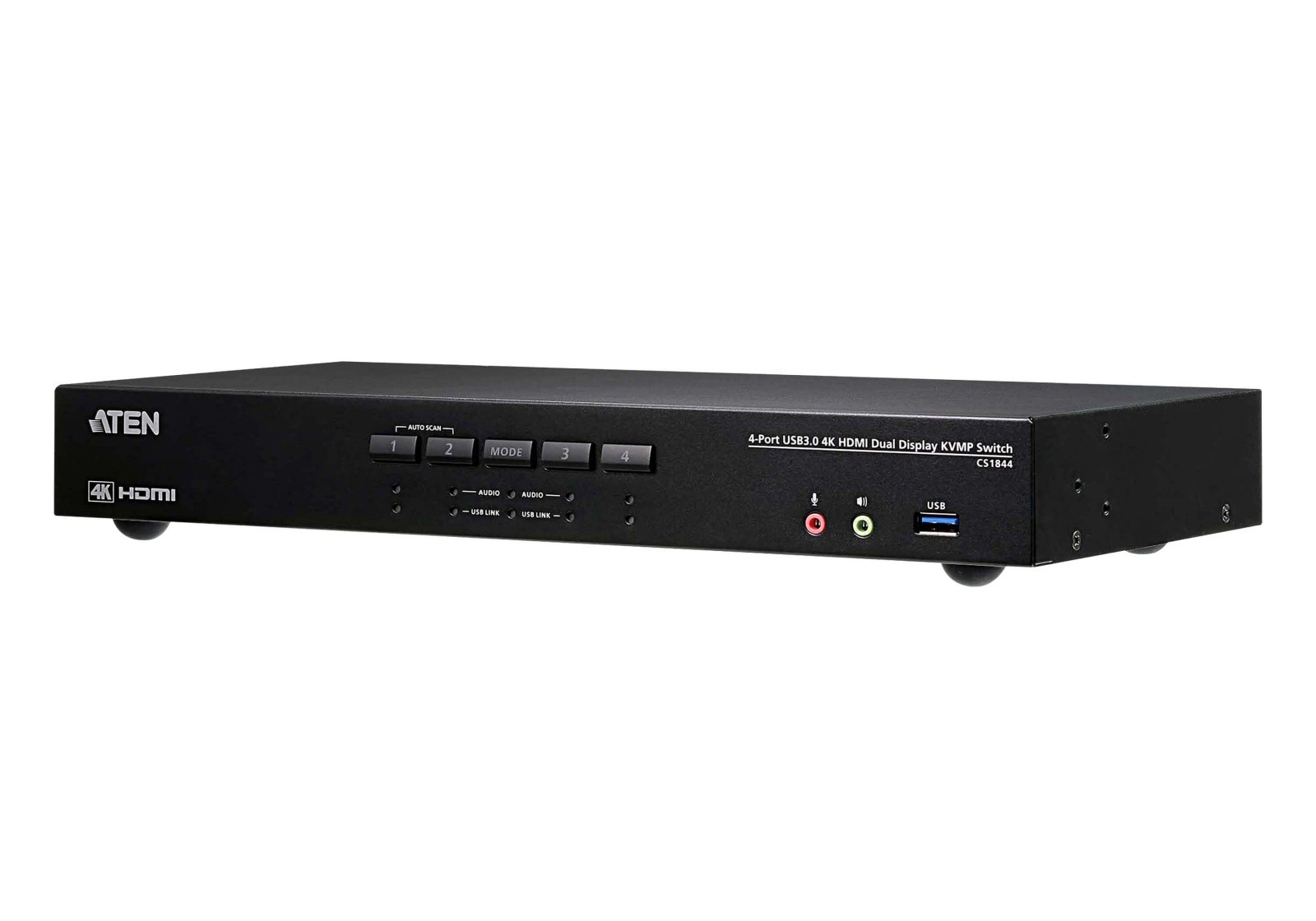

    Aten CS1844 KVM switch Black


    €685.04 incl tax

    SKU: ST04530113
    Manufacturer part number: CS1844
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
    HDMI ports quantity10
    HDMI version2.0
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    Headphone outputs2
    Number of microphone inputs2
    Ethernet LAN (RJ-45) ports1
    HD type4K DCI
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval5 s
    Auto scan delay (min)1 s
    Auto scan delay (max)99 s
    HDCPYes
    Daisy chainYes
    Number of displays supported4
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)4.42 W
    Sustainability certificatesRoHS
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width160.5 mm
    Depth335 mm
    Height44 mm
    Weight1.57 kg
    Cables includedAudio (3.5mm), HDMI, USB
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS1844. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K DCI, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 4.42 W. Sustainability certificates: RoHS
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, HDMI
    colourblack
    weight1.6 kg
    height of packaging (single piece)120 mm
    width of packaging (single piece)260 mm
    depth of packaging (single piece)530 mm
    package weight (single piece)4.187 kg
    gross weight4.187
    current catalog edition24.1
    current catalog page3.07
    scope of delivery1x CS1844 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switc...
    height44 mm
    width160.5 mm
    depth335 mm
    dimensions (hxwxd)44 x 160,5 x 335 mm
    material (casing)Metall
    quantity of pcs2
    supported pc-systemsUSB 3.0
    pc: monitor connection8x HDMI BU
    pc: mouse/keyboard connection2x USB Typ B
    print button on deviceja
    integrated hubja
    19" compatiblenein
    cascadablenein
    max. resolution (nominal)4096 x 2160 @ 60Hz
    colour (design profile)schwarz
    power supply unit requiredja
    power supply output5,V
    analogue console: monitor connection2x HDMI BU
    analogue console: mouse/keyboard connection2x USB Typ A
    quantity of usb-hub ports2
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runentfällt
    switching over osdnein
    audio switchingLautsprecher und Mikrofon
    audio switching separatelyja
    mains connectionGerät-Eurostecker, Typ-C
    usb hub switching separatelyja
    Description

    Products specifications
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
    HDMI ports quantity10
    HDMI version2.0
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    Headphone outputs2
    Number of microphone inputs2
    Ethernet LAN (RJ-45) ports1
    HD type4K DCI
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval5 s
    Auto scan delay (min)1 s
    Auto scan delay (max)99 s
    HDCPYes
    Daisy chainYes
    Number of displays supported4
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)4.42 W
    Sustainability certificatesRoHS
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width160.5 mm
    Depth335 mm
    Height44 mm
    Weight1.57 kg
    Cables includedAudio (3.5mm), HDMI, USB
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS1844. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K DCI, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 4.42 W. Sustainability certificates: RoHS
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, HDMI
    colourblack
    weight1.6 kg
    height of packaging (single piece)120 mm
    width of packaging (single piece)260 mm
    depth of packaging (single piece)530 mm
    package weight (single piece)4.187 kg
    gross weight4.187
    current catalog edition24.1
    current catalog page3.07
    scope of delivery1x CS1844 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switc...
    height44 mm
    width160.5 mm
    depth335 mm
    dimensions (hxwxd)44 x 160,5 x 335 mm
    material (casing)Metall
    quantity of pcs2
    supported pc-systemsUSB 3.0
    pc: monitor connection8x HDMI BU
    pc: mouse/keyboard connection2x USB Typ B
    print button on deviceja
    integrated hubja
    19" compatiblenein
    cascadablenein
    max. resolution (nominal)4096 x 2160 @ 60Hz
    colour (design profile)schwarz
    power supply unit requiredja
    power supply output5,V
    analogue console: monitor connection2x HDMI BU
    analogue console: mouse/keyboard connection2x USB Typ A
    quantity of usb-hub ports2
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runentfällt
    switching over osdnein
    audio switchingLautsprecher und Mikrofon
    audio switching separatelyja
    mains connectionGerät-Eurostecker, Typ-C
    usb hub switching separatelyja
    Description
