    Manufacturer: ATEN

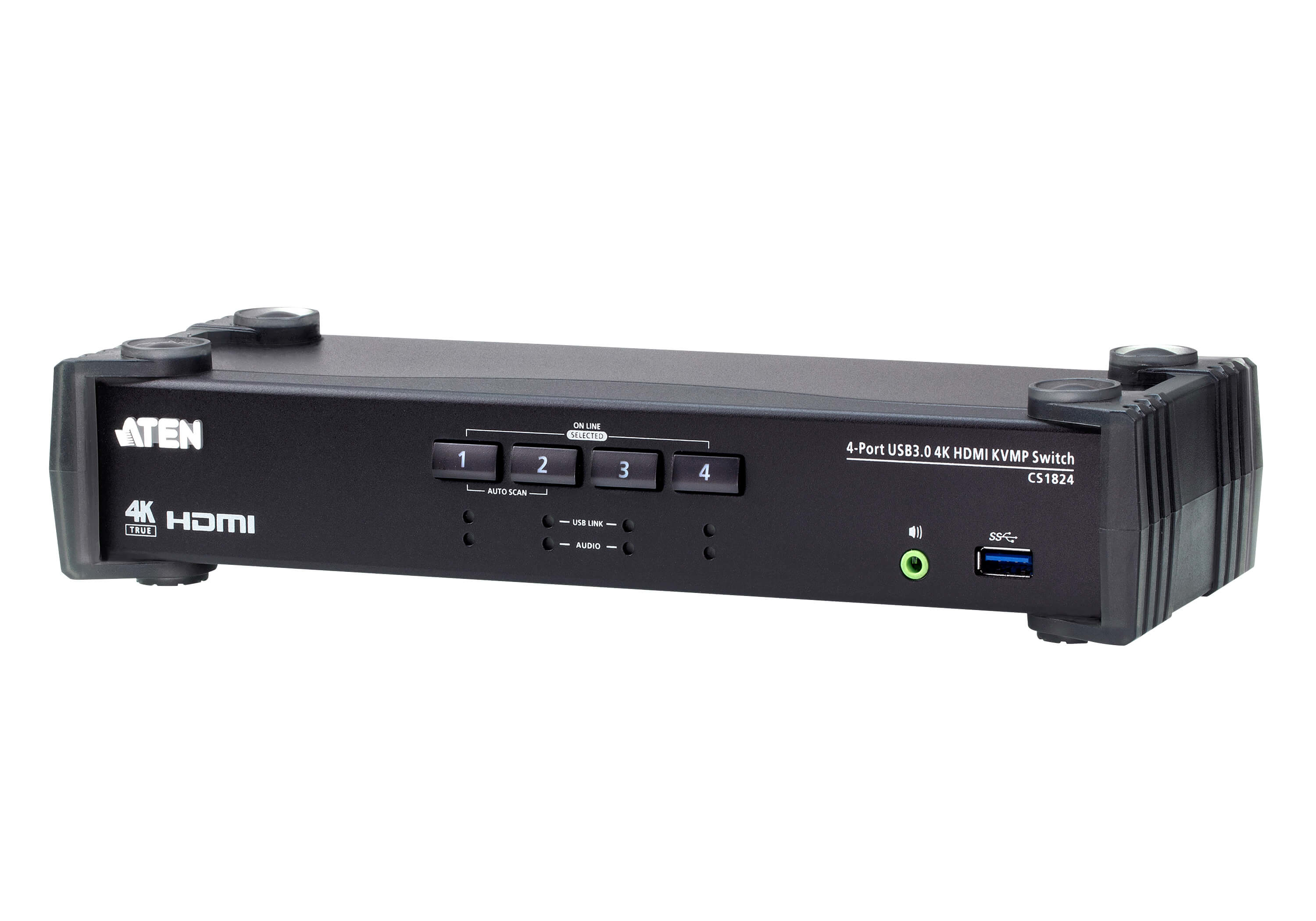

    Aten 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode


    €419.10 incl tax

    SKU: ST04530151
    Manufacturer part number: CS1824-AT-G
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    LT
    LV

    Products specifications
    Properties USB 3.0
    Properties HDMI
    RJ-45 port 4
    DesignationCE+WEEE
    Width325
    Height210
    Depth100
    Weight2500
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, HDMI, USB A
    HDMI ports quantity5
    HDMI version2.0
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
    Console USB ports quantity4
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Serial ports quantity1
    Audio connectionsYes
    Headphone outputs6
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,99 s
    HDCPYes
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal, Plastic
    LED indicatorsYes
    Push buttonYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)2.535 W
    Sustainability certificatesRoHS
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width88 mm
    Depth270 mm
    Height55.5 mm
    Weight2.24 kg
    Package width98 mm
    Package depth325 mm
    Package height210 mm
    Package weight2.54 kg
    Master (outer) case net weight11.2 kg
    Harmonized System (HS) code85176200
    Master (outer) case width342 mm
    Master (outer) case length512 mm
    Master (outer) case height232 mm
    Master (outer) case gross weight13.2 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 2.535 W. Sustainability certificates: RoHS
    Gross depth (mm)270
    Gross height (mm)55.5
    Gross weight1.194
    Gross width (mm)88
    Net weight0.94
    Packing quantity1.00
    Paper/Pasteboard203.20
    Plastic (No PET)50.80
    Tare weight (kg)0.25
    Volume (m3)0.00131868
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerAten
    Producer product nameCS1824
    Producer product family4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode
    Palette Qty258
    Warranty24

    Products specifications
    Properties USB 3.0
    Properties HDMI
    RJ-45 port 4
    DesignationCE+WEEE
    Width325
    Height210
    Depth100
    Weight2500
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, HDMI, USB A
    HDMI ports quantity5
    HDMI version2.0
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
    Console USB ports quantity4
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Serial ports quantity1
    Audio connectionsYes
    Headphone outputs6
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,99 s
    HDCPYes
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal, Plastic
    LED indicatorsYes
    Push buttonYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)2.535 W
    Sustainability certificatesRoHS
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width88 mm
    Depth270 mm
    Height55.5 mm
    Weight2.24 kg
    Package width98 mm
    Package depth325 mm
    Package height210 mm
    Package weight2.54 kg
    Master (outer) case net weight11.2 kg
    Harmonized System (HS) code85176200
    Master (outer) case width342 mm
    Master (outer) case length512 mm
    Master (outer) case height232 mm
    Master (outer) case gross weight13.2 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 2.535 W. Sustainability certificates: RoHS
    Gross depth (mm)270
    Gross height (mm)55.5
    Gross weight1.194
    Gross width (mm)88
    Net weight0.94
    Packing quantity1.00
    Paper/Pasteboard203.20
    Plastic (No PET)50.80
    Tare weight (kg)0.25
    Volume (m3)0.00131868
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerAten
    Producer product nameCS1824
    Producer product family4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode
    Palette Qty258
    Warranty24
