Manufacturer: ZYXEL

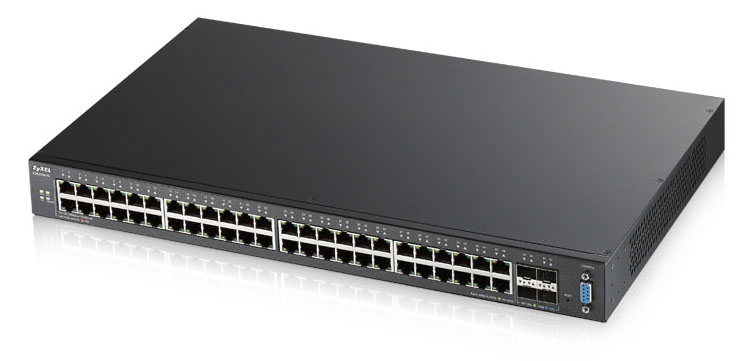

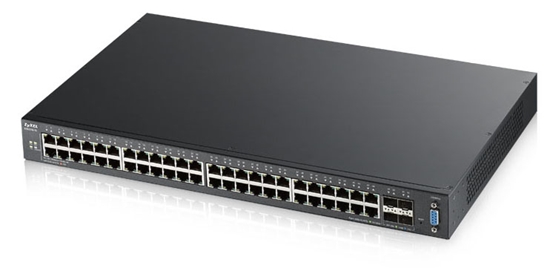

Zyxel XGS2210-52 48-Port GbL2 managed switch

€914.72 incl tax

SKU: ST00794490

Manufacturer part number: XGS2210-52-EU0101F

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	2	€914.72 incl tax
LV	7 - 12 days	3	€1053.51 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

Properties	RJ-45
RJ-45 port	48
WRL stadarti	802.11b
RJ-45 port	8

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic shaping	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
MAC address auto-learning supported	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Throughput	130.9 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, SNMP, SSH, SSH-2
MAC address filtering	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication
Multicast support	Yes
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 (A), CE (A), BSMI
Certification	RoHS
Noise level	44.15 dB
Plug and Play	Yes
Mean time between failures (MTBF)	970594 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	45 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	153.3 BTU/h
Width	441 mm
Depth	270 mm
Height	45 mm
Weight	3.86 kg
Cables included	AC
Rack mount kit	Yes
Package width	622 mm
Package depth	358 mm
Package height	108 mm
Package weight	4.92 kg
Harmonized System (HS) code	85176990
Description
Description	Zyxel XGS2210-52. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U

power over ethernet (poe)

plug and play

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

3.86 kg

height

45 mm

width

441 mm

depth

270 mm

switch type

Managed

stackable

Yes

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

176 Gbit/s

packet buffer memory

1.5 MB

access control list (acl)

Yes

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

form factor

product colour

Black

noise level

44.15 dB

mean time between failures (mtbf)

970594 h

power consumption (max)

45 W

operating temperature (t-t)

0 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 95%

storage relative humidity (h-h)

10 - 90%

heat dissipation

153.3 BTU/h

package width

622 mm

package depth

358 mm

package height

108 mm

package weight

4.92 kg

certification

RoHS

harmonized system (hs) code

85176990

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

cables included

jumbo frames support

Yes

security algorithms

802.1x RADIUS, SNMP, SSH, SSH-2

safety

LVD, BSMI

jumbo frames

9000

igmp snooping

Yes

rack mount kit

Yes

spanning tree protocol

Yes

mac address auto-learning supported

Yes

vlan support

Yes

system event log

Yes

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

throughput

130.9 Mpps

dhcp features

DHCP client

ssh/ssl support

Yes

electromagnetic compatibility

FCC 15 (A), CE (A), BSMI

virtual lan features

Private VLAN, Protocol-based VLAN, Port-based VLAN

number of queues

mib support

RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293

arp inspection

Yes

bpdu filtering/protection

Yes

authentication

MAC-based authentication

ip routing

Yes

traffic shaping

Yes

Description

Zyxel XGS2210-52. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 48. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 176 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Statņa montāža, Formas faktors: 1U
