    Manufacturer: INTELLINET

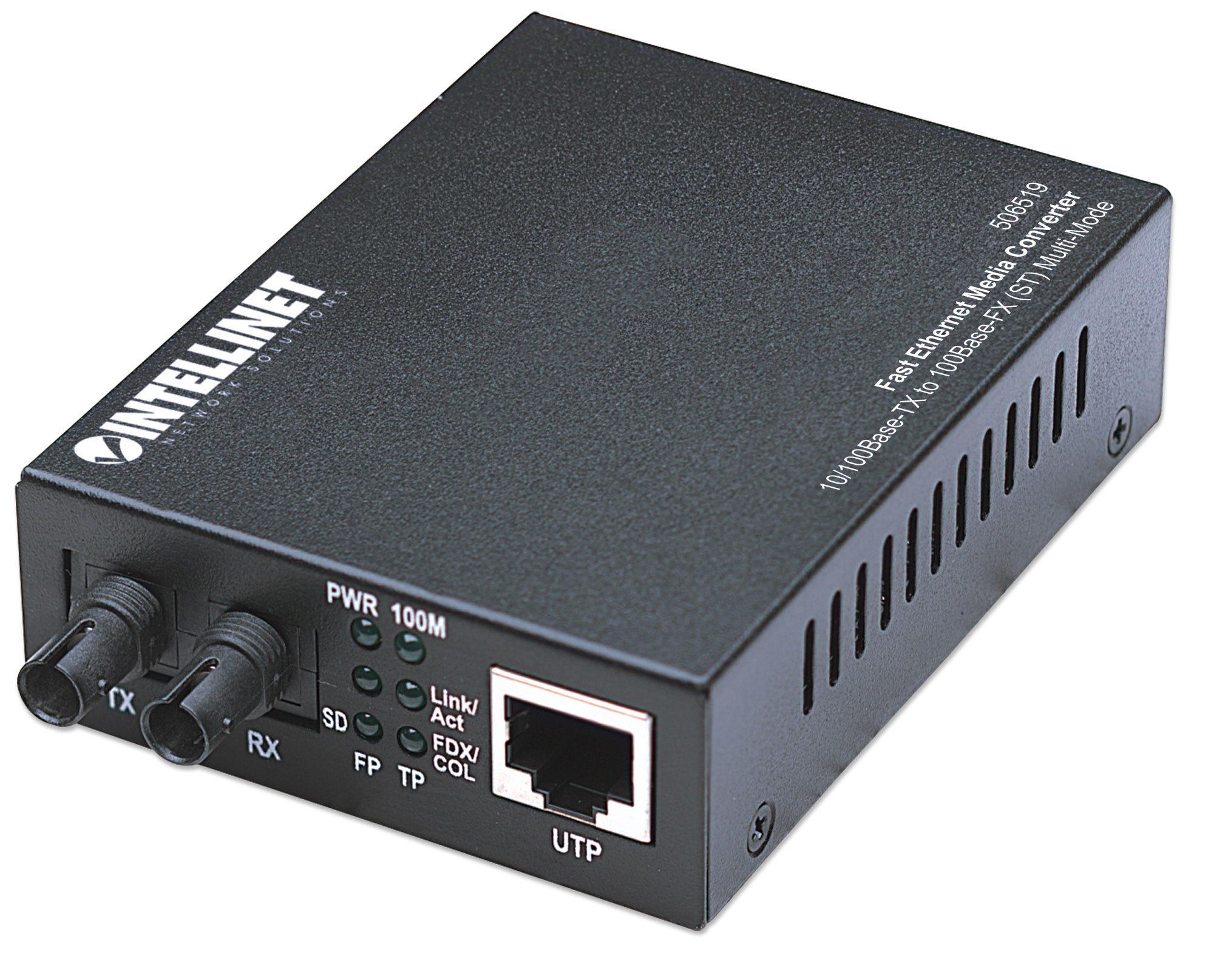

    Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) (Euro 2-pin plug)


    €57.72 incl tax

    SKU: ST03630157
    Manufacturer part number: 506519
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 1
    UsageLAN
    Accessories included
    • Media Konwerter Fast Ethernet
    • Zewnętrzny adapter zasilania
    • Instrukcja użytkownika
    ColorBlack
    Dimensions

    107 x 70 x 26 mm
    Weight500 (gram)
    Other features
    • Media transmisyjne:
      - 100Base-TX Cat3 lub lepszy UPT/STP RJ45, EIA/TIA 568
      - 100Base-FX wielomodowy 62.5/125 lub 50/125 m
    • Złącza:
      - 1 port RJ45, 100Base-TX
      - 1 port światłowodowy ST duplex, 100Base-FX
    • Odległości:
      - 2 km (dla światłowodu 62.5/125 lub 50/125)
      - 100 m (dla kabla Ethernet RJ45)
    • Długość fali: 1310 nm
    • Minimalna siła nadawcza: -22 dBm
    • Maksymalna siła nadawcza: -12 dBm
    • Czułość odbiornika: -30 dBm
    • Strata sygnału: 2 dB/km
    • Certyfikaty: FCC Class B, CE Mark
    DesignationCE+WEEE
    Width125
    Height230
    Depth50
    Weight340
    Description

    Rozwiązania sieciowe Intellinet Fast Ethernet Media Converter został specjalnie zaprojektowany, aby zaoferować projektantowi sieci urządzenie do migracji z sieci Ethernet opartej na miedzi na Ethernet światłowodowy. Teraz migrację lub rozbudowę istniejących sieci można osiągnąć przy minimalnych kosztach i złożoności.
    Maximum data transfer rate100 Mbit/s
    Networking standardsIEEE 802.3,IEEE 802.3u
    Ethernet interface typeFast Ethernet
    Ethernet LAN data rates10,100 Mbit/s
    Flow control supportY
    Duplex systemFull, Half
    Fiber optic connectorST
    Connectivity technologyWired
    Ethernet LAN (RJ-45) ports1
    Fiber ports quantity1
    DC-in jackY
    Maximum transfer distance2000 m
    Wavelength1310 nm
    Fiber mode structureMulti-mode
    Fiber cable diameters supported (core/cladding)50/125 µm
    Tx power (min)-22 dBmW
    Tx power (max)-12 dBmW
    Sensitivity-30 dBmW
    InternalN
    LED indicatorsLAN, Link, Power
    Product colourBlack
    Housing materialMetal
    CertificationFCC, CE
    Input current1 A
    Output voltage5 V
    Power consumption (max)2.5 W
    External power adapterY
    Width70 mm
    Depth107 mm
    Height26 mm
    Weight500 g
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-45 - 85 °C
    Operating relative humidity (H-H)10 - 90%
    ManualY
    Description
    Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) (Euro 2-pin plug). Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3u, Ethernet interface type: Fast Ethernet. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Product colour: Black, Housing material: Metal. Input current: 1 A, Output voltage: 5 V, Power consumption (max): 2.5 W
    weight500 g
    maximum data transfer rate100 Mbit/s
    height26 mm
    width70 mm
    depth107 mm
    networking standardsIEEE 802.3, IEEE 802.3u
    flow control supportYes
    product colourBlack
    led indicatorsLAN, Link, Power
    power consumption (max)2.5 W
    operating temperature (t-t)0 - 70 °C
    storage temperature (t-t)-45 - 85 °C
    operating relative humidity (h-h)10 - 90%
    certificationFCC, CE
    harmonized system (hs) code85176990
    internalNo
    ethernet interface typeFast Ethernet
    manualYes
    ethernet lan data rates10,100 Mbit/s
    duplex systemFull, Half
    maximum transfer distance2000 m
    wavelength1310 nm
    fiber mode structureMulti-mode
    fiber cable diameters supported (core/cladding)50/125 µm
    tx power (min)-22 dBmW
    tx power (max)-12 dBmW
    sensitivity-30 dBmW
    housing materialMetal
    fiber optic connectorST
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity1
    dc-in jackYes
    input current1 A
    external power adapterYes
    output voltage5 V
    Description
    Intellinet 506519. Maksimālais datu pārraides ātrums: 100 Mbit/s, Tīkla standarts: IEEE 802.3, IEEE 802.3u, Ethernet interfeisa tips: Ātrais Ethernet. Maksimālais pārskaitījums attālums: 2000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Multi režīms. LED indikatori: LAN, Link, Jauda, Produkta krāsa: Melns, Apvalka materiāls: Metāls. Optiskās šķiedras konektors: ST, Savienojamības tehnoloģija: Vadu. Ieejas strāva: 1 A, Izejas spriegums: 5 V, Strāvas patēriņš (maks): 2,5 W

    Products specifications
    Properties RJ-45
    RJ-45 port 1
    UsageLAN
    Accessories included
    • Media Konwerter Fast Ethernet
    • Zewnętrzny adapter zasilania
    • Instrukcja użytkownika
    ColorBlack
    Dimensions

    107 x 70 x 26 mm
    Weight500 (gram)
    Other features
    • Media transmisyjne:
      - 100Base-TX Cat3 lub lepszy UPT/STP RJ45, EIA/TIA 568
      - 100Base-FX wielomodowy 62.5/125 lub 50/125 m
    • Złącza:
      - 1 port RJ45, 100Base-TX
      - 1 port światłowodowy ST duplex, 100Base-FX
    • Odległości:
      - 2 km (dla światłowodu 62.5/125 lub 50/125)
      - 100 m (dla kabla Ethernet RJ45)
    • Długość fali: 1310 nm
    • Minimalna siła nadawcza: -22 dBm
    • Maksymalna siła nadawcza: -12 dBm
    • Czułość odbiornika: -30 dBm
    • Strata sygnału: 2 dB/km
    • Certyfikaty: FCC Class B, CE Mark
    DesignationCE+WEEE
    Width125
    Height230
    Depth50
    Weight340
    Description

    Rozwiązania sieciowe Intellinet Fast Ethernet Media Converter został specjalnie zaprojektowany, aby zaoferować projektantowi sieci urządzenie do migracji z sieci Ethernet opartej na miedzi na Ethernet światłowodowy. Teraz migrację lub rozbudowę istniejących sieci można osiągnąć przy minimalnych kosztach i złożoności.
    Maximum data transfer rate100 Mbit/s
    Networking standardsIEEE 802.3,IEEE 802.3u
    Ethernet interface typeFast Ethernet
    Ethernet LAN data rates10,100 Mbit/s
    Flow control supportY
    Duplex systemFull, Half
    Fiber optic connectorST
    Connectivity technologyWired
    Ethernet LAN (RJ-45) ports1
    Fiber ports quantity1
    DC-in jackY
    Maximum transfer distance2000 m
    Wavelength1310 nm
    Fiber mode structureMulti-mode
    Fiber cable diameters supported (core/cladding)50/125 µm
    Tx power (min)-22 dBmW
    Tx power (max)-12 dBmW
    Sensitivity-30 dBmW
    InternalN
    LED indicatorsLAN, Link, Power
    Product colourBlack
    Housing materialMetal
    CertificationFCC, CE
    Input current1 A
    Output voltage5 V
    Power consumption (max)2.5 W
    External power adapterY
    Width70 mm
    Depth107 mm
    Height26 mm
    Weight500 g
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-45 - 85 °C
    Operating relative humidity (H-H)10 - 90%
    ManualY
    Description
    Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) (Euro 2-pin plug). Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3u, Ethernet interface type: Fast Ethernet. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Product colour: Black, Housing material: Metal. Input current: 1 A, Output voltage: 5 V, Power consumption (max): 2.5 W
    weight500 g
    maximum data transfer rate100 Mbit/s
    height26 mm
    width70 mm
    depth107 mm
    networking standardsIEEE 802.3, IEEE 802.3u
    flow control supportYes
    product colourBlack
    led indicatorsLAN, Link, Power
    power consumption (max)2.5 W
    operating temperature (t-t)0 - 70 °C
    storage temperature (t-t)-45 - 85 °C
    operating relative humidity (h-h)10 - 90%
    certificationFCC, CE
    harmonized system (hs) code85176990
    internalNo
    ethernet interface typeFast Ethernet
    manualYes
    ethernet lan data rates10,100 Mbit/s
    duplex systemFull, Half
    maximum transfer distance2000 m
    wavelength1310 nm
    fiber mode structureMulti-mode
    fiber cable diameters supported (core/cladding)50/125 µm
    tx power (min)-22 dBmW
    tx power (max)-12 dBmW
    sensitivity-30 dBmW
    housing materialMetal
    fiber optic connectorST
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity1
    dc-in jackYes
    input current1 A
    external power adapterYes
    output voltage5 V
    Description
    Intellinet 506519. Maksimālais datu pārraides ātrums: 100 Mbit/s, Tīkla standarts: IEEE 802.3, IEEE 802.3u, Ethernet interfeisa tips: Ātrais Ethernet. Maksimālais pārskaitījums attālums: 2000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Multi režīms. LED indikatori: LAN, Link, Jauda, Produkta krāsa: Melns, Apvalka materiāls: Metāls. Optiskās šķiedras konektors: ST, Savienojamības tehnoloģija: Vadu. Ieejas strāva: 1 A, Izejas spriegums: 5 V, Strāvas patēriņš (maks): 2,5 W
