| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Rack mounting | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Certification | C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
| Built-in display | No |
| AC input frequency | 50 - 60 Hz |
| Sustainability certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.59 kg |
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 3.99 kg |
| Harmonized System (HS) code | 85176200 |
| Description |

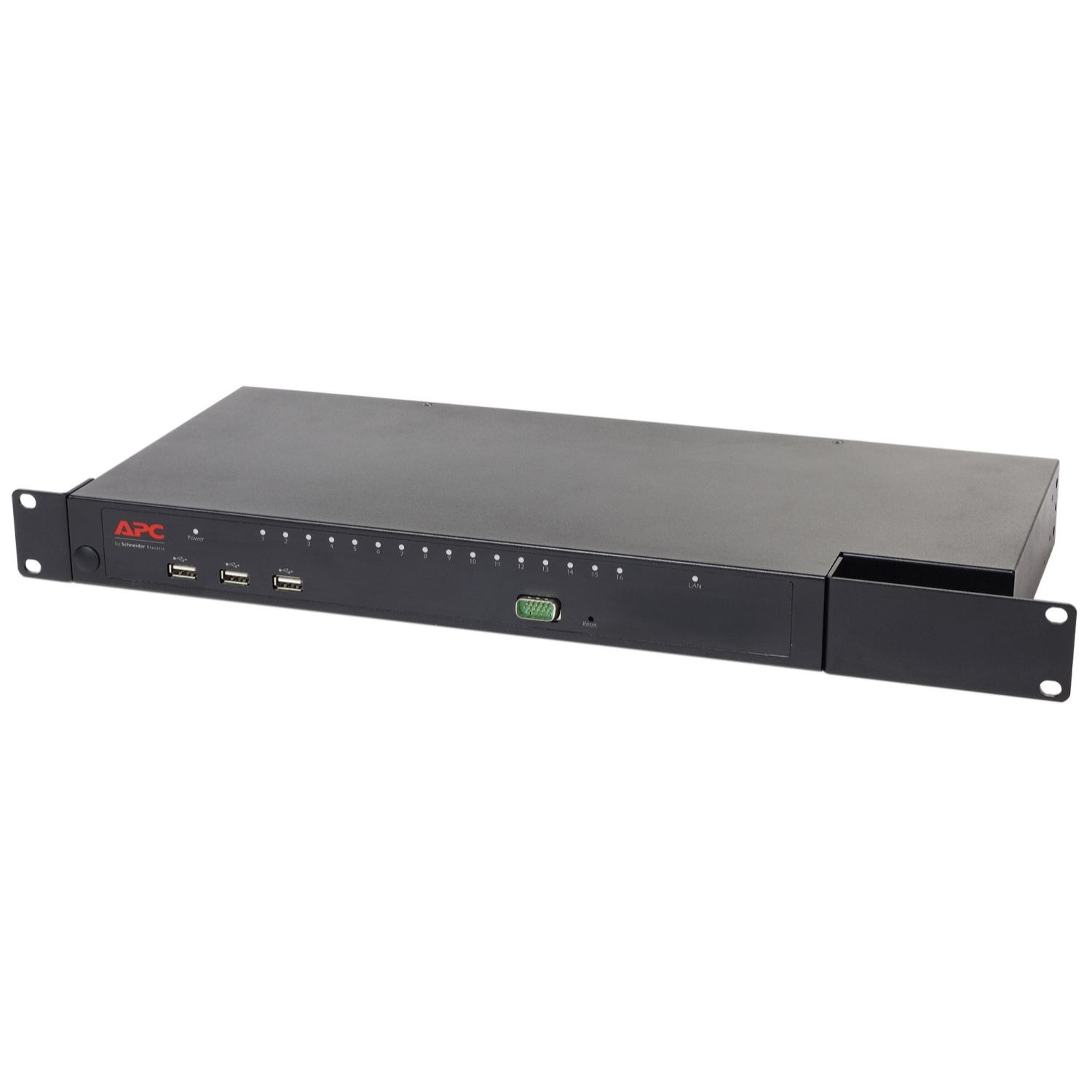

| APC KVM1116R. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Product colour: Black, Rack capacity: 1U, Certification: C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE. AC input frequency: 50 - 60 Hz. Sustainability certificates: RoHS. Width: 424 mm, Depth: 188 mm, Height: 43 mm |
