Manufacturer: ARCTIC

ARCTIC P12 - Pressure-optimised 120 mm Fan

€22.81 incl tax

SKU: ST04031275

Manufacturer part number: ACFAN00135A

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 5 days	2	€22.81 incl tax
LT	2 - 4 days	2	€23.47 incl tax
PL	8 - 15 days	176	€29.91 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

Producer	Case cooler 120 mm.

Suitable location	Computer case
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Rotational speed (max)	1800 RPM
Noise level	0.3 sone
Maximum airflow	56.3 cfm
Airflow	95.65 m³/h
Bearing type	Fluid Dynamic Bearing (FDB)
Product colour	Black
Number of fans	1 fan(s)
Number of fan blades	5
Fan connector	3-pin
Voltage	12 V
Starting voltage	2.8 V
Rated current	0.2 A
Width	120 mm
Depth	120 mm
Height	25 mm
Weight	139 g
Cable length	0.4 m
Package width	130 mm
Package depth	127 mm
Package height	123 mm
Package weight	800 g
Package type	Box
Screws included	Yes
Number of screws	20
Country of origin	China
Harmonized System (HS) code	84733080
Description
Description	ARCTIC P12 - Pressure-optimised 120 mm Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Maximum airflow: 56.3 cfm, Airflow: 95.65 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black

Weight	0.5
Gross weight	0.6
Description

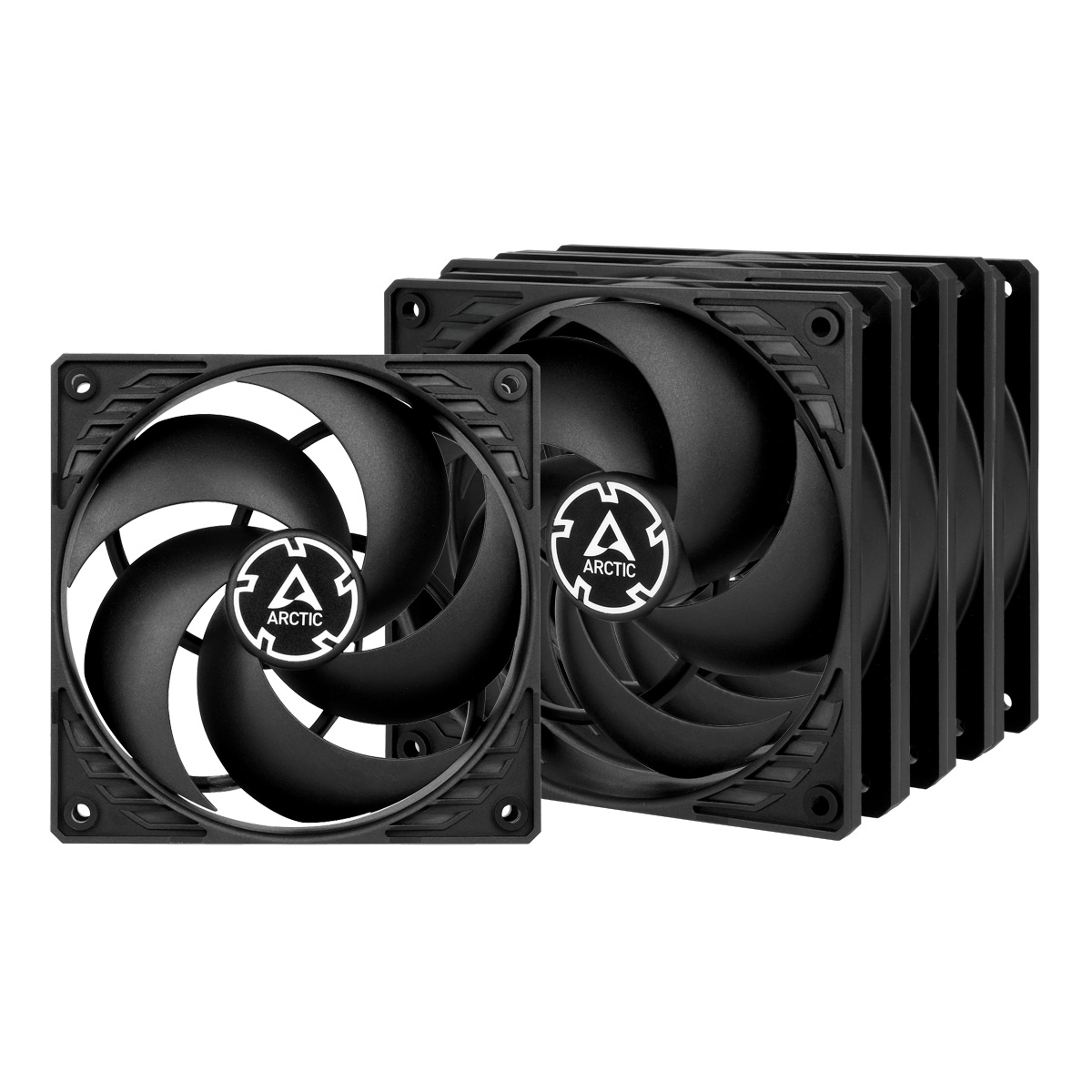

	The ARCTIC P12 fan (model ACFAN00135A) is a set of five 120 mm fans optimized for static pressure, making them ideal for use on heatsinks and radiators. Technical Specifications: Dimensions: 120 x 120 x 25 mm Rotation Speed: up to 1800 RPM Airflow: up to 56.3 CFM (95.6 m³/h) Static Pressure: 2.2 mm H₂O Noise Level: up to 22.5 dBa Bearing Type: Fluid Dynamic Bearing Speed Control: Fixed rotation speed Cable Length: 400 mm Operating Voltage: 12 V DC Connector Type: 3-pin Power Consumption: 0.08 A
	ARCTIC P12 ventilators (modelis ACFAN00135A) ir komplekts no pieciem 120 mm ventilatoriem, kas optimizēti statiskajam spiedienam, padarot tos ideāli piemērotus lietošanai uz radiatoriem un radiatoriem. Tehniskās specifikācijas: Izmēri: 120 x 120 x 25 mm Griešanās ātrums: līdz 1800 apgr./min Gaisa plūsma: līdz 56,3 CFM (95,6 m³/h) Statiskā spiediena: 2,2 mm ūdens kolonna Troksnis līmenis: līdz 22,5 dBa Gultņa tips: Hidrodinamiskais Ātruma kontrole: Pastāvīga griešanās ātruma Kabeļa garums: 400 mm Barošanas spriegums: 12 V DC Savienojuma tips: 3-pin Patērētā jauda: 0,08 A
	Вентилятор ARCTIC P12 (модель ACFAN00135A) представляет собой комплект из пяти 120-мм вентиляторов, оптимизированных для статического давления, что делает их идеальными для использования на радиаторах и радиаторах. Технические характеристики: Размеры: 120 x 120 x 25 мм Скорость вращения: до 1800 об/мин Воздушный поток: до 56,3 CFM (95,6 м³/ч) Статическое давление: 2,2 мм водяного столба Уровень шума: до 22,5 дБа Тип подшипника: Гидродинамический Управление скоростью: Постоянная скорость вращения Длина кабеля: 400 мм Напряжение питания: 12 В DC Тип подключения: 3-pin Потребляемая мощность: 0,08 А

Description

Pressure-optimised fans P12, 3-pin, 120mm, lack, 5 pcsrFeatures:uOptimised for static pressure.uDuring the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees etremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitale for use on heatsinks and radiators.uHigh quality earing.u Thanks to an alloyluricant comination developed in Germany, friction within the earing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less earing noise, which means you can enjoy a longer service life from your fan.uStrong cooling performanceu. Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticealy increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors ehind.uLong service life.u Ecellent results of long-term testing, even in particularly unfavorale conditions, ensure that these products are characterized not only y quality, ut also y duraility. Therefore, P12 fans are covered y a 6-year manufacturer's warranty.uTwo ways installation.uPush warm air out of the case. Pull cool air into your case.rSpecifications:Fan speed: 1800 RPM.Air flow: 56.3 CFM 95.7 m3h.Noise level: 0.3 Sone.Current voltage: 0.16 A 12 V DC.Connection: 3-pin connector.Cale length: 00 mm.Size: 12012025 mm.Weight: 139 g.rWarranty: 6 years.

Products specifications

1
Details 2
Details 3
Details 4

Producer	Case cooler 120 mm.

Suitable location	Computer case
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Rotational speed (max)	1800 RPM
Noise level	0.3 sone
Maximum airflow	56.3 cfm
Airflow	95.65 m³/h
Bearing type	Fluid Dynamic Bearing (FDB)
Product colour	Black
Number of fans	1 fan(s)
Number of fan blades	5
Fan connector	3-pin
Voltage	12 V
Starting voltage	2.8 V
Rated current	0.2 A
Width	120 mm
Depth	120 mm
Height	25 mm
Weight	139 g
Cable length	0.4 m
Package width	130 mm
Package depth	127 mm
Package height	123 mm
Package weight	800 g
Package type	Box
Screws included	Yes
Number of screws	20
Country of origin	China
Harmonized System (HS) code	84733080
Description
Description	ARCTIC P12 - Pressure-optimised 120 mm Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Maximum airflow: 56.3 cfm, Airflow: 95.65 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black

Weight	0.5
Gross weight	0.6
Description
	The ARCTIC P12 fan (model ACFAN00135A) is a set of five 120 mm fans optimized for static pressure, making them ideal for use on heatsinks and radiators. Technical Specifications: Dimensions: 120 x 120 x 25 mm Rotation Speed: up to 1800 RPM Airflow: up to 56.3 CFM (95.6 m³/h) Static Pressure: 2.2 mm H₂O Noise Level: up to 22.5 dBa Bearing Type: Fluid Dynamic Bearing Speed Control: Fixed rotation speed Cable Length: 400 mm Operating Voltage: 12 V DC Connector Type: 3-pin Power Consumption: 0.08 A
	ARCTIC P12 ventilators (modelis ACFAN00135A) ir komplekts no pieciem 120 mm ventilatoriem, kas optimizēti statiskajam spiedienam, padarot tos ideāli piemērotus lietošanai uz radiatoriem un radiatoriem. Tehniskās specifikācijas: Izmēri: 120 x 120 x 25 mm Griešanās ātrums: līdz 1800 apgr./min Gaisa plūsma: līdz 56,3 CFM (95,6 m³/h) Statiskā spiediena: 2,2 mm ūdens kolonna Troksnis līmenis: līdz 22,5 dBa Gultņa tips: Hidrodinamiskais Ātruma kontrole: Pastāvīga griešanās ātruma Kabeļa garums: 400 mm Barošanas spriegums: 12 V DC Savienojuma tips: 3-pin Patērētā jauda: 0,08 A
	Вентилятор ARCTIC P12 (модель ACFAN00135A) представляет собой комплект из пяти 120-мм вентиляторов, оптимизированных для статического давления, что делает их идеальными для использования на радиаторах и радиаторах. Технические характеристики: Размеры: 120 x 120 x 25 мм Скорость вращения: до 1800 об/мин Воздушный поток: до 56,3 CFM (95,6 м³/ч) Статическое давление: 2,2 мм водяного столба Уровень шума: до 22,5 дБа Тип подшипника: Гидродинамический Управление скоростью: Постоянная скорость вращения Длина кабеля: 400 мм Напряжение питания: 12 В DC Тип подключения: 3-pin Потребляемая мощность: 0,08 А

Description
