| manufacturer | ATEN |
| product group | 19"-/10"-Equipment rack |
| product type | KVM-Switch, VGA |
| colour | black |
| weight | 12.59 |
| height of packaging (single piece) | 150 |
| width of packaging (single piece) | 700 |
| depth of packaging (single piece) | 800 |
| package weight (single piece) | 15.88 |
| gross weight | 15.88 |
| scope of delivery | 1x CL1308 LCD KVM Switch with Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions |
| height | 4.4 |
| width | 68.92 |
| depth | 48.3 |
| mains connection | Protective contact plug, Type-E/F |
| 19" shelves required for mounting | 2 |
| required mounting height | 1 U |
| monitor size of integrated console | 19" (48 cm) |
| keyboard layout | UK |
| Description |

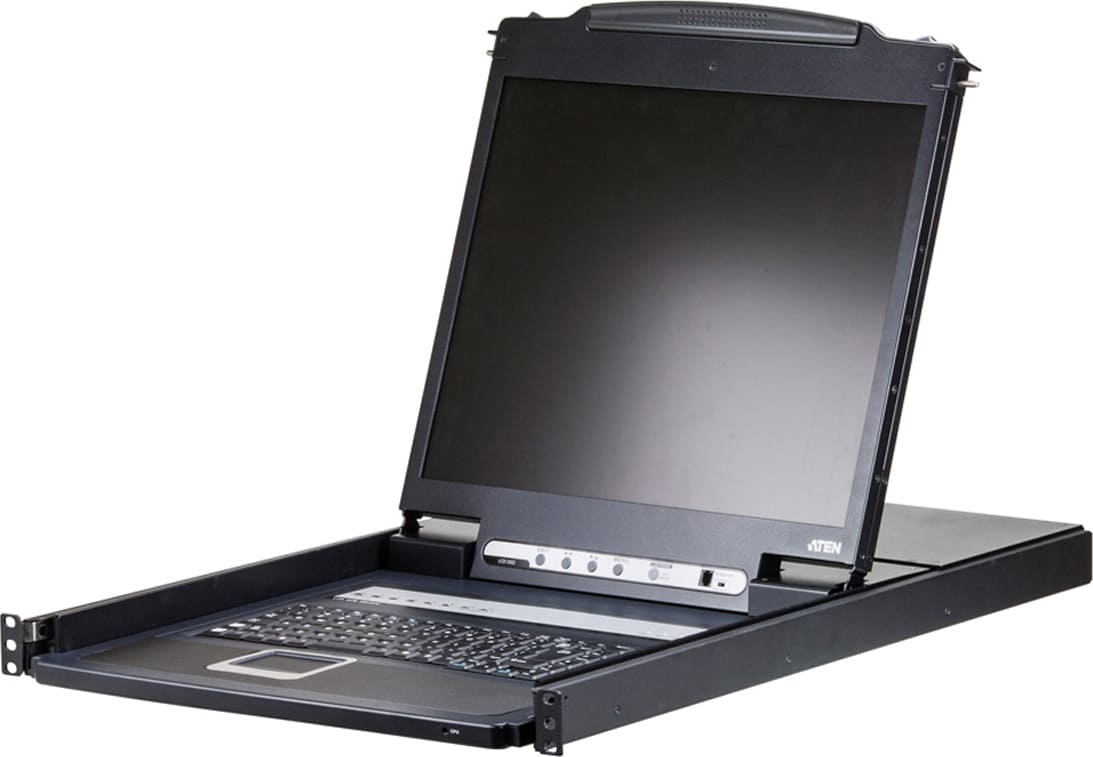

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
- Integrated KVM console with 19" LED-backlit LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
|
|
