    • Aten CS18208 KVM switch Black
    Manufacturer: ATEN

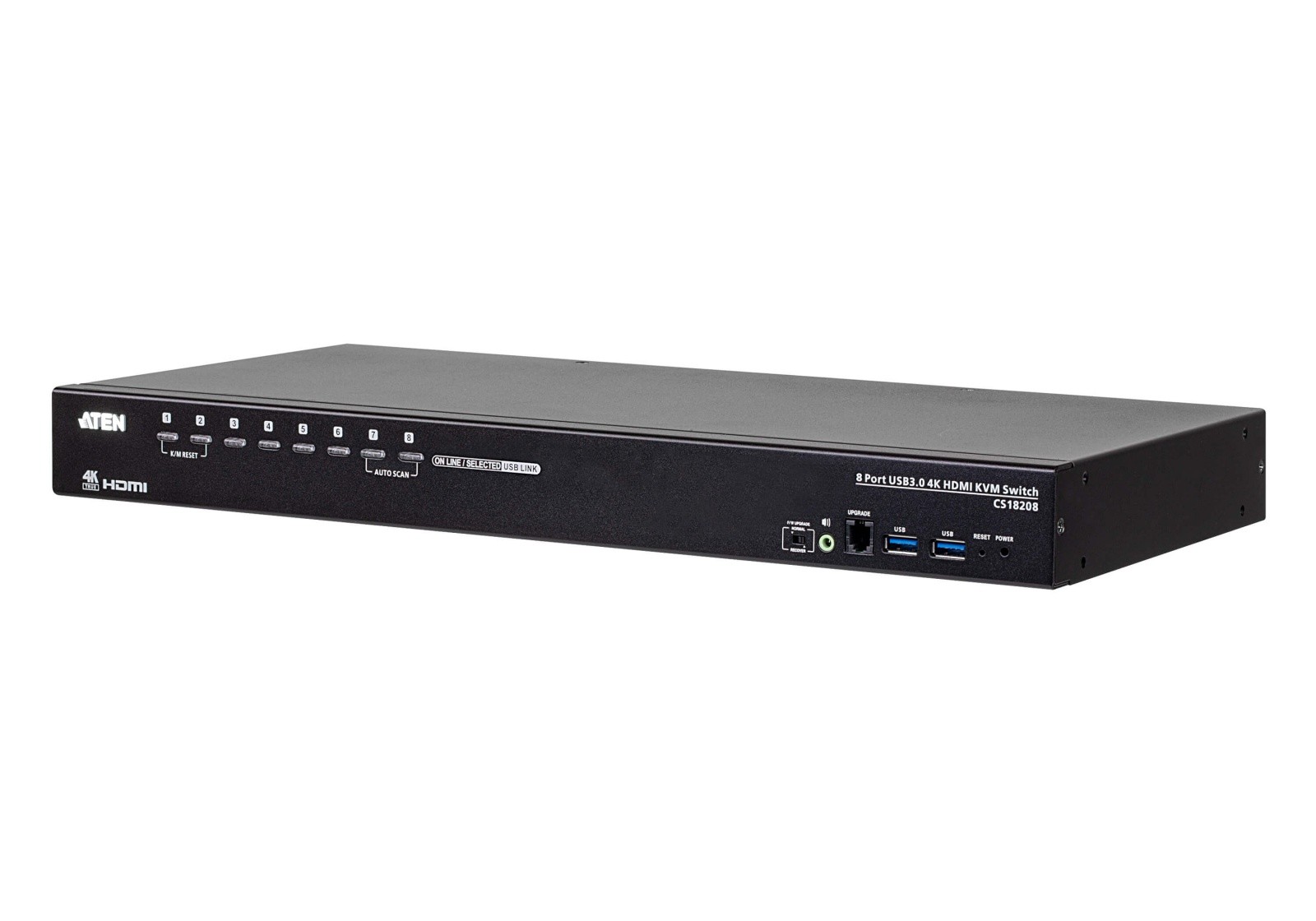

    Aten CS18208 KVM switch Black


    €1023.61 incl tax

    SKU: ST04863567
    Manufacturer part number: CS18208
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    Number of computers controlled8
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
    HDMI ports quantity9
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity8
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    Audio connectionsYes
    Headphone outputs9
    Number of microphone inputs9
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval255 s
    Auto scan delay (max)255 s
    Rack mountingNo
    Product colourBlack
    Housing materialMetal
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    On Screen Display (OSD)Yes
    Power sourceDC
    Power consumption (typical)9.77 W
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width214.3 mm
    Depth432.4 mm
    Height44 mm
    Weight3.11 kg
    Cables includedAudio (3.5mm), HDMI, USB
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS18208. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Power consumption (typical): 9.77 W. Width: 214.3 mm, Depth: 432.4 mm, Height: 44 mm
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, HDMI
    colourblack
    weight3.11 kg
    height of packaging (single piece)170 mm
    width of packaging (single piece)340 mm
    depth of packaging (single piece)510 mm
    package weight (single piece)4.86 kg
    gross weight4.86
    current catalog edition24.1
    current catalog page3.07
    scope of delivery1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch mit Rackmont...
    height44 mm
    width214.3 mm
    depth432.4 mm
    dimensions (hxwxd)44 x 214,3 x 432,4 mm
    material (casing)Metall
    quantity of pcs8
    supported pc-systemsUSB 3.0
    pc: monitor connection8x HDMI BU
    pc: mouse/keyboard connection8x USB3.1 Gen1 Typ B
    print button on deviceja
    integrated hubja
    19" compatiblenein
    cascadableja
    max. resolution (nominal)4096 x 2160 @ 60Hz
    colour (design profile)schwarz
    power supply unit requiredja
    analogue console: monitor connection1x HDMI BU
    analogue console: mouse/keyboard connection2x USB Typ A
    quantity of usb-hub ports2
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runentfällt
    switching over osdnein
    mains connectionGerät-Eurostecker, Typ-C
    Description

    Products specifications
    Number of computers controlled8
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
    HDMI ports quantity9
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity8
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    Audio connectionsYes
    Headphone outputs9
    Number of microphone inputs9
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval255 s
    Auto scan delay (max)255 s
    Rack mountingNo
    Product colourBlack
    Housing materialMetal
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    On Screen Display (OSD)Yes
    Power sourceDC
    Power consumption (typical)9.77 W
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width214.3 mm
    Depth432.4 mm
    Height44 mm
    Weight3.11 kg
    Cables includedAudio (3.5mm), HDMI, USB
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS18208. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Power consumption (typical): 9.77 W. Width: 214.3 mm, Depth: 432.4 mm, Height: 44 mm
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, HDMI
    colourblack
    weight3.11 kg
    height of packaging (single piece)170 mm
    width of packaging (single piece)340 mm
    depth of packaging (single piece)510 mm
    package weight (single piece)4.86 kg
    gross weight4.86
    current catalog edition24.1
    current catalog page3.07
    scope of delivery1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch mit Rackmont...
    height44 mm
    width214.3 mm
    depth432.4 mm
    dimensions (hxwxd)44 x 214,3 x 432,4 mm
    material (casing)Metall
    quantity of pcs8
    supported pc-systemsUSB 3.0
    pc: monitor connection8x HDMI BU
    pc: mouse/keyboard connection8x USB3.1 Gen1 Typ B
    print button on deviceja
    integrated hubja
    19" compatiblenein
    cascadableja
    max. resolution (nominal)4096 x 2160 @ 60Hz
    colour (design profile)schwarz
    power supply unit requiredja
    analogue console: monitor connection1x HDMI BU
    analogue console: mouse/keyboard connection2x USB Typ A
    quantity of usb-hub ports2
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runentfällt
    switching over osdnein
    mains connectionGerät-Eurostecker, Typ-C
    Description
