Manufacturer: ATEN

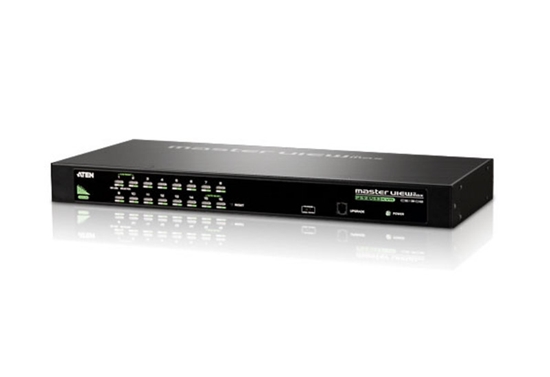

Aten 16-Port USB - PS/2 VGA KVM Switch

€417.91 incl tax

SKU: ST00806523

Manufacturer part number: CS1316-AT-G

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	1	€417.91 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

RJ-45 port	16
Properties	USB

Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Hot-Plug support	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cascadable	Yes
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
On Screen Display (OSD)	Yes
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	6.5 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	437.2 mm
Depth	161.3 mm
Height	44 mm
Weight	2.5 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.87 kg
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Master (outer) case net weight	7.5 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	9.27 kg
Products per master (outer) case	3 pc(s)
Description
Description	ATEN 16-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 6.5 W. Width: 437.2 mm, Depth: 161.3 mm, Height: 44 mm

Gross depth (mm)	437.2
Gross height (mm)	44
Gross weight	2.41
Gross width (mm)	161.3
Net weight	2.1
Packing quantity	1.00
Paper/Pasteboard	310.00
Tare weight (kg)	0.31
Volume (m3)	0.00310289584
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Connector 1	1 x SPHD-18 Male
Connector 2	16 x SPHD-15 Female
Temperature range (T-T)	0-50˚C
Material	Metal
Other features	One USB-PS/2 console controls 16 computers; Cascade up to 2 levels - control up to 256 computers. Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu. Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Gross depth master carton	565
Gross width master carton	387
Gross height master carton	260
Net weight master carton	8.022
Tare weight master carton	0.966
Producer product name	CS1316
Producer product family	16-Port PS/2-USB VGA KVM Switch
Palette Qty	118
Producer	Aten
Warranty	24

Products specifications

1
Details 2
Details 3

RJ-45 port	16
Properties	USB

Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Hot-Plug support	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cascadable	Yes
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
On Screen Display (OSD)	Yes
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	6.5 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	437.2 mm
Depth	161.3 mm
Height	44 mm
Weight	2.5 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.87 kg
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Master (outer) case net weight	7.5 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	9.27 kg
Products per master (outer) case	3 pc(s)
Description
Description	ATEN 16-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 6.5 W. Width: 437.2 mm, Depth: 161.3 mm, Height: 44 mm

Gross depth (mm)	437.2
Gross height (mm)	44
Gross weight	2.41
Gross width (mm)	161.3
Net weight	2.1
Packing quantity	1.00
Paper/Pasteboard	310.00
Tare weight (kg)	0.31
Volume (m3)	0.00310289584
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Connector 1	1 x SPHD-18 Male
Connector 2	16 x SPHD-15 Female
Temperature range (T-T)	0-50˚C
Material	Metal
Other features	One USB-PS/2 console controls 16 computers; Cascade up to 2 levels - control up to 256 computers. Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu. Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Gross depth master carton	565
Gross width master carton	387
Gross height master carton	260
Net weight master carton	8.022
Tare weight master carton	0.966
Producer product name	CS1316
Producer product family	16-Port PS/2-USB VGA KVM Switch
Palette Qty	118
Producer	Aten
Warranty	24
