| Drilling | Yes |
| Screwdriving | Yes |
| Hammer drilling | Yes |
| Product design | Pistol grip drill |
| Adjustable speed | Yes |
| Adjustable torque | Yes |
| Built-in light | Yes |
| Reverse | Yes |
| Motor type | Brushless |
| Hangable | Yes |
| Chuck capacity (max) | 1.3 cm |
| Idle speed (max) | 1900 RPM |
| Drilling diameter in wood (max) | 3.5 cm |
| Drilling diameter in steel (max) | 1 cm |
| Drilling diameter in concrete (max) | 1 cm |
| Chuck capacity (min) | 1.5 mm |
| Idle speed (min) | 500 RPM |
| Impact rate (low speed) | 27000 bpm |
| Torque settings | 20 |
| Torque (min) | 21 N⋅m |
| Torque (max) | 45 N⋅m |
| Screw diameter (max) | 8 mm |
| Sound power level | 97 dB |
| Sound pressure level | 86 dB |
| Sound level uncertainty | 5 dB |
| Vibration level (concrete drilling) | 12.2 m/s² |
| Vibration level uncertainty (concrete drilling) | 1.5 m/s² |
| Vibration level (metal drilling) | 2.5 m/s² |
| Vibration level uncertainty (metal drilling) | 1.5 m/s² |
| Power source | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2 Ah |
| Battery voltage | 18 V |
| Product colour | Black, Blue, Red |
| Weight | 1 kg |
| Width | 73 mm |
| Depth | 174 mm |
| Height | 203 mm |
| Package width | 451 mm |
| Package depth | 385 mm |
| Package height | 114 mm |
| Description |

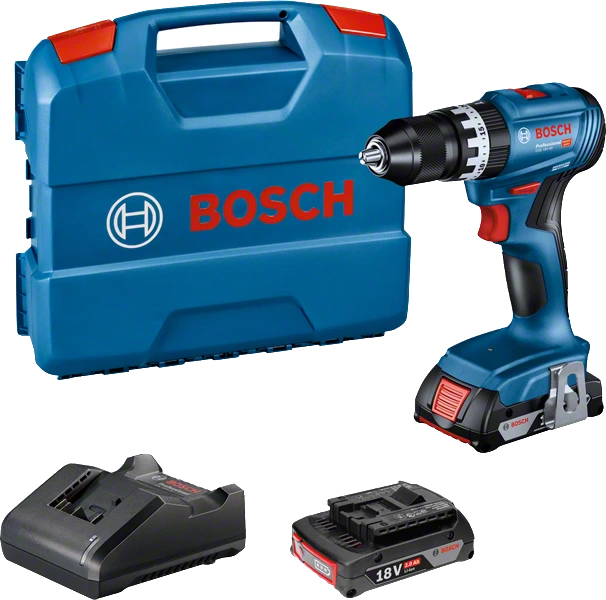

| Bosch 0 601 9K3 302. Product design: Pistol grip drill, Motor type: Brushless. Chuck capacity (max): 1.3 cm, Idle speed (max): 1900 RPM, Drilling diameter in wood (max): 3.5 cm. Power source: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2 Ah. Weight: 1 kg, Width: 73 mm, Depth: 174 mm |
