    PrevAten CS1308 KVM switch Rack...
    NextATEN CS1708I KVM switch Bla...
    Manufacturer: ATEN

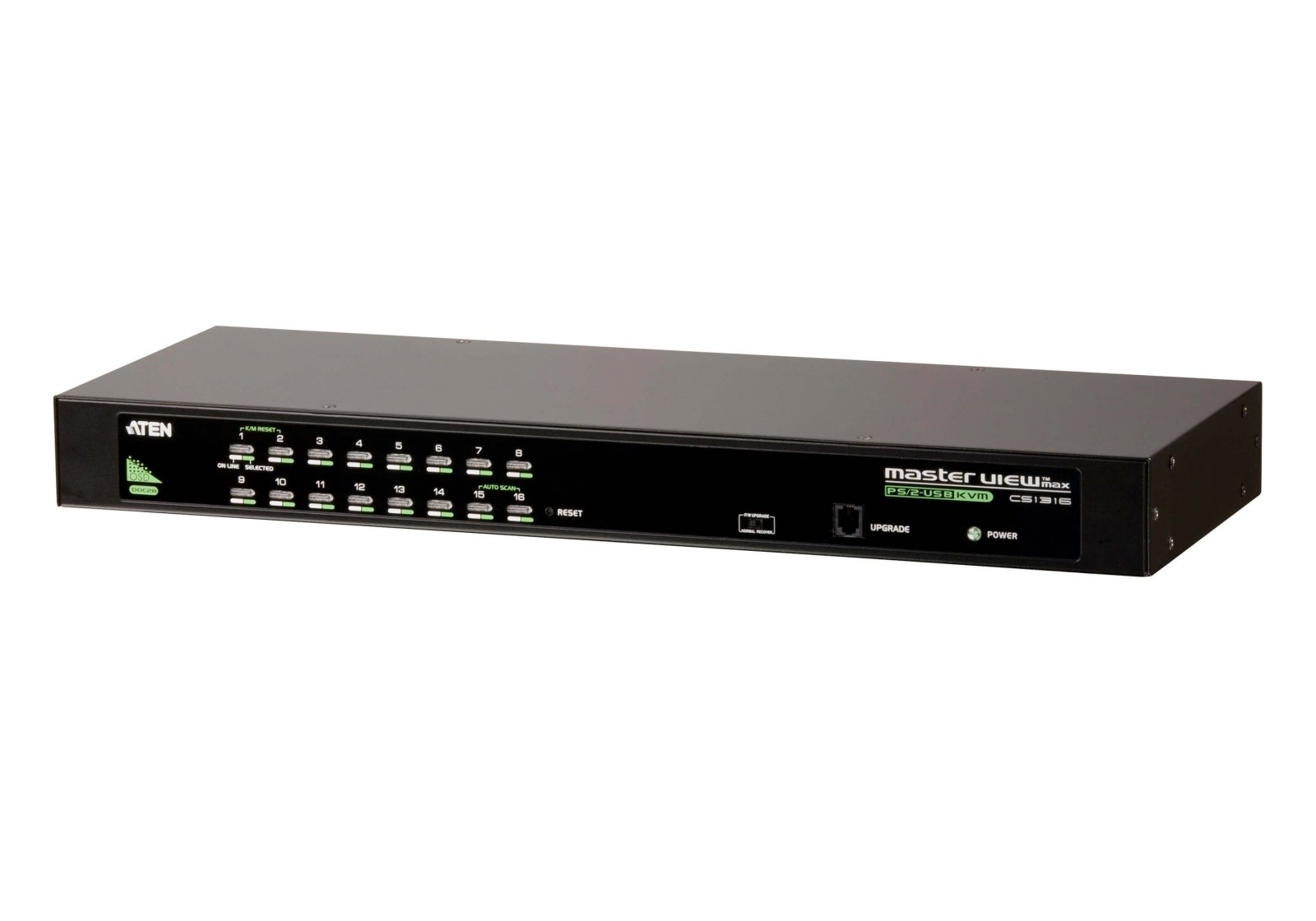

    ATEN CS1316 KVM switch Rack mounting Black


    €241.92 incl tax

    SKU: ST04057247
    Manufacturer part number: CS1316
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties USB
    No. of devices (max)256
    Hot SwapNo
    Console Ports1 x RJ-11 Female
    Console Ports1 x SPHD-18pin Male
    Console Ports16 x SPHD Female
    Resolution2048 x 1536 (QXGA)
    Accessories included
    • Zestaw do montażu w stelażu
    • Przewód konsoli
    • Przewód do uaktualniania oprogramowania sprzętowego
    • Podkładki pod urządzenie x4
    • Zasilacz
    • Zestaw do montażu
    • Instrukcja obsługi
    Dimensions

    43.72 x 16.13 x 4.40 cm
    Weight2.1 (kilogram)
    Other features

    Odstęp czasu skanowania: 1-255 sek.
    DesignationCE+WEEE
    Width240
    Height540
    Depth110
    Weight2780
    Description

    ATEN CS1316
    16-portowy przełącznik KVM PS/2-USB

    Przełącznik KVM CS1316 ze zdalnym dostępem zapewnia monitorowanie i kontrolowanie do 256 komputerów z jednej konsoli KVM (klawiatura, grafika, mysz). Istnieje możliwość kaskadowego połączenia do 16 kolejnych przełączników to daje łącznie 256 komputerów, które można kontrolować z jednej konsoli obejmującej klawiaturę, monitor i mysz. Przełącznik obsługuje połączenia USB i PS/2 (zarówno od strony konsoli, jak i komputerów).
    Number of computers controlled256
    Keyboard port typeUSB, PS/2
    Mouse port typeUSB, PS/2
    Video port typeVGA
    Console portsVGA (D-Sub)
    Maximum resolution2048 x 1536 pixels
    Scan interval1,255 s
    DDC2B supportYes
    Hot-Plug supportYes
    Firmware upgradeableYes
    Rack mountingYes
    Product colourBlack
    Rack capacity1U
    Housing materialMetal
    CascadableYes
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    On Screen Display (OSD)Yes
    Power sourceDC
    DC input voltage5.3 V
    Power consumption (typical)6.6 W
    Windows operating systems supportedWindows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Other operating systems supportedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width437.2 mm
    Depth161.3 mm
    Height44 mm
    Weight2.1 kg
    Cables includedKVM
    Quick installation guideYes
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS1316. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 6.6 W. Windows operating systems supported: Windows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional,...
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, VGA
    colourblack
    weight2.1 kg
    height of packaging (single piece)240 mm
    width of packaging (single piece)130 mm
    depth of packaging (single piece)550 mm
    package weight (single piece)2.825 kg
    gross weight2.825
    current catalog edition24.1
    current catalog page3.12
    technical particularityLED-Anzeige für Port-Status
    scope of delivery1x KVM-Switch CS1316 mit Rack-Montagekit, 1x LIN5-27X6-U2...
    height44 mm
    width430 mm
    depth160 mm
    dimensions (hxwxd)44 x430x160 mm
    material (casing)Metall
    quantity of pcs16
    supported pc-systemsPS/2 und USB
    print button on deviceja
    switching over hot keysTastatur
    integrated hubnein
    19" compatibleja, optional
    cascadableja
    hot plug compatiblenein
    max. resolution (nominal)2048x1536
    power supply unit requiredja
    power supply output5V DC / 2,6A
    analogue console: monitor connection1x HD 15pol. BU
    analogue console: mouse/keyboard connection2x USB Txp A
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runja
    switching over osdja
    audio switchingLautsprecher und Mikrofon
    audio switching separatelynein
    keyboard/mouse emulationja
    mains connectionGerät-Eurostecker, Typ-C
    pc: combi connection16x SPHD 15pol. BU
    Description

    Products specifications
    Properties USB
    No. of devices (max)256
    Hot SwapNo
    Console Ports1 x RJ-11 Female
    Console Ports1 x SPHD-18pin Male
    Console Ports16 x SPHD Female
    Resolution2048 x 1536 (QXGA)
    Accessories included
    • Zestaw do montażu w stelażu
    • Przewód konsoli
    • Przewód do uaktualniania oprogramowania sprzętowego
    • Podkładki pod urządzenie x4
    • Zasilacz
    • Zestaw do montażu
    • Instrukcja obsługi
    Dimensions

    43.72 x 16.13 x 4.40 cm
    Weight2.1 (kilogram)
    Other features

    Odstęp czasu skanowania: 1-255 sek.
    DesignationCE+WEEE
    Width240
    Height540
    Depth110
    Weight2780
    Description

    ATEN CS1316
    16-portowy przełącznik KVM PS/2-USB

    Przełącznik KVM CS1316 ze zdalnym dostępem zapewnia monitorowanie i kontrolowanie do 256 komputerów z jednej konsoli KVM (klawiatura, grafika, mysz). Istnieje możliwość kaskadowego połączenia do 16 kolejnych przełączników to daje łącznie 256 komputerów, które można kontrolować z jednej konsoli obejmującej klawiaturę, monitor i mysz. Przełącznik obsługuje połączenia USB i PS/2 (zarówno od strony konsoli, jak i komputerów).
    Number of computers controlled256
    Keyboard port typeUSB, PS/2
    Mouse port typeUSB, PS/2
    Video port typeVGA
    Console portsVGA (D-Sub)
    Maximum resolution2048 x 1536 pixels
    Scan interval1,255 s
    DDC2B supportYes
    Hot-Plug supportYes
    Firmware upgradeableYes
    Rack mountingYes
    Product colourBlack
    Rack capacity1U
    Housing materialMetal
    CascadableYes
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    On Screen Display (OSD)Yes
    Power sourceDC
    DC input voltage5.3 V
    Power consumption (typical)6.6 W
    Windows operating systems supportedWindows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Other operating systems supportedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width437.2 mm
    Depth161.3 mm
    Height44 mm
    Weight2.1 kg
    Cables includedKVM
    Quick installation guideYes
    ManualYes
    AC adapter includedYes
    Description
    ATEN CS1316. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 6.6 W. Windows operating systems supported: Windows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional,...
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, VGA
    colourblack
    weight2.1 kg
    height of packaging (single piece)240 mm
    width of packaging (single piece)130 mm
    depth of packaging (single piece)550 mm
    package weight (single piece)2.825 kg
    gross weight2.825
    current catalog edition24.1
    current catalog page3.12
    technical particularityLED-Anzeige für Port-Status
    scope of delivery1x KVM-Switch CS1316 mit Rack-Montagekit, 1x LIN5-27X6-U2...
    height44 mm
    width430 mm
    depth160 mm
    dimensions (hxwxd)44 x430x160 mm
    material (casing)Metall
    quantity of pcs16
    supported pc-systemsPS/2 und USB
    print button on deviceja
    switching over hot keysTastatur
    integrated hubnein
    19" compatibleja, optional
    cascadableja
    hot plug compatiblenein
    max. resolution (nominal)2048x1536
    power supply unit requiredja
    power supply output5V DC / 2,6A
    analogue console: monitor connection1x HD 15pol. BU
    analogue console: mouse/keyboard connection2x USB Txp A
    pc: connection on moulded cablesnein
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runja
    switching over osdja
    audio switchingLautsprecher und Mikrofon
    audio switching separatelynein
    keyboard/mouse emulationja
    mains connectionGerät-Eurostecker, Typ-C
    pc: combi connection16x SPHD 15pol. BU
    Description
