    • DC Isolator Switch 4P, 32A, 1200VDC
    Manufacturer: NONAME

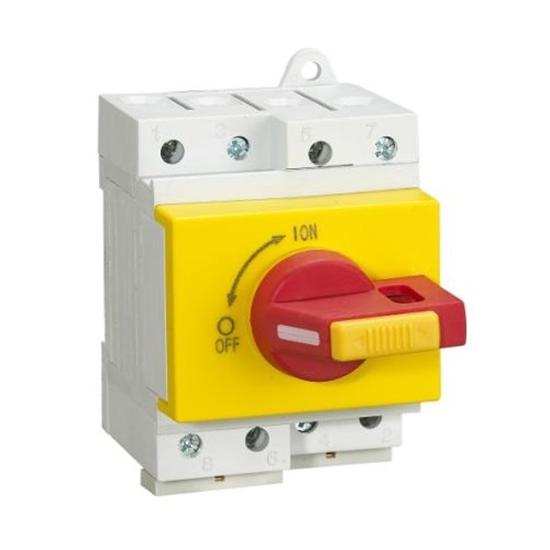

    DC Isolator Switch 4P, 32A, 1200VDC


    €25.17 incl tax

    SKU: ST10383510
    Manufacturer part number: NV821402
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    LT

    Products specifications
    Description
    DIN rail mounting DC switch up to 1200V 32A lockale handle for safe using and maintaining.Features:Applied to 1-20kW inverter, controller, DC cominer o, used for residential or commercial PV solar power system (on-gridoff-grid). Arcing time less than 3ms, that make PV solar system effectively disconnected.Reliale DC switch according to IEC6097.3 andAS6097.3 DC-PV2 standard, zero failure in millions of solar installation and DC circiut.P, 1200V, 32A.Door clutch easier operating and lockale handle.rTechnical specifications:Numer of contacts: .Rated working voltage (Ue): DC 1200V.Insulation voltage (Ui): DC 1200V.Rated current (In): 16A 25A 32A.Ma rated current: 32A.Rated impulse voltage (Uimp): 8kV.Mechanical life cycles: 20000.Electrical life cycles: 2000.Installation: on a DIN rail.Connector type: M.Wire cross-sections: ma. -16mm2.Arcing time: 3ms.Protection class: IP66 for housing, IP20 for switch.Dimensions: 989561 mm.Operating temperature: -0°C to 85°C.rWarranty: 2 months.
