Manufacturer: NONAME

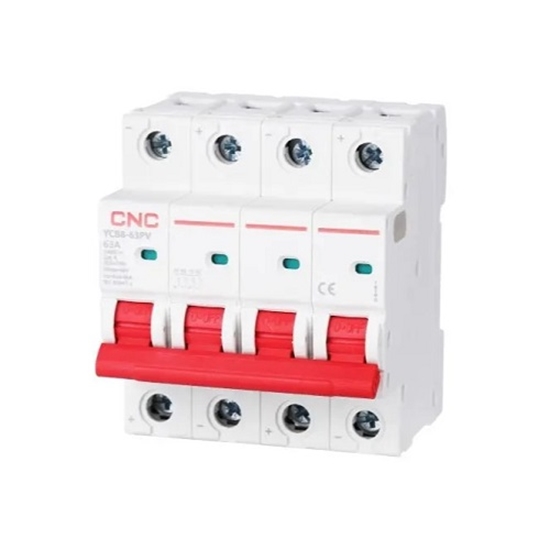

DC Miniature Circuit Breaker, 4P, 63A, Cat.A, 1000VDC, 6kA

€33.01 incl tax

SKU: ST10385015

Manufacturer part number: NV821679

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LT	2 - 4 days	5	€33.01 incl tax

Qty:

Specifications

Products specifications

Description

DC Miniature Circuit Breaker, P, 63A, Cat.A, 6kAFeatures:The rated voltage of the DC circuit reaker can reach 1000V, and the rated operating current can reach 63A.Ensures reliale operation of DC systems.Used for isolation, short circuit and overload protection.Modular construction. Installation on a standard Din rail.Contact position indication (red indicated closed, green indicates opened).Meets IECEN 6097-2 standards and EU ROHS environmental protection requirements.Suitale for photovoltaic, industrial, civil, communication and other systems.rTechnical data:Numer of poles: .Nominal current (In): 63 A.Class: A.Rated voltage (Ue): DC 1000 V.Insulation voltage (Ui): 1200 V.Ultimate reaking capacity (Icu): 6000 A.Rated impulse withstand voltage (Uimp): 000 V.Tripping type: thermomagnetic.Mechanical life: 20000 times.Electrical life: 1500 times.Safety class: IP20.Wire cross-section area: 2.5 - 25mm².Installation: on a DIN rail (35mm).Operating temperature: -35°C~+70°C.Storage temperature: -0°C~+85°C.Dimensions: 71.2 82 78 mm.Standards: IEC 6097-2 EN 6097-2.rWarranty: 2 months.
