    Manufacturer: DIGITUS

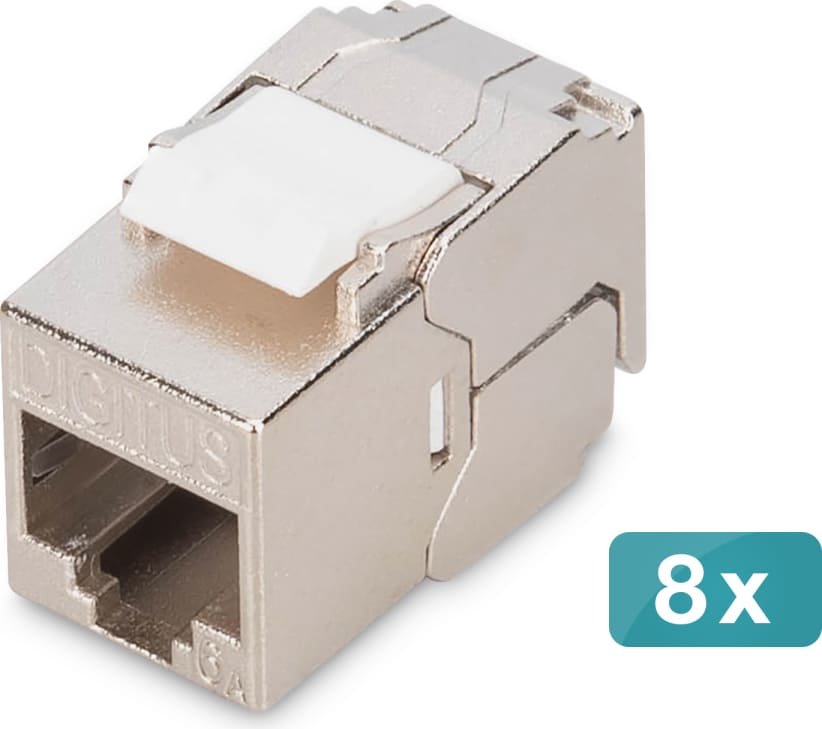

    Digitus CAT 6A compact keystone module, shielded, tool-free mounting connection. 8 pcs.


    €37.67 incl tax

    SKU: ST09728073
    Manufacturer part number: DN-93615-S-8
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties RJ-45
    height0.000
    width0.000
    depth0.000
    width(cm)12
    length(cm)3
    height(cm)15
    weight(kg)0.17
    volume(cm3)540
    country of originCN
    Description
    CAT 6A compact body Keystone module, shielded, tool free connection, 8 pcs.

    Quick and easy installation without special tools

    360° shield contacting
    Suitable for field assembly (tool-free installation)
    Design-compatible - suitable for mounting in distribution panels and junction boxes
    CAT 6A with LSA insulation displacement connectors
    Dust protection cap for RJ45 socket
    Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

    The shielded CAT 6A short keystone module DN-93615-S-8 from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

    Category: CAT 6A
    Category 6A 10GBase-T, 500 MHz
    ISO/IEC 11801 3rd Edition, EN 50173-1
    Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
    Suitable for distribution panel and junction box installation
    RJ45 socket, 8P8C
    Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B
    Strain relief and cable fixing using cable ties
    Tool-free mounting connection
    360° shield contacting
    Housing material: Zinc die-cast - nickel-plated
    Contact material: Phosphor bronze
    Coating Contacts: Nickel, gold-plated 0.5 u
    Insertion force: Max. 30N (according to IEC 60603-7-51)
    Holding force: 7.7 kg between socket and plug
    Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
    Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-51)
    Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
    Tested with AWG 22/1 solid installation cable
    (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
    Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
    Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
    Intelligent cable manager (reclosable)
