Manufacturer: DIGITUS

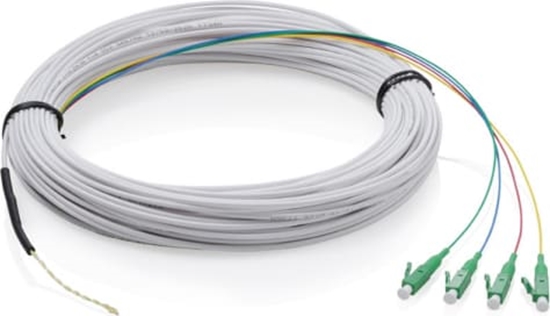

Digitus FTTH drop cable, singlemode, 4 fibers, 4 LC/APC, 30 m

€29.34 incl tax

SKU: ST10348112

Manufacturer part number: DK-3904LCA-30-1

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	350	€29.34 incl tax

Qty:

Specifications

Products specifications

width(cm)

length(cm)

5.5

height(cm)

25.5

weight(kg)

0.88125

volume(cm3)

3506.25

country of origin

Description

FTTH-Drop Cable, Singlemode, 4 fiber, LC/APC 2,4 mm, G.657.A2, 30m

High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.

Significantly reduces installation time
Pre-assembled with LC/APC connectors on one side
The open end can simply be pulled in or connected to the house distributor
G.657A2 bend-optimized
Sturdy pull-in loop for pulling the cable into trunking systems

The growing demand for the extension of fiber optic networks into the home requires products that enable simple and efficient installation to implement the network. The Digitus cable offers the possibility of easily extending and completing the fiber optic network in the home. The cable is designed for use as a connecting cable between the building distributor and the floor distributor or subscriber termination point at network level 4. The simple installation results from the fact that the cable is pre-assembled on the subscriber side and open with LC/APC connectors; it can then be installed through a duct to the distributor, which serves as the entry point for the fiber optic network in the building.

Application: universal
Cable diameter: 2 mm
Cable jacket: LSOH
Color cable: white
Connector 1: LC (APC)
Fiber class: OS2
Fiber diameter: 9/125µ
Mode: Singlemode
Number of fibers: 4
Polishing: APC
Length: 30 m
Fiber type : Singlemode 9/125
Category : G657A2
Cable length : 30 m
Number of fibers : 4
Fiber colors : blue, green, yellow, red
Connector type : LC/APC
Coat color : White
Sheath material : LSZH
Stranding element : Kevlar yarn
Cable structure : Dca
Cable diameter : 2,4mm
Diameter of the pulling aid : 7-8cm (length)
Min. Bending radius of the cable : 10D/20D
Tensile strength : 400 N
Compressive strength : 1000 N
Insertion loss of the plug : <=0.3 dB
Return loss of the plug : >=60 dB
Storage temperature : -40 to +80 °C
Working temperature : -20~+70
Cable weight : 0,37kg

Package content:
1 x FTTH cable, singlemode, 4 fibers, 4 x LC/APC, 30 m
