    Manufacturer: EATON

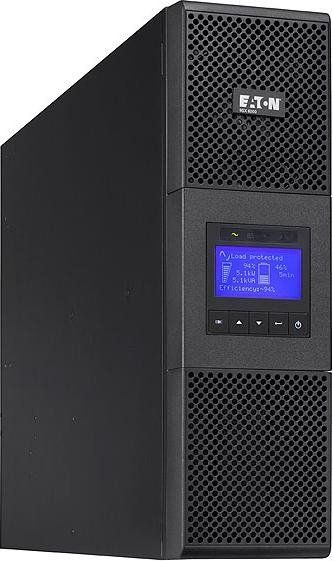

    Eaton 9SX 8000i uninterruptible power supply (UPS) 8 kVA 7200 W


    €6022.73 incl tax

    SKU: ST00620015
    Manufacturer part number: 9SX8Ki
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    UPS voltage regulators 7000
    Output power capacity8 kVA
    Output power7200 W
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency50/60 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)250 V
    Efficiency98%
    Crest factor3:1
    Output voltage Total Harmonic Distortion (THD)2%
    Input current Total Harmonic Distortion (THD)5%
    Noise level48 dB
    USB 2.0 ports quantity1
    RS-232 ports1
    Form factorRackmount/Tower
    Product colourBlack
    Display typeLCD
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 CE, CB (TUV), UL
    Operating temperature (T-T)0 - 40 °C
    Width260 mm
    Depth700 mm
    Height440 mm
    Weight84 kg
    Nominal output voltage200-250 V
    Nominal input voltage200-250 V
    Description
    Eaton 9SX 8000i. Output power capacity: 8 kVA, Output power: 7200 W, Input operation voltage (min): 176 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 260 mm, Depth: 700 mm, Height: 440 mm. Nominal output voltage: 200-250 V, Nominal input voltage: 200-250 V
    manufacturerEaton
    product groupUSV
    product typeUPS Online, Rackmount
    colourblack
    weight77 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)90 kg
    gross weight90
    current catalog edition24.1
    technical particularityAls Stand oder 19" Rackgerät einsetzbar
    scope of deliveryUSV, Software, Kabelsatz
    height0.000
    width0.000
    depth0.000
    operating temperature min.0 °C
    operating temperature max.40 °C
    dimensions (hxwxd)440 x 700 x 260 mm 6 HE
    interfaceRS232, USB
    mounting formTower
    rs-232 interfaceja
    usb 2.0 interfaceja
    conformityIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC ...
    activityDisplay
    acoustic level<45 dB
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)8000/7200
    backup time full/half-load4,5 / 15,5 min
    voltage (input)190-270 V AC
    voltage (output)230V AC
    frequency50 Hz
    connector type (input)Fest verdrahtet
    connector type (output)Fest verdrahtet+ (2) C19, (8) C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter cardMS-Slot
    activity display6 sprachig (D, GB, SP, F, I, P)
    incl.management softwareWindows, MAC OS
    internal coolingAktiv, Lüfter
    ambient temperature0°C bis +40°C; Batterien 20 - 25°C nach EUROBAT
    output voltage regulation+- 5 %
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    activity led4
    efficiency95%
    delay expansion unit11
    slots for adapter card1
    Description

    Products specifications
    UPS voltage regulators 7000
    Output power capacity8 kVA
    Output power7200 W
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency50/60 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)250 V
    Efficiency98%
    Crest factor3:1
    Output voltage Total Harmonic Distortion (THD)2%
    Input current Total Harmonic Distortion (THD)5%
    Noise level48 dB
    USB 2.0 ports quantity1
    RS-232 ports1
    Form factorRackmount/Tower
    Product colourBlack
    Display typeLCD
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 CE, CB (TUV), UL
    Operating temperature (T-T)0 - 40 °C
    Width260 mm
    Depth700 mm
    Height440 mm
    Weight84 kg
    Nominal output voltage200-250 V
    Nominal input voltage200-250 V
    Description
    Eaton 9SX 8000i. Output power capacity: 8 kVA, Output power: 7200 W, Input operation voltage (min): 176 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 260 mm, Depth: 700 mm, Height: 440 mm. Nominal output voltage: 200-250 V, Nominal input voltage: 200-250 V
    manufacturerEaton
    product groupUSV
    product typeUPS Online, Rackmount
    colourblack
    weight77 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)90 kg
    gross weight90
    current catalog edition24.1
    technical particularityAls Stand oder 19" Rackgerät einsetzbar
    scope of deliveryUSV, Software, Kabelsatz
    height0.000
    width0.000
    depth0.000
    operating temperature min.0 °C
    operating temperature max.40 °C
    dimensions (hxwxd)440 x 700 x 260 mm 6 HE
    interfaceRS232, USB
    mounting formTower
    rs-232 interfaceja
    usb 2.0 interfaceja
    conformityIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC ...
    activityDisplay
    acoustic level<45 dB
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)8000/7200
    backup time full/half-load4,5 / 15,5 min
    voltage (input)190-270 V AC
    voltage (output)230V AC
    frequency50 Hz
    connector type (input)Fest verdrahtet
    connector type (output)Fest verdrahtet+ (2) C19, (8) C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter cardMS-Slot
    activity display6 sprachig (D, GB, SP, F, I, P)
    incl.management softwareWindows, MAC OS
    internal coolingAktiv, Lüfter
    ambient temperature0°C bis +40°C; Batterien 20 - 25°C nach EUROBAT
    output voltage regulation+- 5 %
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    activity led4
    efficiency95%
    delay expansion unit11
    slots for adapter card1
    Description
