| manufacturer | EXSYS |
| product group | Cable |
| product type | USB4 Cable |
| colour | black |
| connection ports | USB Type C (USB-C) Male / USB Type C (USB-C) Male |
| side 1 connector type | USB Type C (USB-C) |
| side 1 connector gender | Male |
| side 2 connector type | USB Type C (USB-C) |
| side 2 connector gender | Male |
| area of application | External |
| cable shielding | Screened |
| hand locking screws | yes |
| weight | 70 g |
| height of packaging (single piece) | 0 mm |
| width of packaging (single piece) | 0 mm |
| depth of packaging (single piece) | 0 mm |
| package weight (single piece) | 0 kg |
| supported charging technology | USB-PD - USB Power Delivery |
| power (max.) | 240 W |
| transfer quality | USB4 Gen3x2 40 Gbit/s |
| maximum data transfer rate | 40 Gbit/s |
| scope of delivery | EX-K1599V-1.5 |
| max. resolution | 7680 x 4320 @60Hz (8K, UHD-2) |
| garums | 1.5 m |
| Description |

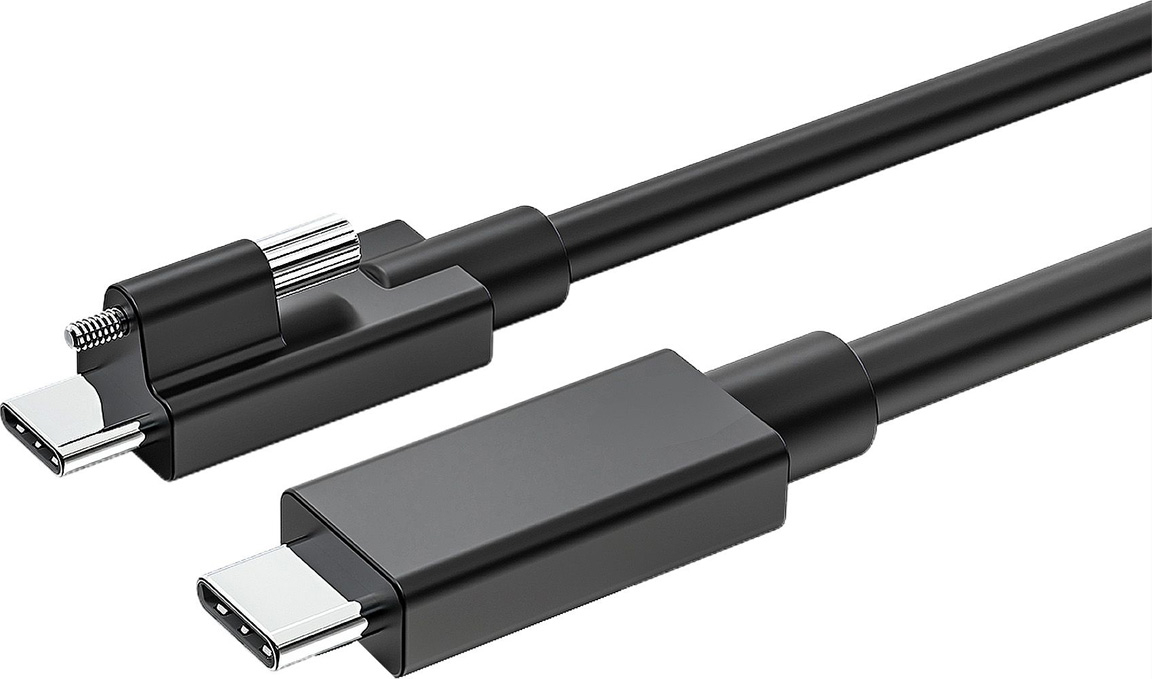

This high-quality USB-C cable is compliant with the USB 4 Gen 3x2 standard. It connects your devices reliably and quickly and supports charging of connected devices with up to 240W.- USB 4.0 Gen 3x2 connection cable
- Connections: USB-C plugs on both ends
- Backward compatible with previous USB standards
- Compatible with Thunderbolt 3
- E-marker chip optimises data transfer rate and power between host and device
- Data transfer rate: up to 40 Gbits/s (2700m/s)
- 4 channels of data transfer, 8 channels of video transfer
- Supports DisplayPort 1.2 - compatible with existing DisplayPort displays, devices and cables
- Supports 4K@120Hz (one display), 8K@60Hz (one display), 4K@60Hz (two displays)
- Supports USB-C Power Delivery (PD) 3.1 Extended Power Range (EPR) standard up to 240W
- Charging power: up to 5A / 48V, 240W
- Cable diameter: 5.8 mm
- Shielding: braided and foil shielding
- Cable with black fabric mesh
The major benefits of the USB4 includes faster transfer speeds (up to 40 Gbit/s), a better management of video bandwidth (using a process called "protocol tunneling" that sends DisplayPort, PCIe and USB packets at the same time while allocating bandwidth accordingly) and optional compatibility with Thunderbolt 3 products.
|
|
