Manufacturer: FNIRSI

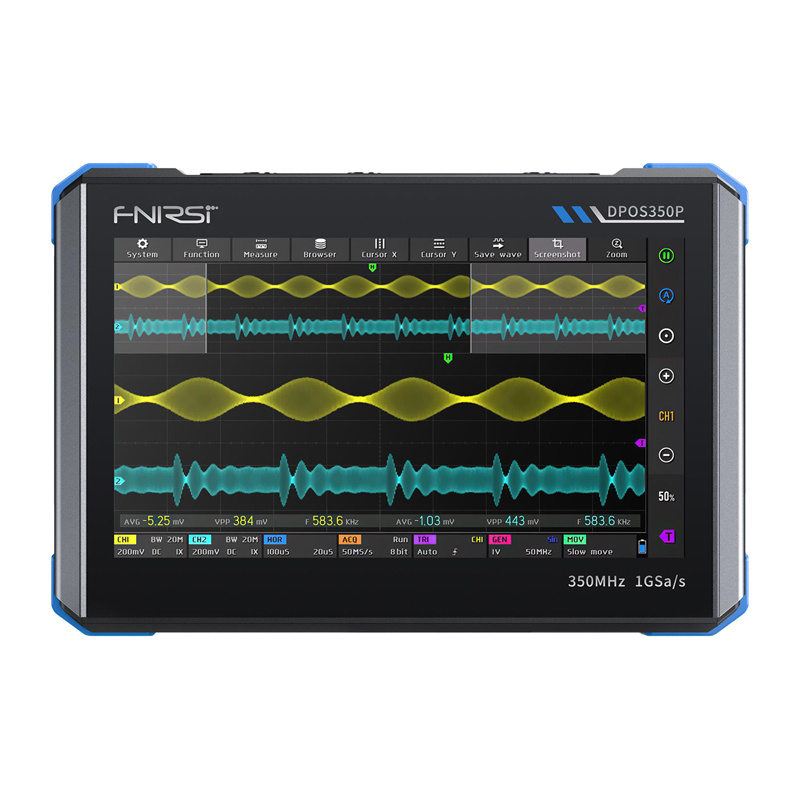

FNIRSI DPOS350P 4-in-1 digital oscilloscope

€262.82 incl tax

SKU: ST10424753

Manufacturer part number: DPOS350P

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
	6 - 12 days	27	€262.82 incl tax
PL	8 - 15 days	28	€325.25 incl tax

Qty:

Specifications

Products specifications

Details 1
Details 2

ManufacturerModelStartup configurationLanguagesScreen diagonalScreen resolutionScreen technologyInteraction modeExpansion interfaceAuto power offUpdateCharging requirementsBatteryOperating timeCharging timeTotal power consumptionCoolingDevice dimensions

Frequency response analyzer (FRA)

Excitation signal frequencyExcitation signal amplitudeExcitation signal offsetNumber of frequency pointsCursor measurementOperating modeSystem calibration

Spectrum analyzer (SA)

Conversion methodFFT lengthFrequency rangeLevel rangeCursor measurementMarking parameterWaterfall graph3D waterfall graphAuto adjustmentSystem calibration

Oscilloscope

Number of channelsBandwidthRise timeMax. sampling frequencyMemory depthInput impedanceTime base rangeTime base (roll)Vertical sensitivityVertical rangeDC accuracyTime accuracyInput couplingBackground gridWaveform shiftOvervoltage protectionWaveform brightnessFFT displayDigital fluorescenceProbe attenuationHardware bandwidth limitHigh resolution modeParameter measurementsCursor measurementTrigger detectionTrigger channelTrigger modeTrigger edgeTrigger attenuationTrigger levelScreenshot recordingWaveform recordingColor temperature displayX-Y modeTime base zoomOne-key auto adjustmentOne-key zero returnData browser

Signal generator (SG)

Waveform typesFrequencyAmplitudeOffsetDuty cycleFrequency resolutionAmplitude resolutionOffset resolutionDuty cycle resolutionStored custom waveforms

Description
Description	FNIRSI DPOS350P 4-in-1 Digital Oscilloscope The FNIRSI DPOS350P is a versatile digital oscilloscope designed for convenient and intuitive operation. It features a large 7-inch touch screen for clear signal viewing and quick access to key functions. It combines the features of an oscilloscope, signal generator, spectrum analyzer, and frequency response analyzer, making it suitable for a wide range of measurement applications. High bandwidth, fast sampling, and large memory enable precise signal analysis, while advanced visualization modes improve measurement readability. Full control over the signal The large 7-inch touch screen provides a full view of the analyzed signal and precise parameter control. The clear interface allows you to quickly understand the behavior of the system, and the high image quality makes the DPOS350P an "engineer's second pair of eyes" – indispensable for diagnostics and testing. Maximum functionality The FNIRSI DPOS350P is an advanced 4-in-1 oscilloscope that offers the functions of four different devices. It is an oscilloscope (2 channels, 350 MHz bandwidth, 1 GSa/s sampling, 8-bit resolution, 50,000 waveforms per second), signal generator (up to 50 MHz), spectrum analyzer (200 kHz – 350 MHz range), and frequency response analyzer (100 kHz – 50 MHz). Such a wide range of functions means that one device replaces several specialized tools, saving space and time. High measurement performance The DPOS350P model offers a bandwidth of 350 MHz, a sampling rate of 1 GSa/s, and a memory depth of 60 kpts, which translates into accurate signal reproduction and stable measurements even with complex waveforms. What's more, the FNIRSI DPOS350P allows Bodé chart analysis in the 100 Hz – 50 MHz range, with adjustable frequency, excitation amplitude, and offset. It is the ideal tool for testing amplifiers, filters, and power loops, allowing you to quickly and accurately assess the frequency response of a circuit. Advanced spectrum and EMI analysis The device covers a frequency range from 200 kHz to 350 MHz and allows for precise manual adjustment of key parameters (start/stop frequencies, bandwidth, reference level, attenuation, and FFT length). Cursor measurement functions and advanced visualization modes are at your disposal, including an impressive and extremely clear 3D Waterfall view. This makes the oscilloscope ideal for EMI testing, RF signal analysis, and harmonic detection. Signal visibility like never before Digital fluorescence technology provides exceptional signal clarity and precise color reproduction. In addition, advanced noise filtering improves waveform detection and presentation, enabling more accurate signal analysis. Support for 8-16-bit technology takes image clarity to the next level. Tablet design that makes work easier The slim housing in an elegant black finish with blue accents combines modern design with ergonomics. The tablet form factor allows for comfortable one-handed operation, and the touch interface makes all functions immediately accessible—without unnecessary menus and complicated navigation. This is a device that naturally adapts to the user's work rhythm. The oscilloscope supports multiple languages, including English, Chinese, Russian, and Portuguese, making it ideal for international environments. Included 350 MHz probe x2 QC18W charger USB cable Alligator clip leads User manual General
Fnirsi
DPOS350P
5 presets
Chinese / English / Russian / Portuguese
7 inches
1024 × 600 pixels
IPS, full viewing angle
Capacitive touch screen
Capacitive touch screen
15 minutes ~ 1 hour / off
Supports .iso image updates
QC18W – 12 V / 1.5 A
3.7 V lithium, 8000 mAh
approx. 3 hours
approx. 5 hours
10 W
passive (air)
190 × 128 × 37 mm
100 Hz ~ 50 MHz
0 ~ 5 Vpp
−2.5 V ~ +2.5 V
20 ~ 500
frequency / gain / phase
single / cyclic
supported
FFT
4K ~ 32K
200 kHz ~ 350 MHz
−60 dBmV ~ +260 dBmV
frequency / amplitude
maximum energy harmonic
supported
Supported
Supported
Supported
2
350 MHz
1 ns
1 GSa/s
60 kpts
1 MΩ / 14 pF
5 ns ~ 50 s
50 ms ~ 50 s
2 mV ~ 20 V (1×)
16 mV ~ 160 V (1×)
±2%
±0.01%
DC / AC
display / hide
coarse / fine adjustment
up to 400 V
adjustable
supported
supported
1× / 10× / 100×
150 MHz / 20 MHz
8 bit ~ 16 bit
12 types
time, period, frequency, level, voltage
digital
CH1 / CH2
Auto / Single / Normal
Rising / Falling
L1 ~ L3
Manual / Auto (10% ~ 90%)
90 images
500 sets
Supported
Supported
Supported
Supported
Supported
Supported
14 standard + captured waveform
0 ~ 50 MHz (sine), other waveforms up to 10 M / 5 M / 3 M
0 ~ 5 Vpp
−2.5 V ~ +2.5 V
0.1% ~ 99.9%
1 Hz
1 mV
1 mV
0.1%
500 sets

Description

FNIRSI DPOS350P 4-in-1 Digital Oscilloscope The FNIRSI DPOS350P is a versatile digital oscilloscope designed for convenient and intuitive operation. It features a large 7-inch touch screen for clear signal viewing and quick access to key functions. It combines the features of an oscilloscope, signal generator, spectrum analyzer, and frequency response analyzer, making it suitable for a wide range of measurement applications. High bandwidth, fast sampling, and large memory enable precise signal analysis, while advanced visualization modes improve measurement readability. Full control over the signal The large 7-inch touch screen provides a full view of the analyzed signal and precise parameter control. The clear interface allows you to quickly understand the behavior of the system, and the high image quality makes the DPOS350P an "engineer's second pair of eyes" – indispensable for diagnostics and testing. Maximum functionality The FNIRSI DPOS350P is an advanced 4-in-1 oscilloscope that offers the functions of four different devices. It is an oscilloscope (2 channels, 350 MHz bandwidth, 1 GSa/s sampling, 8-bit resolution, 50,000 waveforms per second), signal generator (up to 50 MHz), spectrum analyzer (200 kHz – 350 MHz range), and frequency response analyzer (100 kHz – 50 MHz). Such a wide range of functions means that one device replaces several specialized tools, saving space and time. High measurement performance The DPOS350P model offers a bandwidth of 350 MHz, a sampling rate of 1 GSa/s, and a memory depth of 60 kpts, which translates into accurate signal reproduction and stable measurements even with complex waveforms. What's more, the FNIRSI DPOS350P allows Bodé chart analysis in the 100 Hz – 50 MHz range, with adjustable frequency, excitation amplitude, and offset. It is the ideal tool for testing amplifiers, filters, and power loops, allowing you to quickly and accurately assess the frequency response of a circuit. Advanced spectrum and EMI analysis The device covers a frequency range from 200 kHz to 350 MHz and allows for precise manual adjustment of key parameters (start/stop frequencies, bandwidth, reference level, attenuation, and FFT length). Cursor measurement functions and advanced visualization modes are at your disposal, including an impressive and extremely clear 3D Waterfall view. This makes the oscilloscope ideal for EMI testing, RF signal analysis, and harmonic detection. Signal visibility like never before Digital fluorescence technology provides exceptional signal clarity and precise color reproduction. In addition, advanced noise filtering improves waveform detection and presentation, enabling more accurate signal analysis. Support for 8-16-bit technology takes image clarity to the next level. Tablet design that makes work easier The slim housing in an elegant black finish with blue accents combines modern design with ergonomics. The tablet form factor allows for comfortable one-handed operation, and the touch interface makes all functions immediately accessible—without unnecessary menus and complicated navigation. This is a device that naturally adapts to the user's work rhythm. The oscilloscope supports multiple languages, including English, Chinese, Russian, and Portuguese, making it ideal for international environments. Included 350 MHz probe x2 QC18W charger USB cable Alligator clip leads User manual General Manufacturer Fnirsi Model DPOS350P Startup configuration 5 presets Languages Chinese / English / Russian / Portuguese Screen diagonal 7 inches Screen resolution 1024 × 600 pixels Screen technology IPS, full viewing angle Interaction mode Capacitive touch screen Expansion interface Capacitive touch screen Auto power off 15 minutes ~ 1 hour / off Update Supports .iso image updates Charging requirements QC18W – 12 V / 1.5 A Battery 3.7 V lithium, 8000 mAh Operating time approx. 3 hours Charging time approx. 5 hours Total power consumption 10 W Cooling passive (air) Device dimensions 190 × 128 × 37 mm Frequency response analyzer (FRA) Excitation signal frequency 100 Hz ~ 50 MHz Excitation signal amplitude 0 ~ 5 Vpp Excitation signal offset −2.5 V ~ +2.5 V Number of frequency points 20 ~ 500 Cursor measurement frequency / gain / phase Operating mode single / cyclic System calibration supported Spectrum analyzer (SA) Conversion method FFT FFT length 4K ~ 32K Frequency range 200 kHz ~ 350 MHz Level range −60 dBmV ~ +260 dBmV Cursor measurement frequency / amplitude Marking parameter maximum energy harmonic Waterfall graph supported 3D waterfall graph Supported Auto adjustment Supported System calibration Supported Oscilloscope Number of channels 2 Bandwidth 350 MHz Rise time 1 ns Max. sampling frequency 1 GSa/s Memory depth 60 kpts Input impedance 1 MΩ / 14 pF Time base range 5 ns ~ 50 s Time base (roll) 50 ms ~ 50 s Vertical sensitivity 2 mV ~ 20 V (1×) Vertical range 16 mV ~ 160 V (1×) DC accuracy ±2% Time accuracy ±0.01% Input coupling DC / AC Background grid display / hide Waveform shift coarse / fine adjustment Overvoltage protection up to 400 V Waveform brightness adjustable FFT display supported Digital fluorescence supported Probe attenuation 1× / 10× / 100× Hardware bandwidth limit 150 MHz / 20 MHz High resolution mode 8 bit ~ 16 bit Parameter measurements 12 types Cursor measurement time, period, frequency, level, voltage Trigger detection digital Trigger channel CH1 / CH2 Trigger mode Auto / Single / Normal Trigger edge Rising / Falling Trigger attenuation L1 ~ L3 Trigger level Manual / Auto (10% ~ 90%) Screenshot recording 90 images Waveform recording 500 sets Color temperature display Supported X-Y mode Supported Time base zoom Supported One-key auto adjustment Supported One-key zero return Supported Data browser Supported Signal generator (SG) Waveform types 14 standard + captured waveform Frequency 0 ~ 50 MHz (sine), other waveforms up to 10 M / 5 M / 3 M Amplitude 0 ~ 5 Vpp Offset −2.5 V ~ +2.5 V Duty cycle 0.1% ~ 99.9% Frequency resolution 1 Hz Amplitude resolution 1 mV Offset resolution 1 mV Duty cycle resolution 0.1% Stored custom waveforms 500 sets
