    Manufacturer: HABOTEST

    Habotest Habotest HT206A Digital Clamp Meter


    €23.22 incl tax

    SKU: ST05747018
    Manufacturer part number: HT206A
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Brand Model DC voltage measurement range AC voltage measurement range DC current measurement range AC current measurement range Resistance measurement range Capacitance measurement range Frequency measurement range Duty measurement range Temperature measurement range Counts Auto/manual range Continuity Diode test Data hold NCV Backlight Flashlight DCA Zero Low Battery Indicator Auto power off True RMS LPF MAX/MIN LowZ Power supply Weight Dimensions Size of jaws Safety
    Description

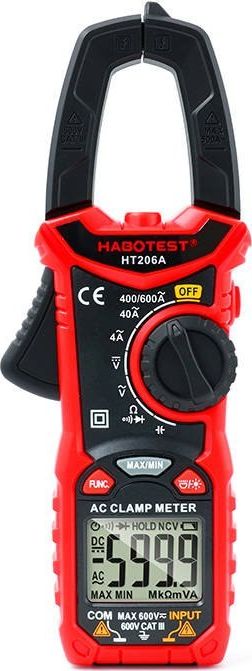

    Habotest HT206A digital clamp meter

    The functional clamp meter by Habotest guarantees precise measurement, the results of which are displayed on an easy-to-read, backlit LCD screen. The size of the jaws is up to 26mm, which allows for comfortable operation of the device. The HT206A is also equipped with a flashlight, which makes it easier to work in dark rooms.

    Measures various parameters

    With this universal meter you can check the value of many different parameters. Using the HT206A, you can measure AC voltage, AC current and resistance, among other things. But that's not all! You can also easily check continuity and true RMS.

    Clear, practical display

    The meter is equipped with an LCD display with backlight in 2 colors. You will find on it not only the measurement results, but also for example a low battery indicator. This way you can comfortably use the HT206A. What's more, the backlight will turn orange when the measured voltage exceeds 80V and the measured current exceeds 3A.

    Easy to use in all conditions

    The built-in flashlight provides bright illumination, so you can work even in dark places with ease. The operation of the device is also facilitated by intuitive buttons, with which, among other things, you can quickly and conveniently select the function, use the MAX/MIN measurement option, as well as turn the light on or off. An additional advantage of the meter is the option of storing data.

    Habotest
    HT206A HT206D
    400mV/4V/40V/400V/600V ±(0,5%+5) 600mV/6V/60V/600V ±(0,5%+5)
    4V/40V/400V/600V ±(1.0%+5) 6V/60V/600V ±(0.8%+5)
    Not applicable 60A/600A ±(2.5%+5)
    4A/40A/600A ±(2,5%+8) 60A/600A ±(2,5%+5)
    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+5) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+5)
    4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5) 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF ±(4.0%+3)
    Not applicable 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)
    Not applicable 1%-99% ±(3,0%+3)
    Not applicable -40°C-1000°C ±(1.0%+2); -40°F-1832°C ±(1.0%+2)
    4000 6000
    Auto Auto
    Yes, sound and light alarm Yes, sound and light alarm
    Yes Yes
    Yes Yes
    No Yes, audible and light alarm
    Yes Yes
    Yes Yes
    No Yes
    Yes Yes
    Yes Yes
    Yes Yes
    No Yes
    Yes Yes
    No Yes
    2x AAA 1.5V batteries (included) 2x AAA 1.5V batteries (included)
    About 260g About 260g
    193x73x34mm 193x73x34mm
    ∅26x44mm ∅26x44mm
    EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
