Manufacturer: INTELLINET NETWORK SOLUTIONS

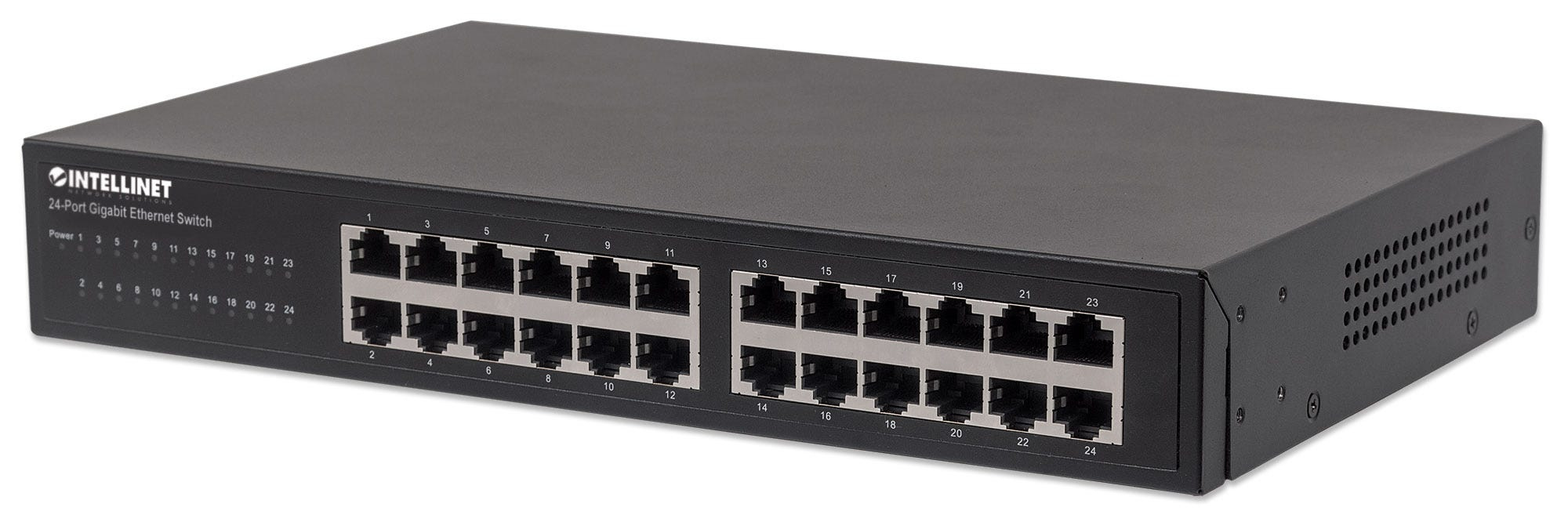

Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal (Euro 2-pin plug)

€119.58 incl tax

SKU: ST03949750

Manufacturer part number: 561273

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	13	€119.58 incl tax

Qty:

Specifications

Products specifications

Control and Provisioning of Wireless Access Points (CAPWAP)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	16384 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.512 MB
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Certification	FCC A, CE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	16 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	2.6 kg
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal (Euro 2-pin plug). Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16384 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

Products specifications

Control and Provisioning of Wireless Access Points (CAPWAP)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	16384 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.512 MB
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Certification	FCC A, CE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	16 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	2.6 kg
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal (Euro 2-pin plug). Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16384 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
