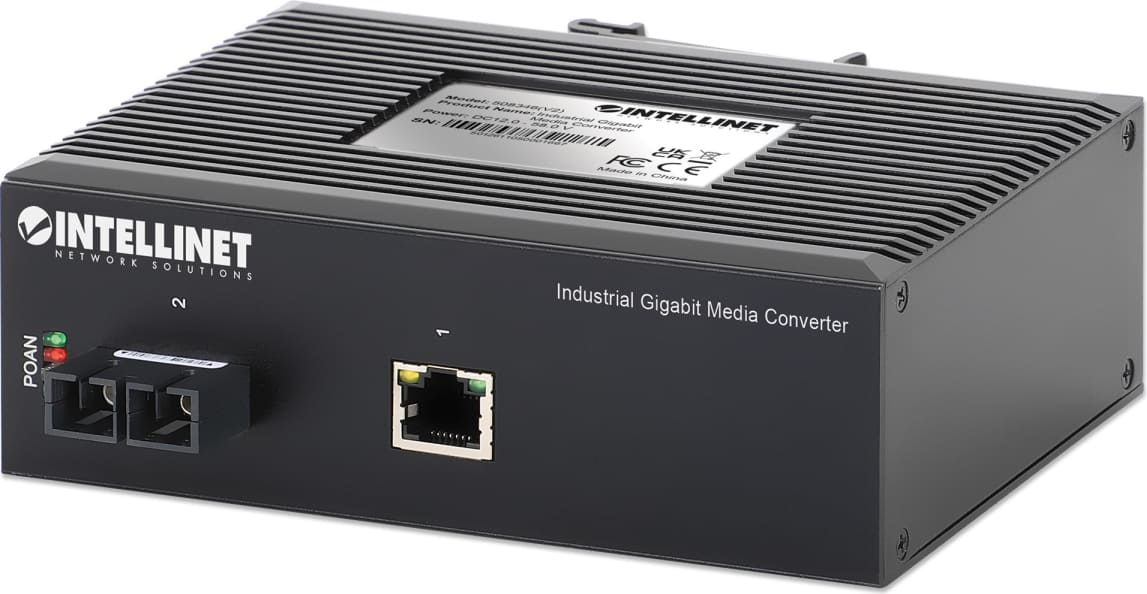

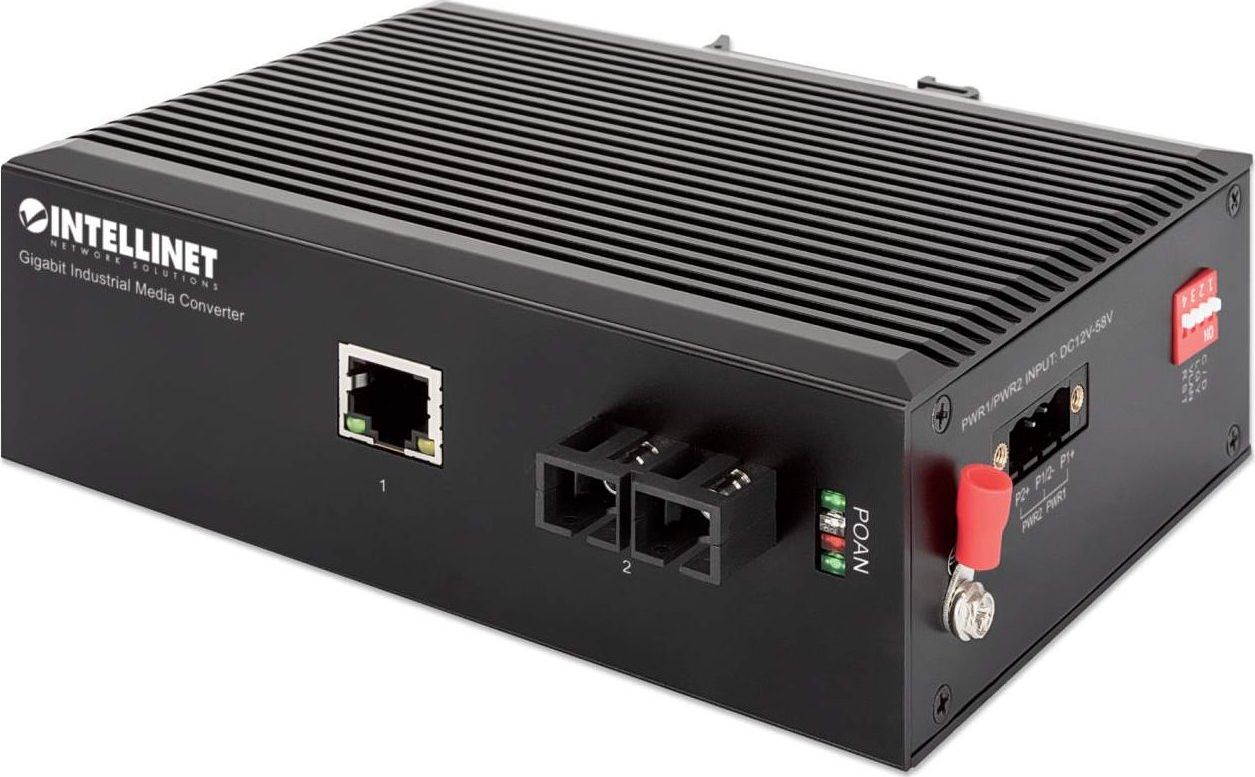

    • Intellinet 508346 tīlkla mediju pārveidotājs 1000 Mbit/s 1310 nm Viens režīms Melns
    Manufacturer: INTELLINET

    Intellinet 508346 tīlkla mediju pārveidotājs 1000 Mbit/s 1310 nm Viens režīms Melns


    €198.05 incl tax

    SKU: ST09567351
    Manufacturer part number: 508346
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    international protection (ip) codeIP40
    weight600 g
    maximum data transfer rate1000 Mbit/s
    height48 mm
    width104 mm
    depth143 mm
    auto-negotiationYes
    networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z
    cable types supportedCat5e
    mac address table8192 entries
    product colourBlack
    led indicatorsYes
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)5 - 90%
    package width160 mm
    package depth185 mm
    package height65 mm
    package weight620 g
    internalNo
    compliance certificatesRoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE
    manualYes
    duplex systemFull, Half
    maximum transfer distance20000 m
    wavelength1310 nm
    fiber mode structureSingle-mode
    fiber cable diameters supported (core/cladding)8/125,8.3/125,8.7/125,10/125 µm
    tx power (min)-9 dBmW
    tx power (max)-3 dBmW
    housing materialMetal
    fiber optic connectorSC
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity1
    output voltage12 - 58 V
    master (outer) case gross weight12.7 kg
    master (outer) case width340 mm
    master (outer) case length420 mm
    master (outer) case height350 mm
    products per master (outer) case20 pc(s)
    jumbo frames supportYes
    sustainability complianceYes
    jumbo frames10000
    buffer size1000 KB
    terminal block portYes
    din rail mountingYes
    converter input interface10Base-T, 100Base-TX, 1000Base-TX
    converter output interface1000Base-LX
    Description
    Intellinet 508346. Maksimālais datu pārraides ātrums: 1000 Mbit/s, Konvertora ievades interfeiss: 10Base-T, 100Base-TX, 1000Base-TX, Konvertora izvades interfeiss: 1000Base-LX. Maksimālais pārskaitījums attālums: 20000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Viens režīms. Produkta krāsa: Melns, Apvalka materiāls: Metāls, International Protection (IP) code: IP40. Optiskās šķiedras konektors: SC, Savienojamības tehnoloģija: Vadu. Izejas spriegums: 12 - 58 V

    Products specifications
    international protection (ip) codeIP40
    weight600 g
    maximum data transfer rate1000 Mbit/s
    height48 mm
    width104 mm
    depth143 mm
    auto-negotiationYes
    networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z
    cable types supportedCat5e
    mac address table8192 entries
    product colourBlack
    led indicatorsYes
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)5 - 90%
    package width160 mm
    package depth185 mm
    package height65 mm
    package weight620 g
    internalNo
    compliance certificatesRoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE
    manualYes
    duplex systemFull, Half
    maximum transfer distance20000 m
    wavelength1310 nm
    fiber mode structureSingle-mode
    fiber cable diameters supported (core/cladding)8/125,8.3/125,8.7/125,10/125 µm
    tx power (min)-9 dBmW
    tx power (max)-3 dBmW
    housing materialMetal
    fiber optic connectorSC
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity1
    output voltage12 - 58 V
    master (outer) case gross weight12.7 kg
    master (outer) case width340 mm
    master (outer) case length420 mm
    master (outer) case height350 mm
    products per master (outer) case20 pc(s)
    jumbo frames supportYes
    sustainability complianceYes
    jumbo frames10000
    buffer size1000 KB
    terminal block portYes
    din rail mountingYes
    converter input interface10Base-T, 100Base-TX, 1000Base-TX
    converter output interface1000Base-LX
    Description
    Intellinet 508346. Maksimālais datu pārraides ātrums: 1000 Mbit/s, Konvertora ievades interfeiss: 10Base-T, 100Base-TX, 1000Base-TX, Konvertora izvades interfeiss: 1000Base-LX. Maksimālais pārskaitījums attālums: 20000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Viens režīms. Produkta krāsa: Melns, Apvalka materiāls: Metāls, International Protection (IP) code: IP40. Optiskās šķiedras konektors: SC, Savienojamības tehnoloģija: Vadu. Izejas spriegums: 12 - 58 V
