Manufacturer: LEVELONE

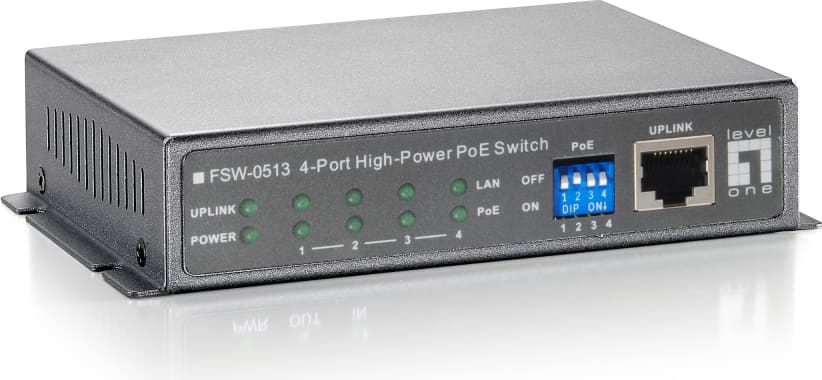

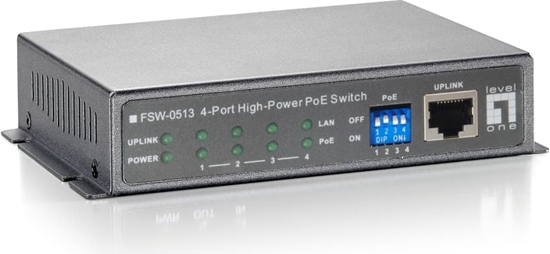

Level One LevelOne FSW-0513 tīkla pārslēgs Fast Ethernet (10/100) Power over Ethernet (PoE) Melns, Pelēks

€175.53 incl tax

SKU: ST09608788

Manufacturer part number: FSW-0513

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	3	€175.53 incl tax

Qty:

Specifications

Products specifications

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

weight

800 g

height

28 mm

width

120 mm

depth

90 mm

full duplex

Yes

auto-negotiation

Yes

on/off switch

Yes

stackable

country of origin

Taiwan

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Fast Ethernet (10/100)

power connector

DC-in jack

networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX

cable types supported

Cat5

mac address table

1024 entries

switching capacity

1 Gbit/s

store-and-forward

Yes

rack mounting

product colour

Black, Grey

led indicators

Uplink, LAN, PoE, Power

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

120 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

10 - 90%

package width

232 mm

package depth

148 mm

package height

80 mm

certification

FCC, CE

harmonized system (hs) code

85176990

manual

Yes

ac adapter included

Yes

output voltage

56 V

output current

2.15 A

cables included

power consumption (typical)

120 W

power protection features

Over current, Short circuit

buffer size

48 KB

packet forwarding rate (100 mbps)

14800 pps

packet forwarding rate (10 mbps)

14880 pps

power over ethernet (poe) power per port

52 W

Description

LevelOne FSW-0513. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 5. Pilns duplekss. Adrešu tabulas izmērs: 1024 ieraksti, Komutācijas ietilpība: 1 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. Saspraudnis: DC-ligzda. Power over Ethernet (PoE)
