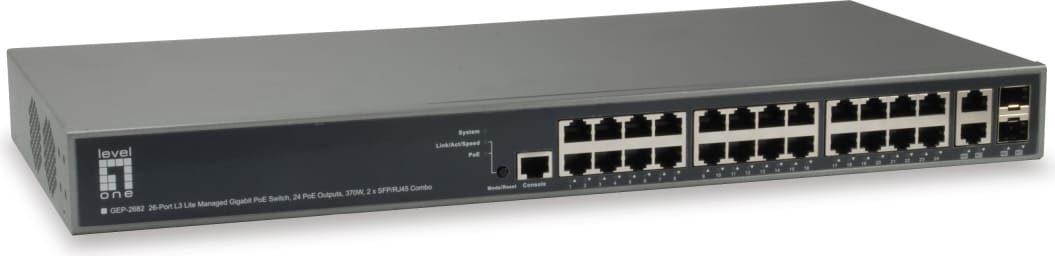

    • Level One LevelOne GEP-2682 tīkla pārslēgs Vadīts L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
    Manufacturer: LEVELONE

    Level One LevelOne GEP-2682 tīkla pārslēgs Vadīts L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)


    €1329.22 incl tax

    SKU: ST09611842
    Manufacturer part number: GEP-2682
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    power over ethernet (poe)Yes
    telnetYes
    sflowYes
    weight3.5 kg
    height44 mm
    width442 mm
    depth211 mm
    switch typeManaged
    country of originTaiwan
    switch layerL3
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity24
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    flow control supportYes
    link aggregationYes
    mac address table8000 entries
    switching capacity52 Gbit/s
    forwarding rate38.7 Mpps
    store-and-forwardYes
    access control list (acl)Yes
    rack mountingYes
    led indicatorsActivity, Link, PoE, Speed, System
    mean time between failures (mtbf)211272 h
    power over ethernet plus (poe+) ports quantity24
    total power over ethernet (poe) budget370 W
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    package width300 mm
    package depth520 mm
    package height90 mm
    package weight3.9 kg
    certificationCE, FCC Part 15 Class A
    harmonized system (hs) code85176990
    package typeBlister
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    cables includedAC, LAN (RJ-45)
    master (outer) case gross weight20.7 kg
    master (outer) case width482 mm
    master (outer) case length540 mm
    master (outer) case height324 mm
    products per master (outer) case5 pc(s)
    jumbo frames supportYes
    power consumption (typical)20.71 W
    security algorithms802.1x RADIUS
    resource cdYes
    safetyCB IEC-60950, UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
    quick start guideYes
    jumbo frames9600
    igmp snoopingYes
    internal memory128 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    buffer size512 KB
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    system event logYes
    flash memory32 MB
    broadcast storm controlYes
    dhcp featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
    ssh/ssl supportYes
    fiber ethernet cabling technology1000BASE-X
    virtual lan featuresPrivate VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
    loop protectionYes
    combo sfp ports quantity2
    console portRJ-45
    power over ethernet (poe) power per port30 W
    bpdu filtering/protectionYes
    cable length detectionYes
    garp vlan registration protocol (gvrp)Yes
    Description
    LevelOne GEP-2682. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 52 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Statņa montāža
