Manufacturer: LEVELONE

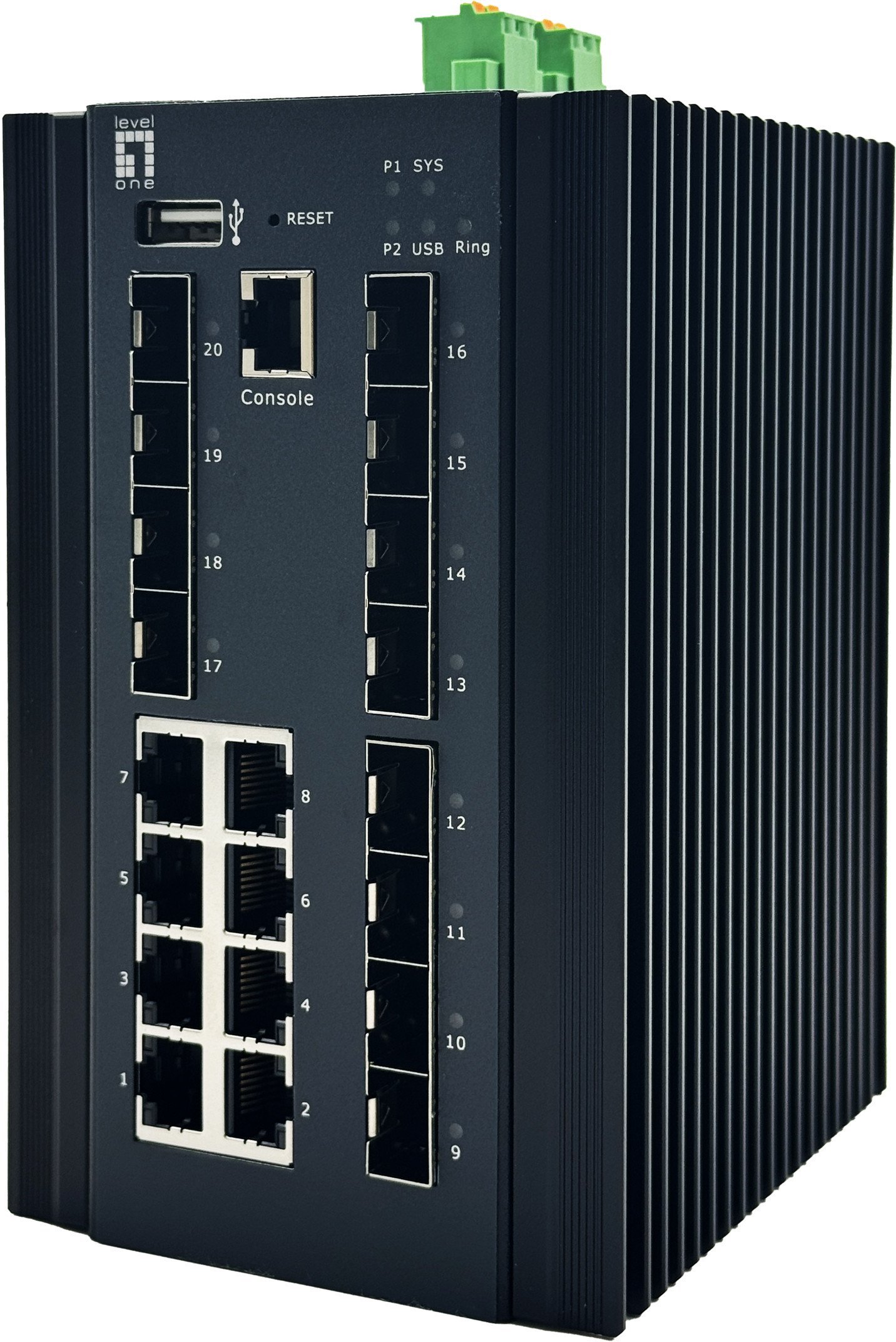

Level One LevelOne IGX-2072 tīkla pārslēgs Vadīts L2+ Gigabit Ethernet (10/100/1000) Melns

€983.35 incl tax

SKU: ST08862224

Manufacturer part number: IGX-2072

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	17	€983.35 incl tax
PL	8 - 15 days	15	€1236.90 incl tax

Qty:

Specifications

Products specifications

power over ethernet (poe)

international protection (ip) code

IP40

telnet

Yes

ethernet ring protection switching (erps)

Yes

dying gasp

Yes

ip source guard (ipsg)

Yes

weight

1.79 kg

height

158 mm

width

110 mm

depth

115 mm

switch type

Managed

input voltage

12 - 75 V

country of origin

China

switch layer

L2+

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

sfp module slots quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

112 Gbit/s

packet buffer memory

12 MB

access control list (acl)

Yes

mac address filtering

Yes

multicast support

Yes

product colour

Black

led indicators

Ring, System, USB

mean time between failures (mtbf)

200000 h

power consumption (max)

27 W

operating temperature (t-t)

-40 - 80 °C

storage temperature (t-t)

-40 - 85 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

package width

232 mm

package depth

180 mm

package height

138 mm

package weight

2.12 kg

harmonized system (hs) code

851762

compliance certificates

UKCA, Federal Communications Commission (FCC), RoHS, CE

power source

cables included

LAN (RJ-45) to DB9

master (outer) case gross weight

15 kg

pallet gross height

167.4 cm

master (outer) case width

440 mm

master (outer) case length

375 mm

master (outer) case height

255 mm

products per master (outer) case

6 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

security algorithms

HTTPS

quick start guide

Yes

jumbo frames

10000

igmp snooping

Yes

surge protection

Yes

spanning tree protocol

Yes

fanless

Yes

static route

Yes

vlan support

Yes

firmware upgradeable

Yes

system event log

Yes

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP server

redundant power supply (rps) support

Yes

virtual lan features

IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping

loop protection

Yes

terminal block port

Yes

console port

RJ-45

din rail mounting

Yes

arp inspection

Yes

cable length detection

Yes

din rail included

Yes

configuring location settings (cli)

Yes

ip-mac-port binding

Yes

password protection

Yes

garp vlan registration protocol (gvrp)

Yes

packet filtering

authentication type

IEEE 802.1x

queue scheduling algorithms

SP, Weighted Round Robin (WRR)

surge protection voltage

6 kV

usb type-a ports quantity

Description

LevelOne IGX-2072. Slēdža tips: Vadīts, Slēdža līmenis: L2+. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 112 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...
