Manufacturer: LEVELONE

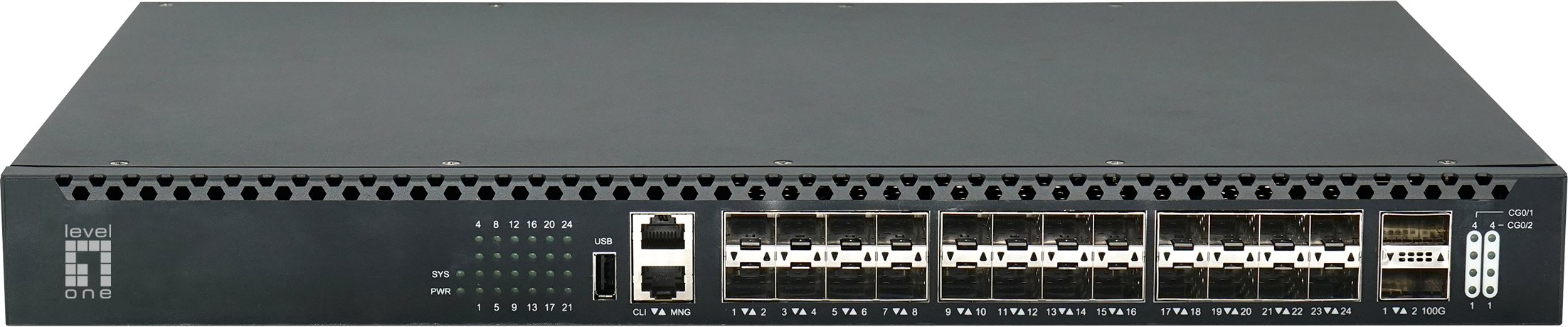

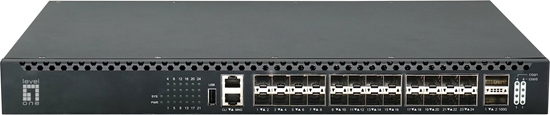

Level One LevelOne XQS-3126 tīkla pārslēgs Vadīts L3 Melns

€1621.58 incl tax

SKU: ST08841755

Manufacturer part number: XQS-3126

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	26	€1621.58 incl tax
PL	8 - 15 days	24	€1826.64 incl tax

Qty:

Specifications

Products specifications

power over ethernet (poe)

sflow

Yes

ethernet ring protection switching (erps)

Yes

weight

4.25 kg

height

44.5 mm

width

442.5 mm

depth

300 mm

switch type

Managed

country of origin

China

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports type

networking standards

IEEE 802.1AE, IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3az

10g support

link aggregation

Yes

mac address table

128000 entries

switching capacity

880 Gbit/s

forwarding rate

660 Mpps

packet buffer memory

4.5 MB

access control list (acl)

Yes

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

noise level

57 dB

mean time between failures (mtbf)

200000 h

power consumption (max)

64 W

operating temperature (t-t)

-10 - 50 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

heat dissipation

238.91 BTU/h

package width

576 mm

package depth

448 mm

package height

94 mm

package weight

7.45 kg

harmonized system (hs) code

851762

compliance certificates

Federal Communications Commission (FCC), RoHS, UKCA

power source

ac input voltage

100 - 240 V

ac input frequency

50 Hz

usb 2.0 ports quantity

cables included

master (outer) case gross weight

15.7 kg

master (outer) case width

605 mm

master (outer) case length

462 mm

master (outer) case height

215 mm

products per master (outer) case

2 pc(s)

pallet gross width

120 cm

pallet gross length

100 cm

jumbo frames support

Yes

power consumption (typical)

26 W

master (outer) cases per pallet (air)

18 pc(s)

pallet height (air)

164.9 cm

quick start guide

Yes

jumbo frames

16000

igmp snooping

Yes

power supply included

Yes

rack mount kit

Yes

internal memory

2048 MB

spanning tree protocol

Yes

fanless

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

number of power supply units

vlan support

Yes

policy-based routing

Yes

dos attack prevention

Yes

flash memory

4096 MB

sfp+ module slots quantity

dhcp features

DHCP Option 82, DHCP snooping

redundant power supply (rps) support

Yes

number of vlans

4000

virtual lan features

Private VLAN, Protocol-based VLAN

console port

RJ-45

traffic classification

Yes

bpdu filtering/protection

Yes

ip-mac-port binding

Yes

rubber feet

Yes

garp vlan registration protocol (gvrp)

Yes

root protection

Yes

authentication type

IEEE 802.1x, RADIUS, TACACS+

fast leave

Yes

queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)

path mtu discovery

Yes

routing protocols

BGP, BGP4+, HSRP, MPLS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng, VRRP

multicast features

Multicast traffic suppression

6to4 tunnel

Yes

number of management ports

1 pc(s)

qsfp28 ports quantity

vlan mapping type

1:1 VLAN mapping, N:1 VLAN mapping

intra-site automatic tunnel addressing protocol (isatap)

Yes

manually configured tunnel

Yes

Description

LevelOne XQS-3126. Slēdža tips: Vadīts, Slēdža līmenis: L3. USB 2.0 pieslēgvietu skaits: 1, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 128000 ieraksti, Komutācijas ietilpība: 880 Gbit/s. Tīkla standarts: IEEE 802.1AE, IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3az. Statņa montāža
