Manufacturer: LEVELONE

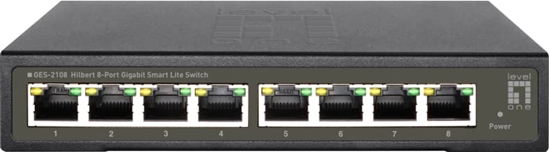

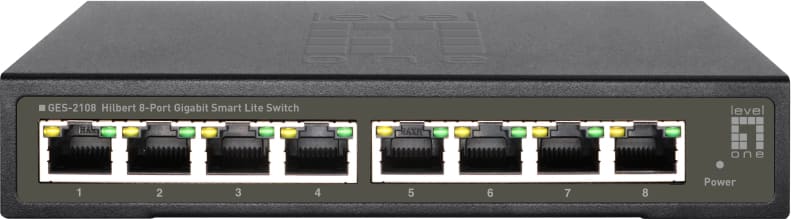

Level One LevelOne GES-2108 tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Melns

€82.06 incl tax

SKU: ST07363995

Manufacturer part number: GES-2108

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	136	€82.06 incl tax
PL	8 - 15 days	98	€93.87 incl tax

Qty:

Specifications

Products specifications

auto mdi/mdi-x

Yes

power over ethernet (poe)

weight

350 g

height

29 mm

width

160 mm

depth

95 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

country of origin

China

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10g support

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

4000 entries

switching capacity

16 Gbit/s

packet buffer memory

1.5 MB

multicast support

Yes

rack mounting

product colour

Black

led indicators

Link, Power

noise level

0 dB

mean time between failures (mtbf)

43800 h

power consumption (max)

6 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

heat dissipation

20.4 BTU/h

package width

264 mm

package depth

122 mm

package height

52 mm

package weight

500 g

package type

Box

compliance certificates

CE, RoHS

power source

input current

1 A

ac adapter included

Yes

master (outer) case gross weight

18.7 kg

master (outer) case width

550 mm

master (outer) case length

330 mm

master (outer) case height

390 mm

products per master (outer) case

36 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

master (outer) cases per pallet (air)

16 pc(s)

pallet height (air)

170.4 cm

sustainability compliance

Yes

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

power supply included

Yes

surge protection

Yes

fanless

Yes

dc input voltage

12 V

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

vlan support

Yes

flash memory

2 MB

broadcast storm control

Yes

rate limiting

Yes

number of vlans

virtual lan features

Tagged VLAN

number of queues

half duplex

Yes

surge protection voltage

8 kV

master (outer) case net weight

700 g

Description

LevelOne GES-2108. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8. Pilns duplekss. Adrešu tabulas izmērs: 4000 ieraksti, Komutācijas ietilpība: 16 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC ievades spriegums: 12 V
