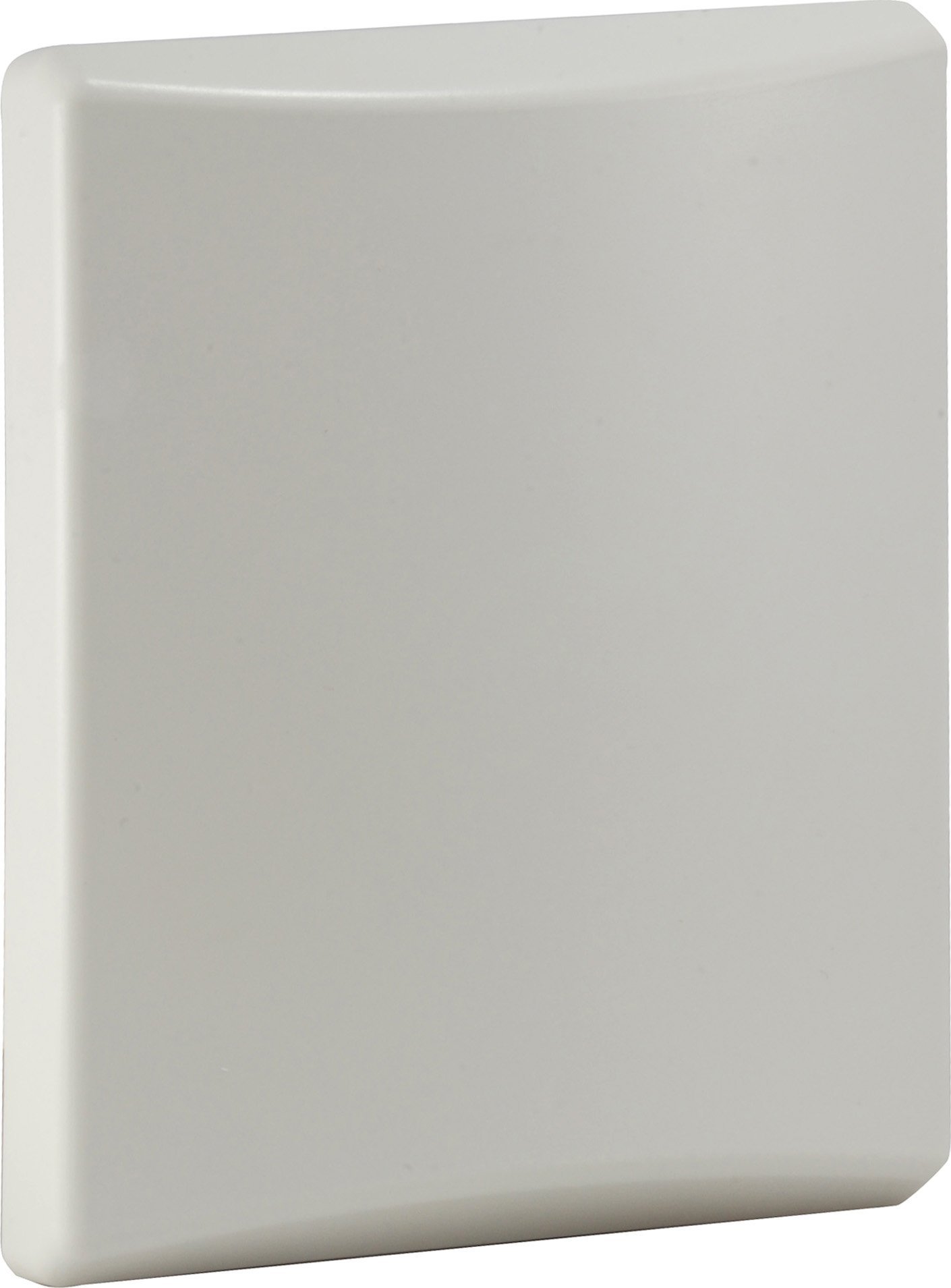

    • Level One LevelOne WAN-2121 antena Vērstā antena N-type 12 dBi
    Manufacturer: LEVELONE

    Level One LevelOne WAN-2121 antena Vērstā antena N-type 12 dBi


    €111.62 incl tax

    SKU: ST09628923
    Manufacturer part number: WAN-2121
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    weight304 g
    height30 mm
    width140 mm
    depth166 mm
    impedance50 Ω
    country of originTaiwan
    networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    product colourGrey
    operating temperature (t-t)-30 - 60 °C
    operating relative humidity (h-h)0 - 95%
    package width185 mm
    package depth85 mm
    package height85 mm
    package weight790 g
    harmonized system (hs) code85177100
    package typeBox
    master (outer) case gross weight17 kg
    master (outer) case width440 mm
    master (outer) case length460 mm
    master (outer) case height390 mm
    products per master (outer) case20 pc(s)
    frequency band2.4 GHz
    quick installation guideYes
    antenna gain level (max)12 dBi
    horizontal beam width50.1°
    vertical beam width39.1°
    antenna typeDirectional antenna
    antenna connector typeN-type
    polarizationVertical polarization
    voltage standing wave ratio (vswr)2.0
    survival wind speed180 km/h
    mounting kitYes
    protection featuresDust resistant, Snow resistant, Water resistant
    maximum cable loss with connectors-10 dB
    Description
    LevelOne WAN-2121. Antenas sasniedzmības līmenis (max): 12 dBi, Frekvences josla: 2.4 GHz, Tīkla standarts: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenas tips: Vērstā antena, Antenas savienotāja tips: N-type, Polarizācija: Vertikālā polarizācija. Platums: 140 mm, Dziļums: 166 mm, Augstums: 30 mm. Iepakojuma platums: 185 mm, Iepakojuma dziļums: 85 mm, Iepakojuma augstums: 85 mm. Izcelsmes valsts: Taivāna, Oriģinālās kastes platums: 440 mm, Kastes garums (Master): 460 mm

    Products specifications
    weight304 g
    height30 mm
    width140 mm
    depth166 mm
    impedance50 Ω
    country of originTaiwan
    networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    product colourGrey
    operating temperature (t-t)-30 - 60 °C
    operating relative humidity (h-h)0 - 95%
    package width185 mm
    package depth85 mm
    package height85 mm
    package weight790 g
    harmonized system (hs) code85177100
    package typeBox
    master (outer) case gross weight17 kg
    master (outer) case width440 mm
    master (outer) case length460 mm
    master (outer) case height390 mm
    products per master (outer) case20 pc(s)
    frequency band2.4 GHz
    quick installation guideYes
    antenna gain level (max)12 dBi
    horizontal beam width50.1°
    vertical beam width39.1°
    antenna typeDirectional antenna
    antenna connector typeN-type
    polarizationVertical polarization
    voltage standing wave ratio (vswr)2.0
    survival wind speed180 km/h
    mounting kitYes
    protection featuresDust resistant, Snow resistant, Water resistant
    maximum cable loss with connectors-10 dB
    Description
    LevelOne WAN-2121. Antenas sasniedzmības līmenis (max): 12 dBi, Frekvences josla: 2.4 GHz, Tīkla standarts: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenas tips: Vērstā antena, Antenas savienotāja tips: N-type, Polarizācija: Vertikālā polarizācija. Platums: 140 mm, Dziļums: 166 mm, Augstums: 30 mm. Iepakojuma platums: 185 mm, Iepakojuma dziļums: 85 mm, Iepakojuma augstums: 85 mm. Izcelsmes valsts: Taivāna, Oriģinālās kastes platums: 440 mm, Kastes garums (Master): 460 mm
