    Manufacturer: LINDY

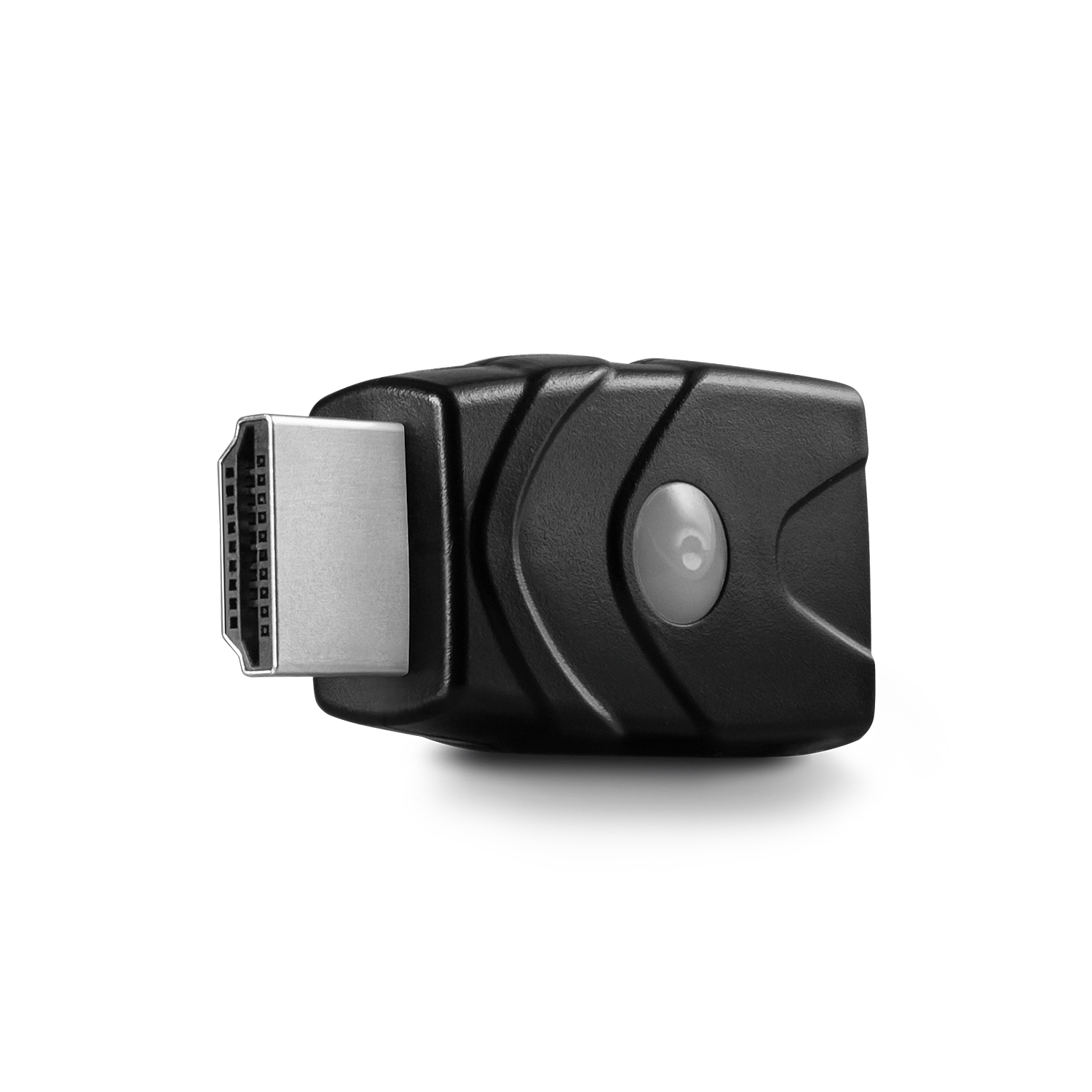

    Lindy HDMI 2.0 18G EDID Emulator


    €95.54 incl tax

    SKU: ST05621596
    Manufacturer part number: 32114
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Color Black
    Properties HDMI
    Connector 1HDMI Type A
    Connector 2HDMI Type A
    Connector 1 genderMale
    Connector 2 genderFemale
    Product colourBlack
    Housing materialPlastic
    Data transfer rate18 Gbit/s
    Maximum resolution4096 x 2160 pixels
    CertificationCE, FCC, REACH
    Operating temperature (T-T)0 - 60 °C
    Storage temperature (T-T)0 - 60 °C
    Relative humidity0 - 80%
    Sustainability certificatesRoHS
    Width410 mm
    Depth230 mm
    Height120 mm
    Weight11 g
    Package typePolybag
    Quantity per pack1 pc(s)
    ManualYes
    Description
    Lindy HDMI 2.0 18G EDID Emulator. Connector 1: HDMI Type A, Connector 2: HDMI Type A. Product colour: Black
    Description
    Product Type Adapter | Colour Black
    weight11 g
    gross weight0.02
    height120 mm
    width410 mm
    depth230 mm
    data transfer rate18 Gbit/s
    country of originTW
    product colourBlack
    operating temperature (t-t)0 - 60 °C
    storage temperature (t-t)0 - 60 °C
    certificationCE, FCC, REACH
    connector 1HDMI Type A
    connector 2HDMI Type A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typePolybag
    compliance certificatesRoHS
    manualYes
    housing materialPlastic
    maximum resolution4096 x 2160 pixels
    relative humidity0 - 80%
    net weight0.02
    packaging height14.40
    packaging lenght13.30
    packaging width1.50
    warranty2
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9d/67/97/62/6297679d999c8d635dc13f7b/LINDY_32114_MAN_0917.pdf
    Description
    Connectors
    • Connector A: HDMI® Type A Male
    • Connector B: HDMI® Type A Female
    • Housing Material: ABS
    • Connector Plating: Nickel
    • Pin Construction: Phosphor Bronze
    • Pin Plating: Nickel
    • Dimensions (approx.) WxDxH: 41x23x12mm (1.61x0.91x0.47in)

    Cable Construction

    • Length: -
    • Standard: HDMI® 2.0
    • Colour: Black
    • Type: -
    • Jacket Diameter: -
    • Jacket Material:  PVC
    • Conductor Material: -
    • Conductor Gauge: -
    • Shielding: Copper Foil
    Specifications
    • Supported Bandwidth: 18 Gbps
    • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
    • Nominal Attenuation:
      • 300kHz-825MHz <5dB
      • 825MHz-2.475GHz 5dB-12dB
      • 2.475GHz-4.125GHz 12dB-20dB
      • 4.125GHz-5.1GHz 20dB-25dB
    • Minimum Bend Radius: -
    • Operating Temperature: 0°C - 60°C (32°F - 140°F)
    • Storage Temperature: 0°C - 60°C (32°F - 140°F)
    • ATC Approved: -
    Miscellaneous
    • Packaging Type: Polybag
    • Warranty (Years): 2
    • Certificated: CE, FCC, RoHS, REACH, TAA
    Purchasing Information
    • No.: 32114
    • EAN: 4002888321143



    Manuals: LINDY_32114_MAN_0917.pdf
