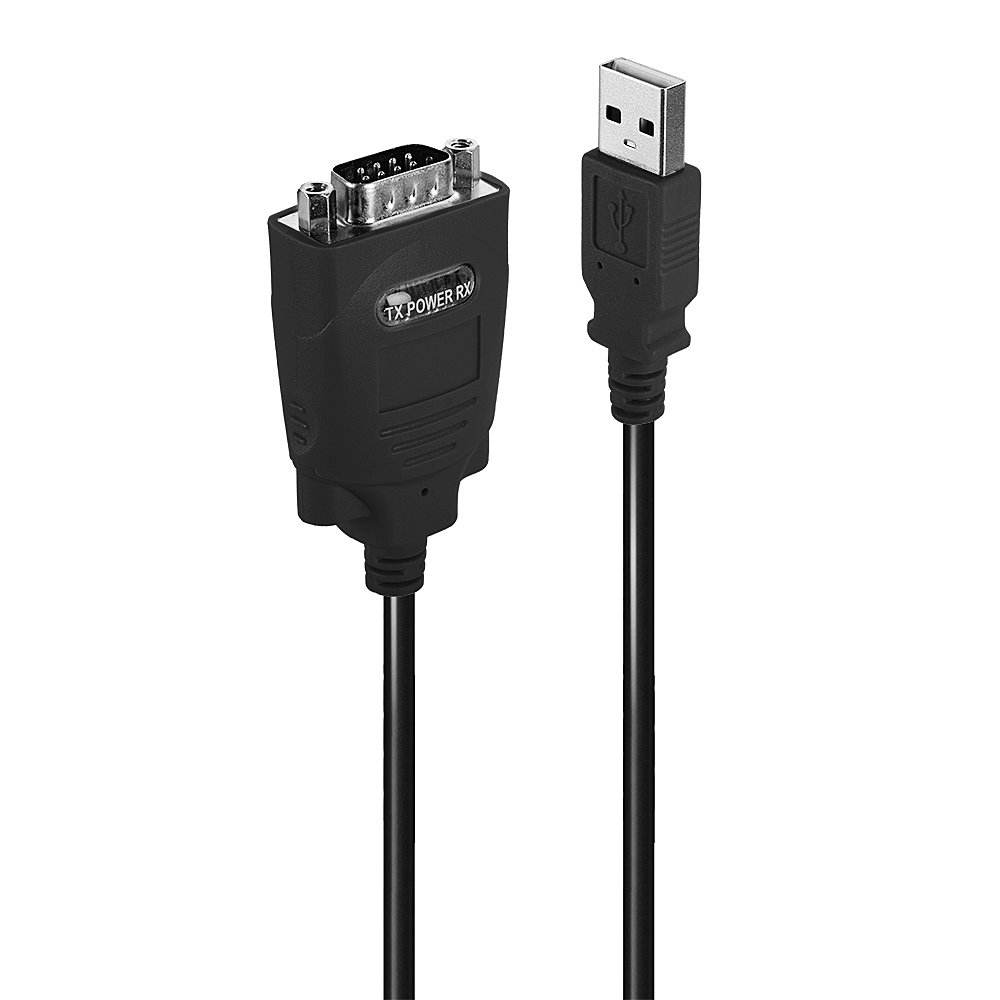

Lindy USB RS485 Converter

Specifications

• Interface: USB to RS485 Serial
• Interface Standard: USB to RS485 Serial
• Supported Bandwidth: 12Mbps, up to 3Mbaud
• Chipset: FTDI FT231XS
• Compatibility: USB Type A equipped computers
• Power Delivery: -
• Special Features: Supports Half Duplex Mode

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 1 x RS485 9 way (Male)
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH:
  • 33x55x14mm (1.3x2.17x0.55mm) / RS485
  • 14x39x8mm (0.55x1.54x0.31in) / USB
• Cable Length: 1m (3.28ft)
• Housing Material: Plastic
• Net Weight: 0.077kg (0.17lb)
• Operating Temperature: 0°C - 50°C (32°F -122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.152kg (0.34lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65, TAA

Package Contents

• USB to Serial Converter

Purchasing Information

• No.: 42845
• EAN: 4002888428453
