    Manufacturer: BACHMANN

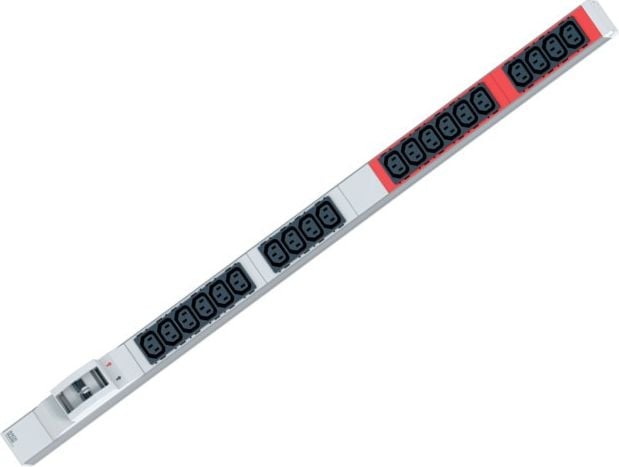

    Bachmann IT PDU ALU 1U 20x C13 2x circuit breaker CEE 32A blue


    €205.88 incl tax

    SKU: ST09266555
    Manufacturer part number: 800.0119
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    manufacturerBACHMANN
    product groupPower Bars
    product typeVertikal IT PDU
    colourvarious
    weight2.54 kg
    height of packaging (single piece)120 mm
    width of packaging (single piece)130 mm
    depth of packaging (single piece)1100 mm
    package weight (single piece)2.952 kg
    gross weight2.952
    current catalog edition24.1
    current catalog page10.16
    technical particularity2x Leitungsschutzschalter
    colour (cable)black
    height44 mm
    width778 mm
    depth47 mm
    material (casing)Aluminium
    colour (design profile)Aluminium
    function19" socket strip
    mounting formVertikal
    max. capacitance3x 3600W
    max. voltage400V AC
    on/off switchno
    number of socket pots20
    quantity of outputs/angles20
    output alignment24 x C13 3 x C19
    socket typeIEC320 C13, 10A
    connection cableCEE Stecker 32A 3-pol
    connector plugCEE 32A
    regional useWithout restriction
    plug typeCEE red 32A 3P+N+PE 400V
    garums3 m
    Description

    Vertical IT PDU for space-saving and modularly expandable integration into the server rack

    Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile - Extremely compact dimensions with 44 x 47 mm, This provides plenty of space for - data cabling and air routing for air conditioning the server rack - Locking the plugs using a PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 778mm - 20x C13 cold appliance sockets, lockable - 2x circuit breakers - Supply cable: 3.0m H05VV-F 5G4mm² with CEE plug 1-phase 32A blue - incl. Mounting bracket packed in cardboard box - Dimensions: 778 x 44 x 47mm
