    • Metz Connect E-DAT C6A 24 port patch panel 1RU LSA
    Manufacturer: METZ CONNECT

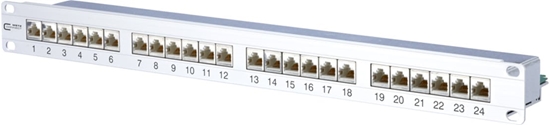

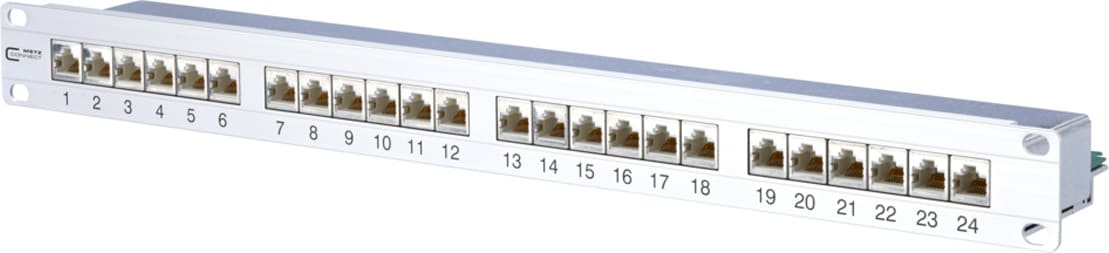

    Metz Connect E-DAT C6A 24 port patch panel 1RU LSA


    €215.16 incl tax

    SKU: ST09569326
    Manufacturer part number: 130855C-E
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    manufacturerMETZ CONNECT
    product groupConnection technology TP
    product typePatchpanel Cat.6A / Class EA
    coloursilver
    weight1120 g
    height of packaging (single piece)50 mm
    width of packaging (single piece)190 mm
    depth of packaging (single piece)500 mm
    package weight (single piece)1.265 kg
    gross weight1.265
    transfer qualityCat6A / Class EA
    height44.45 mm
    width444 mm
    depth90.5 mm
    operating temperature min.-40 °C
    operating temperature max.70 °C
    quantity of ports24
    shield typeScreened
    shield contactsja
    separate strain reliefyes
    connection directionStraight
    material (casing)eloxiertes Aluminium
    assembly cable connectionKrone LSAplus
    modular assemblyno
    cabinet system19"-Technique
    height units1 U
    Description

    19 inch 1RU frame made of silver anodized aluminum with 24 individually shielded RJ45 jacks

    • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
    • compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
    • tested: component up to 600 MHz, link up to 800 MHz
    • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
    • wire pairs can be led to the LSA terminal without untwisting the pair
    • connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 26/1-22/1) conductor colors marking to T568A

    Products specifications
    manufacturerMETZ CONNECT
    product groupConnection technology TP
    product typePatchpanel Cat.6A / Class EA
    coloursilver
    weight1120 g
    height of packaging (single piece)50 mm
    width of packaging (single piece)190 mm
    depth of packaging (single piece)500 mm
    package weight (single piece)1.265 kg
    gross weight1.265
    transfer qualityCat6A / Class EA
    height44.45 mm
    width444 mm
    depth90.5 mm
    operating temperature min.-40 °C
    operating temperature max.70 °C
    quantity of ports24
    shield typeScreened
    shield contactsja
    separate strain reliefyes
    connection directionStraight
    material (casing)eloxiertes Aluminium
    assembly cable connectionKrone LSAplus
    modular assemblyno
    cabinet system19"-Technique
    height units1 U
    Description

    19 inch 1RU frame made of silver anodized aluminum with 24 individually shielded RJ45 jacks

    • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
    • compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
    • tested: component up to 600 MHz, link up to 800 MHz
    • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
    • wire pairs can be led to the LSA terminal without untwisting the pair
    • connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 26/1-22/1) conductor colors marking to T568A
