Manufacturer: FNIRSI

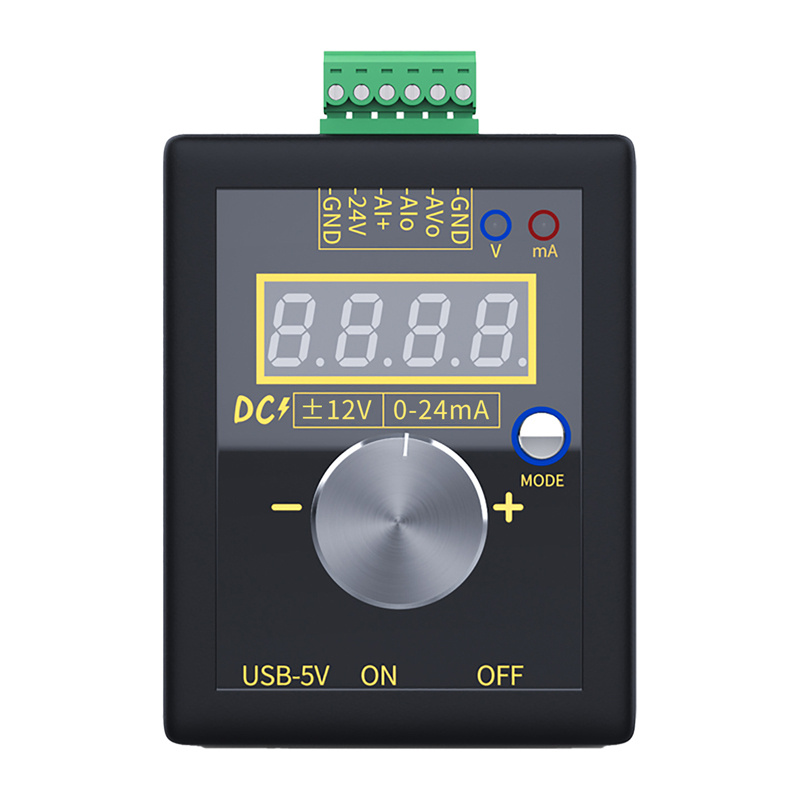

Multifunctional signal generator FNIRSI SG-002

€24.94 incl tax

SKU: ST10447775

Manufacturer part number: SG-002

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	193	€24.94 incl tax

Qty:

Specifications

Products specifications

Description

FNIRSI SG-002 Multifunctional signal generator The FNIRSI SG-002 is a fully professional, multifunctional voltage and current signal generator designed for testing, diagnostics, and commissioning of automation systems. It supports ±12 V and 0–24 mA signals, operates in active and passive modes, works with 2-, 3-, and 4-wire installations, and offers high accuracy after calibration (up to 0.05 V / 0.05 mA). With its compact dimensions of 89 × 69 × 28 mm, the FNIRSI SG-002 is a truly mobile signal source. It is a tool that effectively replaces several devices and gives you full control over the signal in all conditions. Full compatibility with automation and PLC The generator has been designed with real industrial installations in mind. It works seamlessly with PLCs, inverters, proportional valves, transducers, and control systems. Support for both active and passive outputs allows you to test virtually any type of analog input – without any complications, additional resistors, or external power sources. Universal voltage ranges – exactly what you need The FNIRSI SG-002 offers a wide selection of voltage modes: ±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, and –10–0 V. This means that a single device is sufficient for testing both classic industrial installations and modern electronics or low-voltage control systems. Precise current generation up to 24 mA The current output covers the range of 0–24 mA and supports the popular 0–20 mA and 4–20 mA standards. High stability and accuracy after calibration make the generator ideal for sensor simulation, analog input calibration, and measurement circuit verification – even with loads up to 500 Ω. Coarse and fine adjustment – full control over details The rotary encoder allows you to work in coarse and fine adjustment modes. This allows you to quickly set an approximate value and then refine it with high precision. One turn of the knob generates 30 pulses, which translates into very smooth and predictable adjustment – ideal for both quick tests and precise calibration. Clear display and flexible presentation modes The 4-digit LED display offers 8 levels of brightness adjustment and various data presentation modes: actual value, percentage, and special modes. This makes reading parameters quick and unambiguous, regardless of lighting conditions and the nature of the work. Settings memory and quick start points The generator allows you to save the set voltage or current values, which are automatically restored after restarting. In addition, a quick start function is available, allowing you to save several predefined signal levels. This saves a lot of time during serial testing and repetitive service procedures. Three power supply methods – ready to work anywhere The FNIRSI SG-002 can be powered from an external 15–30 V DC source (e.g., from a 24 V PLC installation), via micro USB 5 V, or from a built-in 1100 mAh / 3.7 V lithium battery. The device can operate while charging, which gives you complete independence in the field and in control cabinets. Safe connection and logical terminal structure Detachable terminal strips enable quick and secure connection of voltage and current signals. The well-thought-out terminal layout facilitates correct connection in active and passive modes and minimizes the risk of errors when working in industrial installations. Included: FNIRSI SG-002 signal generator Detachable terminal strip USB cable (micro USB) User manual Manufacturer FNIRSI Model SG-002 Device type Multifunctional voltage and current signal generator Voltage output range ±12 V (multi-mode) Available voltage modes ±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, –10–0 V Current output range 0–24 mA Current standards 0–20 mA, 4–20 mA, 0–24 mA Voltage accuracy after calibration ±0.05 V Current accuracy after calibration ±0.05 mA Maximum load resistance (current) ≤ 500 Ω Current output type Active and passive Supported wiring configurations 2-, 3-, and 4-wire Value adjustment Coarse and fine (rotary encoder) Adjustment resolution Coarse adjustment: 0.1–5 V / mA Fine adjustment: 0.01–0.5 V / mA Encoder 30 pulses per revolution Display 4-digit high-brightness LED Display brightness adjustment 8 levels Display modes Actual value, percentage, special modes Settings memory Yes (automatic restoration after restart) Quick start points Yes, programmable External power supply DC 15–30 V USB power supply micro USB 5 V Battery power supply Built-in 3.7 V / 1100 mAh lithium battery Operation during charging Yes Signal connectors Detachable terminal strips Dimensions 89 × 69 × 28 mm Application Industrial automation, PLC, service, calibration, laboratories, education
