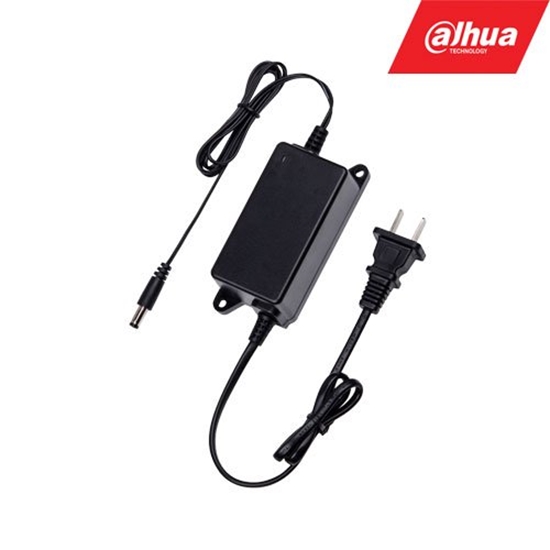

Power Adapter PFM320D-EN 12V / 2A / 24W

Technical Specifications

• Electrical Specification

• Input 100~240V, 50/60Hz, 0.5A

• Output 12V (+7%, -3%) ---2A (± 2%)

• Protection: Surge protection, over temperature protection, over current, voltage load protection ESD: EN61000-4-2 ± 4kV Contact; ± 8kV Air Surge: EN61000-4-5”, Combination Wave: Common Mode ± 4KV (12 ohms), Differential Mode ± 2kV (2 ohms).

• Working Temperature -30?~+70?(-22?~+158?).

• Working Humidity <95% RH.

Physical Properties

• Weight 170g(0.33lb).

• Dimension(Lxwxh) 84mmx41mmx26mm.

• Installation Mode Plane installation.

• Color Black.

• Input Plug 2-pin Euro plug.

• Outgoing Cord AC wire: 50cm(19.69”), DC wire: 80cm(31.5”).

• DC Plug F5.5mmxF2.1mmx12mm(F0.22”xF0.08”x0.47”).

Safety Standards

• Certification CE, FCC, UL-VI.

Tehniskās specifikācijas: – Electrical Specification– Input 100~240V, 50/60Hz, 0.5A– Output 12V (+7%,– 3%)– – – 2A (± 2%)– Protection: Surge protection, over temperature protection, over current, voltage load protection ESD: EN61000– 4– 2 ± 4kV Contact; ± 8kV Air Surge: EN61000– 4– 5”, Combination Wave: Common Mode ± 4KV (12 ohms), Differential Mode ± 2kV (2 ohms).– darbības temperatūras– 30?~+70?(– 22?~+158?).– Working Humidity <95% RH. Physical Properties– svars 170g(0.33lb).– Dimension(Lxwxh) 84mmx41mmx26mm.– Installation Mode Plane installation.– Color Black.– Input Plug 2– pin Euro plug.– Outgoing Cord AC wire: 50cm(19.69”), DC wire: 80cm(31.5”).– DC Plug F5.5mmxF2.1mmx12mm(F0.22”xF0.08”x0.47”). Safety Standards– Certification CE, FCC, UL– VI.

Технические характеристики

• Electrical Specification

• Input 100~240V, 50/60Hz, 0.5A

• Output 12V (+7%, -3%) ---2A (± 2%)

• Protection: Surge protection, over temperature protection, over current, voltage load protection ESD: EN61000-4-2 ± 4kV Contact; ± 8kV Air Surge: EN61000-4-5”, Combination Wave: Common Mode ± 4KV (12 ohms), Differential Mode ± 2kV (2 ohms).
• Рабочая температура -30?~+70?(-22?~+158?).

• Working Humidity <95% RH.

Physical Properties

• Вес 170g(0.33lb).

• Dimension(Lxwxh) 84mmx41mmx26mm.

• Installation Mode Plane installation.

• Color Black.

• Input Plug 2-pin Euro plug.

• Outgoing Cord AC wire: 50cm(19.69”), DC wire: 80cm(31.5”).

• DC Plug F5.5mmxF2.1mmx12mm(F0.22”xF0.08”x0.47”).

Safety Standards

• Certification CE, FCC, UL-VI.
