| manufacturer | APC |
| product group | USV |
| product type | UPS Line Interactive |
| colour | black |
| weight | 13 kg |
| height of packaging (single piece) | 400 mm |
| width of packaging (single piece) | 250 mm |
| depth of packaging (single piece) | 490 mm |
| package weight (single piece) | 13.342 kg |
| gross weight | 13.342 |
| current catalog edition | 24.1 |
| current catalog page | 10.08 |
| technical particularity | Hörbare Geräusche in 1 m Entfernung von der Oberfläche 45... |
| scope of delivery | USV, Software, Kabelsatz |
| height | 301 mm |
| width | 112 mm |
| depth | 382 mm |
| operating temperature min. | 0 °C |
| operating temperature max. | 40 °C |
| dimensions (hxwxd) | 301 x 112 x 382 mm |
| interface | USB |
| mounting form | Tower |
| usb 2.0 interface | ja |
| cable length | 1.83 m |
| battery capacity | 187 VAh |
| classification (iec 62040-3) | VI-SS-333 |
| ups technology | Line Interactive |
| output (va/w) | 1500 / 865 |
| backup time full/half-load | 6 / 15 min |
| voltage (input) | 168 - 280 V |
| voltage (output) | 230V |
| frequency | 50Hz |
| connector type (input) | Kaltgeräte IEC-320 C14 |
| connector type (output) | (5 + 5) x Kaltgeräte IEC-320 C13 |
| phase in/output | 230V/230V / 50Hz |
| over current protection | EMI,- RFI-Filter |
| slot for adapter card | nein |
| additional over current protector | Telefon/Fax |
| activity display | Ja |
| incl.management software | Windows |
| internal cooling | Aktiv, Lüfter |
| ambient temperature | 0-40°C |
| hot swap batteries | nein |
| bypass | nein |
| activity led | nein |
| efficiency | 98.9% |
| delay expansion unit | nein |
| form factor | Tower |
| product colour | Black |
| noise level | 45 dB |
| operating temperature (t-t) | 0 - 40 °C |
| storage temperature (t-t) | -15 - 45 °C |
| operating relative humidity (h-h) | 0 - 95% |
| storage relative humidity (h-h) | 0 - 95% |
| package width | 235 mm |
| package depth | 490 mm |
| package height | 390 mm |
| package weight | 13.8 kg |
| certification | BSI 1363, CE, NEMKO, REACH, TUV-GS |
| harmonized system (hs) code | 85078000 |
| battery type | APCRBC124 |
| compliance certificates | RoHS |
| manual | Yes |
| cables included | Phone (RJ-11), USB cable |
| products per pallet | 20 pc(s) |
| operating altitude | 0 - 3000 m |
| non-operating altitude | 0 - 15000 m |
| ac outlets quantity | 6 AC outlet(s) |
| ac outlet types | Type F |
| nominal input voltage | 230 V |
| power plug | Type F |
| nominal output voltage | 230 V |
| usb port | Yes |
| sustainability certificates | ENERGY STAR, Green Premium |
| ups topology | Line-Interactive |
| output power capacity | 1.5 kVA |
| output power | 865 W |
| waveform | Sine |
| input operation voltage (min) | 156 V |
| input operation voltage (max) | 300 V |
| input frequency | 50/60 Hz |
| output frequency regulation | 50/60 Hz |
| surge energy rating | 441 J |
| hold time (min) | 10 ms |
| hold time (max) | 12 ms |
| surge protection | Yes |
| audible alarm(s) | Yes |
| typical backup time at full load | 3.7 min |
| typical backup time at half load | 12.3 min |
| battery life (max) | 5 year(s) |
| battery recharge time | 8 h |
| hot-swap battery | Yes |
| automatic battery test | Yes |
| cold start | Yes |
| software cd | Yes |
| bundled software | PowerChute Personal Edition |
| warranty card | Yes |
| display type | LCD |
| surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network |
| suitable for use in country/location | Europe |
| number of type f outputs | 6 |
| Description |

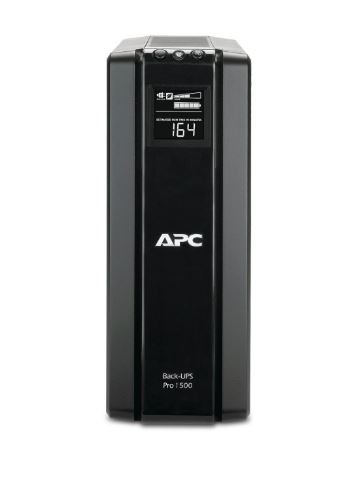

APC Back-UPS Pro. UPS topoloģija: Line-Interactive, Izejas jaudas kapacitāte (VA): 1,5 kilovoltampērs, Izejas jauda: 865 W. Maiņstrāvas izeju tipi: Tips F, Jaudas spraudnis: Tips F, Izeju skaits: 6 Maiņstrāvas izvade (-s). Akumulatora ietilpība: 187 volt-ampērstunda, Tipiskais dublējuma laiks pilnā ielādē: 3,7 min, Tipiskais dublējuma laiks pusielādē: 12,3 min. Formas faktors: Tower, Produkta krāsa: Melns, Kabeļa garums: 1,83 m. Atbilstības sertifikāti: RoHS, Sertifikācija: BSI 1363, CE, NEMKO, REACH, TUV-GS
|
|
