Manufacturer: INTEL

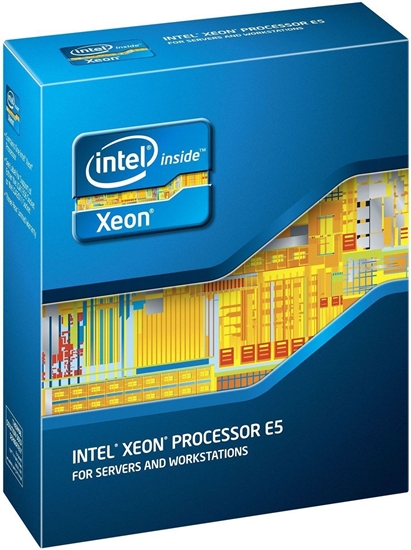

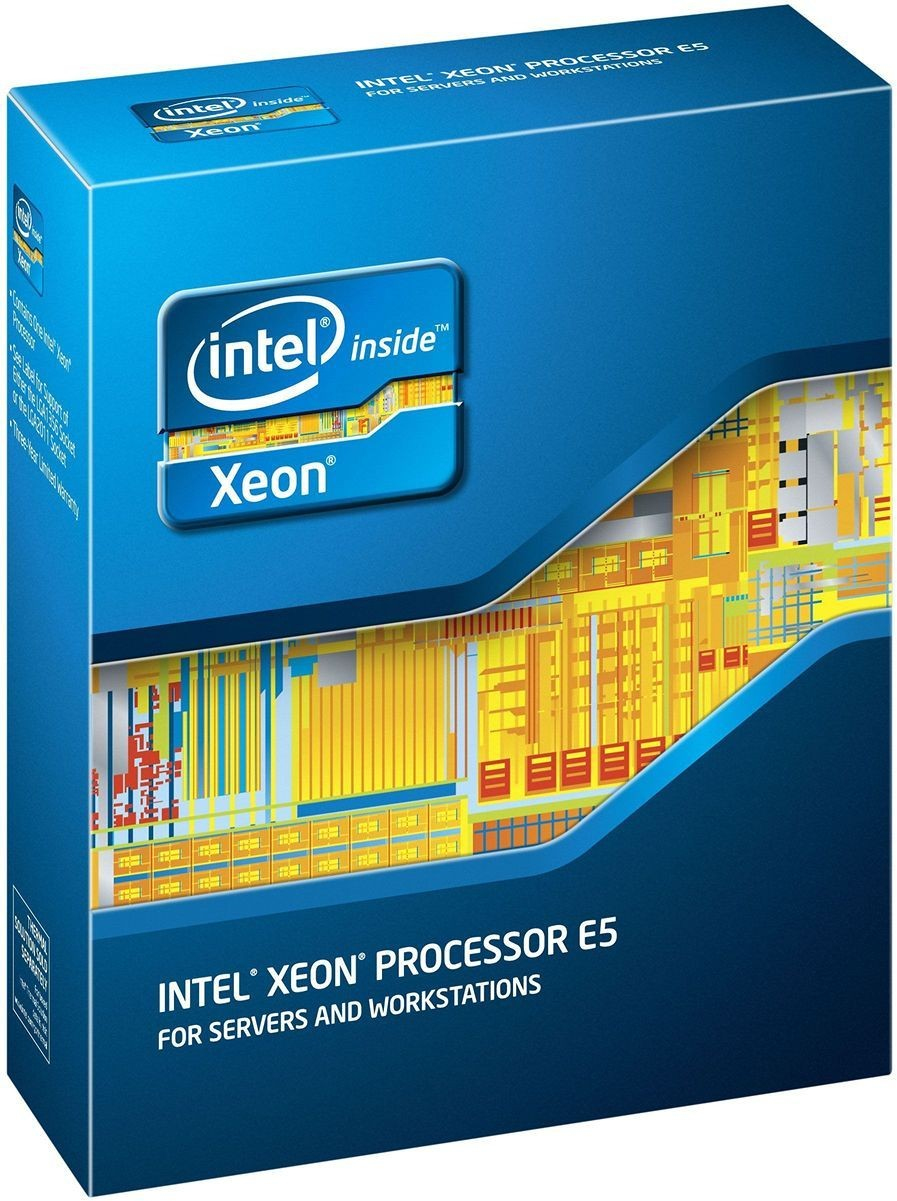

Intel Xeon E5-2609V3 processor 1.9 GHz 15 MB Smart Cache Box

€478.65 incl tax

SKU: ST07831397

Manufacturer part number: BX80644E52609V3

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	1	€478.65 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Processor series	Intel Xeon
CPU Socket	LGA 2011

Processor family	Intel Xeon E5 v3
Processor cores	6
Processor socket	LGA 2011-v3
Processor lithography	22 nm
Box	Yes
Cooler included	Yes
Processor manufacturer	Intel
Processor model	E5-2609V3
Processor base frequency	1.9 GHz
Processor operating modes	64-bit
Component for	Server/workstation
Processor series	Intel Xeon E5-2600 v3
Processor threads	6
System bus rate	6.4 GT/s
Processor cache	15 MB
Processor cache type	Smart Cache
L3 cache speed	1.9 GHz
Thermal Design Power (TDP)	85 W
VID Voltage Range	0.65 - 1.3 V
Stepping	M1
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	51 GB/s
Processor codename	Haswell
Processor ARK ID	81897
Memory channels	Quad-channel
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
ECC	Yes
On-board graphics card	No
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
CPU configuration (max)	2
Embedded options available	Yes
Physical Address Extension (PAE)	46 bit
PCI Express CEM revision	3.0
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Turbo Boost Technology	No
Intel Flex Memory Access	No
Intel® Smart Cache	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Transactional Synchronization Extensions	No
Intel Enhanced Halt State	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel® Secure Key	Yes
Intel TSX-NI	No
Intel® OS Guard	Yes
Intel 64	Yes
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel TSX-NI version	0.00
Conflict-Free processor	No
Intel® vPro™ Platform Eligibility	Yes
Tcase	70.9 °C
Processor cache	15360 KB
Product type	Processor
Supported memory types	DDR4-SDRAM
Harmonized System (HS) code	8542310001
Package type	Retail box
Processor package size	52.5mm x 45mm
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	768 GB
Maximum internal memory	786432 MB
Cache memory	15 MB
Born on date	Q3'14
Bus bandwidth	6.4
Bus type units	GT/s
Launch date	Q3'14
Processor core voltage	0.65–1.30
Product name	Intel Xeon E5-2609 v3 (15M Cache, 1.90 GHz)
Status	Discontinued
Maximum memory	768 GB
Processor brand name	Intel Xeon v2
Last change	63903513
Product family	Intel Xeon Processor E5 v3 Family
Bus speed	6.4 GT/s
Description
Description	Intel Xeon E5-2609V3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: x4, x8, x16, Supported instruction sets: AVX 2.0. Package type: Retail box. Processor package size: 52.5mm x 45mm

Products specifications

1
Details 2

Processor series	Intel Xeon
CPU Socket	LGA 2011

Processor family	Intel Xeon E5 v3
Processor cores	6
Processor socket	LGA 2011-v3
Processor lithography	22 nm
Box	Yes
Cooler included	Yes
Processor manufacturer	Intel
Processor model	E5-2609V3
Processor base frequency	1.9 GHz
Processor operating modes	64-bit
Component for	Server/workstation
Processor series	Intel Xeon E5-2600 v3
Processor threads	6
System bus rate	6.4 GT/s
Processor cache	15 MB
Processor cache type	Smart Cache
L3 cache speed	1.9 GHz
Thermal Design Power (TDP)	85 W
VID Voltage Range	0.65 - 1.3 V
Stepping	M1
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	51 GB/s
Processor codename	Haswell
Processor ARK ID	81897
Memory channels	Quad-channel
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
ECC	Yes
On-board graphics card	No
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
CPU configuration (max)	2
Embedded options available	Yes
Physical Address Extension (PAE)	46 bit
PCI Express CEM revision	3.0
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Turbo Boost Technology	No
Intel Flex Memory Access	No
Intel® Smart Cache	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Transactional Synchronization Extensions	No
Intel Enhanced Halt State	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel® Secure Key	Yes
Intel TSX-NI	No
Intel® OS Guard	Yes
Intel 64	Yes
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel TSX-NI version	0.00
Conflict-Free processor	No
Intel® vPro™ Platform Eligibility	Yes
Tcase	70.9 °C
Processor cache	15360 KB
Product type	Processor
Supported memory types	DDR4-SDRAM
Harmonized System (HS) code	8542310001
Package type	Retail box
Processor package size	52.5mm x 45mm
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	768 GB
Maximum internal memory	786432 MB
Cache memory	15 MB
Born on date	Q3'14
Bus bandwidth	6.4
Bus type units	GT/s
Launch date	Q3'14
Processor core voltage	0.65–1.30
Product name	Intel Xeon E5-2609 v3 (15M Cache, 1.90 GHz)
Status	Discontinued
Maximum memory	768 GB
Processor brand name	Intel Xeon v2
Last change	63903513
Product family	Intel Xeon Processor E5 v3 Family
Bus speed	6.4 GT/s
Description
Description	Intel Xeon E5-2609V3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: x4, x8, x16, Supported instruction sets: AVX 2.0. Package type: Retail box. Processor package size: 52.5mm x 45mm
