    • Aten CS1764A KVM switch Black
    Manufacturer: ATEN

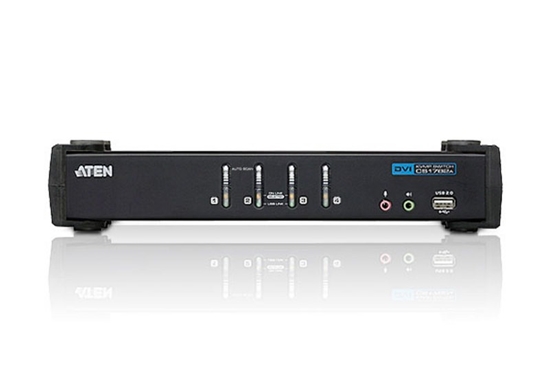

    Aten CS1764A KVM switch Black


    €201.46 incl tax

    SKU: ST05088929
    Manufacturer part number: cs1764a
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDVI-I
    Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
    DVI-I ports quantity5
    Console USB ports quantity2
    USB hubYes
    USB 2.0 ports quantity4
    USB connector typeUSB Type-A
    USB version2.0
    Audio connectionsYes
    Headphone outputs5
    Number of microphone inputs5
    DC-in jackYes
    HD typeWUXGA
    Maximum resolution1920 x 1200 pixels
    Video bandwidth60 Hz
    Scan interval1,99 s
    DDC2B supportYes
    HDCPYes
    Power on detectionYes
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal
    LED indicatorsUSB, Yes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    On Screen Display (OSD)No
    Power sourceDC
    DC input voltage5.3 V
    Power consumption (typical)10.7 W
    Windows operating systems supportedYes
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Other operating systems supportedYes
    Sustainability certificatesRoHS
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Width270 mm
    Depth88 mm
    Height55.5 mm
    Weight940 g
    Cables includedDC, KVM
    Quick installation guideYes
    ManualYes
    Harmonized System (HS) code85176200
    Description
    ATEN CS1764A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: USB, Yes. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 10.7 W. Sustainability certificates: RoHS
    manufacturerATEN
    product groupKVM switches / PC shares
    product typeKVM-Switch, DVI
    colourblack
    weight0.94 kg
    height of packaging (single piece)210 mm
    width of packaging (single piece)100 mm
    depth of packaging (single piece)350 mm
    package weight (single piece)2.413 kg
    gross weight2.413
    current catalog edition24.1
    current catalog page3.10
    scope of delivery1x CS1764A USB 2.0 DVI KVMP™ Switch, 4x KVM Cable (DVI-D,...
    height270 mm
    width87 mm
    depth55 mm
    dimensions (hxwxd)270 x 87 x 55 mm
    material (casing)Metal
    quantity of pcs4
    supported pc-systemsUSB
    pc: monitor connection4x DVI F
    pc: mouse/keyboard connectionUSB
    quantity of digital consoles1
    print button on deviceyes
    switching over hot keysKeyboard
    integrated hubyes
    19" compatibleno
    cascadableno
    max. resolution (nominal)1920x1200
    colour (design profile)black
    power supply unit requiredyes
    analogue console: monitor connection1x DVI F
    analogue console: mouse/keyboard connectionUSB
    quantity of usb-hub ports2
    pc: connection on moulded cablesno
    quantity of analogue consoles1
    integrated consoleno
    switching over scan runyes
    switching over osdno
    keyboard/mouse emulationyes
    mains connectionAppliance Europlug, Type-C
