    PrevAten CS22D KVM switch Black
    NextATEN CS64US not categorized
    Manufacturer: ATEN

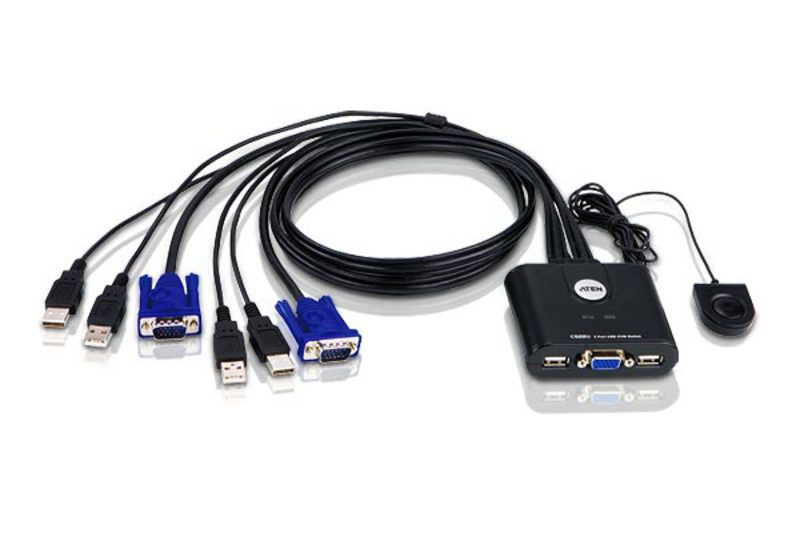

    ATEN CS22U KVM switch Black


    €25.23 incl tax

    SKU: ST02835325
    Manufacturer part number: CS22U
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    PL

    Products specifications
    Properties USB
    No. of devices (max)2
    Hot SwapYes
    Console Ports1x Video D-Sub 15pin Female
    Console Ports2x USB Type A Żeński
    PC connectors2x Video D-Sub 15pin Male
    PC connectors4x USB Type A Male
    Resolution2048 x 1536 (QXGA)
    Accessories included

    1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
    1x instrukcja
    Dimensions

    8.24 x 7.01 x 2.46 cm
    Weight0.3 (kilogram)
    DesignationCE+WEEE
    Width160
    Height230
    Depth60
    Weight400
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console portsUSB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity2
    USB hubYes
    USB 2.0 Type-A hub ports quantity4
    USB connector typeUSB Type-A
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    DDC2B supportYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    Cable length0.9 m
    Remote switch cable length1.8 m
    LED indicatorsYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.14 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width82.4 mm
    Depth70.1 mm
    Height24.6 mm
    Weight300 g
    Quick installation guideYes
    Description
    ATEN CS22U. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic, Cable length: 0.9 m. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
    manufacturerATEN
    product groupKVM switches / PC shares
    product typeKVM-Switch, VGA
    colourblack
    weight0.3 kg
    height of packaging (single piece)60 mm
    width of packaging (single piece)160 mm
    depth of packaging (single piece)230 mm
    package weight (single piece)0.374 kg
    gross weight0.374
    current catalog edition24.1
    current catalog page3.06
    technical particularityLED display for easy status monitoring
    scope of delivery1x CS22U 2-Port USB Cable KVM Switch with Remote Port Sel...
    height2.46 cm
    width7.01 mm
    depth8.24 mm
    material (casing)Plastic
    quantity of pcs2
    supported pc-systemsUSB
    pc: monitor connection2x HD 15pin M
    pc: mouse/keyboard connection2x USB Type A M
    print button on deviceyes
    switching over hot keysKeyboard
    integrated hubno
    19" compatibleno
    cascadableno
    hot plug compatibleno
    max. resolution (nominal)2048 x 1536
    power supply unit requiredno
    analogue console: monitor connection1x HD 15pin F
    analogue console: mouse/keyboard connection2x USB Type A F
    quantity of analogue consoles1
    integrated consoleno
    switching over scan runyes
    switching over osdno
    keyboard/mouse emulationno
    monitor size of integrated consolenot applicable
    keyboard layoutnot applicable
    trackball/touchpad integrated consolenot applicable
    Description

    Products specifications
    Properties USB
    No. of devices (max)2
    Hot SwapYes
    Console Ports1x Video D-Sub 15pin Female
    Console Ports2x USB Type A Żeński
    PC connectors2x Video D-Sub 15pin Male
    PC connectors4x USB Type A Male
    Resolution2048 x 1536 (QXGA)
    Accessories included

    1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
    1x instrukcja
    Dimensions

    8.24 x 7.01 x 2.46 cm
    Weight0.3 (kilogram)
    DesignationCE+WEEE
    Width160
    Height230
    Depth60
    Weight400
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console portsUSB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity2
    USB hubYes
    USB 2.0 Type-A hub ports quantity4
    USB connector typeUSB Type-A
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    DDC2B supportYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    Cable length0.9 m
    Remote switch cable length1.8 m
    LED indicatorsYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.14 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width82.4 mm
    Depth70.1 mm
    Height24.6 mm
    Weight300 g
    Quick installation guideYes
    Description
    ATEN CS22U. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic, Cable length: 0.9 m. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
    manufacturerATEN
    product groupKVM switches / PC shares
    product typeKVM-Switch, VGA
    colourblack
    weight0.3 kg
    height of packaging (single piece)60 mm
    width of packaging (single piece)160 mm
    depth of packaging (single piece)230 mm
    package weight (single piece)0.374 kg
    gross weight0.374
    current catalog edition24.1
    current catalog page3.06
    technical particularityLED display for easy status monitoring
    scope of delivery1x CS22U 2-Port USB Cable KVM Switch with Remote Port Sel...
    height2.46 cm
    width7.01 mm
    depth8.24 mm
    material (casing)Plastic
    quantity of pcs2
    supported pc-systemsUSB
    pc: monitor connection2x HD 15pin M
    pc: mouse/keyboard connection2x USB Type A M
    print button on deviceyes
    switching over hot keysKeyboard
    integrated hubno
    19" compatibleno
    cascadableno
    hot plug compatibleno
    max. resolution (nominal)2048 x 1536
    power supply unit requiredno
    analogue console: monitor connection1x HD 15pin F
    analogue console: mouse/keyboard connection2x USB Type A F
    quantity of analogue consoles1
    integrated consoleno
    switching over scan runyes
    switching over osdno
    keyboard/mouse emulationno
    monitor size of integrated consolenot applicable
    keyboard layoutnot applicable
    trackball/touchpad integrated consolenot applicable
    Description
