Manufacturer: SHELLY

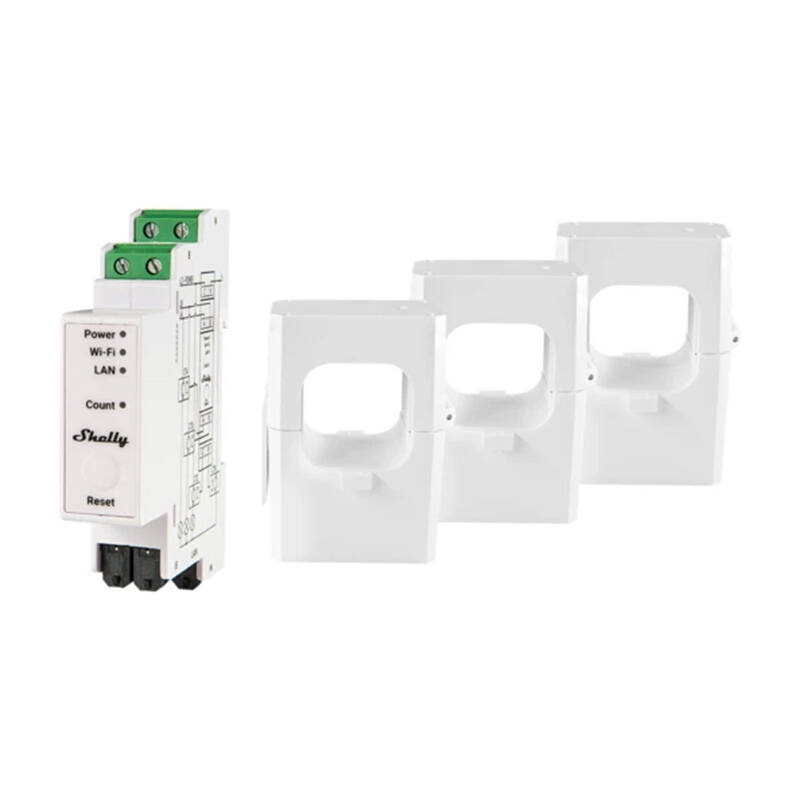

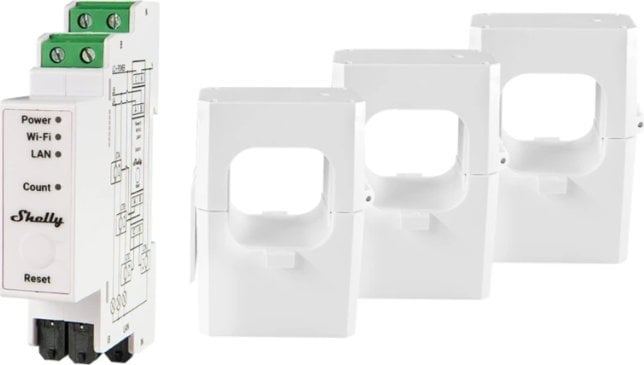

Shelly 2-phase Energy Meter Shelly PRO 3EM 400A Wi-Fi

€237.85 incl tax

SKU: ST07959406

Manufacturer part number: Pro3EM-400

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 5 days	44	€237.85 incl tax
	3 - 6 days	44	€244.52 incl tax
PL	8 - 15 days	53	€309.29 incl tax

Qty:

Specifications

Products specifications

Manufacturer Model AC Power Supply Voltage Power Consumption Internal Temperature Sensor Voltemeters (RMS for Each Phase) Voltemeter Accuracy Amperemeters (RMS via CT for Each Phase and Neutral) Compatible Current Transformer (CT) Ratings Amperemeter Accuracy Power and Energy Meters Channel-to-Channel Calibration at Minimum Load No-Load Threshold Measurement Data Storage Data Export Wi-Fi Protocol Wi-Fi Range Bluetooth Protocol Bluetooth Range CPU Flash Memory Ambient Temperature Humidity Maximum Altitude Dimensions Weight Mounting Housing Material

Description
Description	2-Channel Shelly PRO 3EM 400A WiFi Electrical Energy Consumption Meter Shelly Pro 3EM 400A is a professional, three-phase electrical energy consumption meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy and real-time voltage, current, and power for each phase. It stores data for the last 60 days with a one-minute resolution for each phase, enabling precise analysis. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
Shelly
SPEM-003CEBEU400
110 - 240 V, 50/60 Hz
< 3 W
Yes
100 - 260 V
±1%
0 - 400 A
CT-400A
±1% (5 - 400 A), ±2% (0 - 5 A)
Active and apparent power, active and apparent energy, power factor, basic active energy, and basic reactive energy
5000 W per channel
30 VA per channel
At least 60 days with 1-minute data resolution
CSV format for stored PQ values, JSON export via RPC
802.11 b/g/n
Up to 30 m indoors and 50 m outdoors
4.2
Up to 10 m indoors and 30 m outdoors
ESP32-D0WDQ6
16 MB
-20°C to +40°C
30% to 70% RH
2000 m
94 x 19 x 69 ±0.5 mm
62 ±1 g
DIN rail
Plastic

Products specifications

Description
Description	2-Channel Shelly PRO 3EM 400A WiFi Electrical Energy Consumption Meter Shelly Pro 3EM 400A is a professional, three-phase electrical energy consumption meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy and real-time voltage, current, and power for each phase. It stores data for the last 60 days with a one-minute resolution for each phase, enabling precise analysis. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
Shelly
SPEM-003CEBEU400
110 - 240 V, 50/60 Hz
< 3 W
Yes
100 - 260 V
±1%
0 - 400 A
CT-400A
±1% (5 - 400 A), ±2% (0 - 5 A)
Active and apparent power, active and apparent energy, power factor, basic active energy, and basic reactive energy
5000 W per channel
30 VA per channel
At least 60 days with 1-minute data resolution
CSV format for stored PQ values, JSON export via RPC
802.11 b/g/n
Up to 30 m indoors and 50 m outdoors
4.2
Up to 10 m indoors and 30 m outdoors
ESP32-D0WDQ6
16 MB
-20°C to +40°C
30% to 70% RH
2000 m
94 x 19 x 69 ±0.5 mm
62 ±1 g
DIN rail
Plastic
