Manufacturer: SHELLY

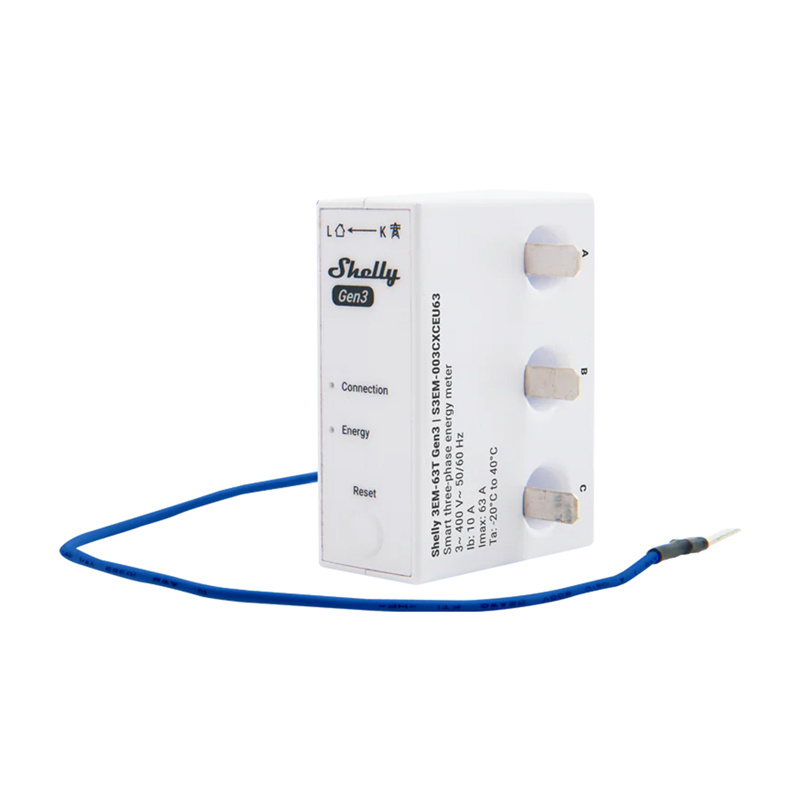

Shelly 3EM-63T Gen3 1|3-channel WiFi energy meter

€82.18 incl tax

SKU: ST09550426

Manufacturer part number: 3EM-63TGen3

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
		3 - 6 days	260	€82.18 incl tax

Qty:

Specifications

Products specifications

ManufacturerModelDimensionsCable lengthWeightDiameter of conductive holeMountingHousing material:Housing color:Operating temperatureHumidity:Max. installation altitude:Power supplyPower consumptionExternal protectionInternal temperature sensorVoltmeters (RMS for each phase)Accuracy of voltmetersAmmeters (RMS via integrated current transformer for each phase)Accuracy of ammetersPower and energy metersMinimum load thresholdMeasurement data storageData exportWi-Fi protocolWi-Fi RF bandwidthMax Wi-Fi RF signal strengthWi-Fi connection rangeBluetooth protocolBluetooth RF bandMax. Bluetooth RF signal strengthBluetooth connection rangeProcessor (CPU)Flash memorySchedulesWebhooks (URL shares)Scripts:MQTT

Description
Description	Shelly 3EM-63T Gen3 1/3-channel WiFi energy meter (flat terminal) The Shelly 3EM-63T Gen3 is a compact 1/3-channel energy meter designed to monitor three-phase installations or three independent single-phase circuits. With its flat terminals and housing designed to be mounted above or below an overcurrent circuit breaker, it easily fits into standard switchboards. This small device is ideal for homes, apartments, businesses and photovoltaic installations - wherever precise control of energy consumption is important. Versatility of applications - one module, many possibilities Shelly 3EM-63T Gen3 is a solution for everyone - whether you want to monitor energy consumption in the household, assign consumption to specific departments in the company, or supervise power production from PV panels. The device supports both three-phase installations and three independent single-phase lines, allowing it to fit almost any configuration. In addition, thanks to 4-quadrant metering, the meter records both energy consumed and energy given off, which is useful, for example, in photovoltaic and hybrid systems. Intuitive operation, extensive integration The module connects to the network via Wi-Fi and Bluetooth - without the need for an external gateway. It can be managed from the Shelly Smart Control app, web interface or via MQTT, HTTP and WebSocket protocols. All incoming connections are protected by TLS encryption. In turn, data can be exported in CSV or JSON format. Monitoring and analysis without interruption The Shelly 3EM-63T Gen3 offers measurement of voltage, current, active and apparent power, power factor and energy - with accuracy that meets Class B (IEC 62053-21). A built-in clock maintains the correct time stamps even if internet access is lost. Metering data is recorded locally at 1-minute intervals and stored for at least 7 days, giving you access to your consumption history even if you are temporarily not connected to the cloud. Automation and security Shelly 3EM-63T Gen3 allows you to create schedules (up to 20) and configure webhooks (up to 20, with up to 5 URLs each). What's more, local automation allows, for example, to respond to instantaneous energy consumption and trigger specific actions, and a built-in "no load threshold" prevents energy counting at very low consumption (less than 30 VA per channel). Ready for energy from the sun The Shelly 3EM-63T Gen3 is also ideal for monitoring photovoltaic systems. It allows simultaneous tracking of energy production and consumption, allowing you to accurately match the operation of equipment to the momentary availability of power from the panels. This makes it easier to reduce the intake from the grid and optimize self-consumption - for example, running energy-intensive equipment at the peak of sunshine. Clear information and full control The device features LEDs to indicate its current status (including Wi-Fi connectivity and OTA updates) and a single button to quickly enter configuration mode or reset to factory settings. It also has a built-in temperature sensor. In addition, it is very easy to install. Shelly Smart Control app The meter works with the Shelly Smart Control app, which allows you to remotely manage the device, view energy consumption and create schedules and automations. With its help you can also monitor data, view measurement history and track energy costs.
Shelly
3EM-63TGen3
31 × 54 × 42 mm (without cable)
260 mm (including flat terminal)
52 g (with wire)
8 mm
Above or below overcurrent circuit breakers on DIN rail
Plastic
White
From -20°C to 40°C
30% - 70% RH
2000 m
220-240 V~ 50/60 Hz (between LA and N)
< 2 W
63 A, characteristics B or C, short-circuit current 6 kA, energy limitation class 3
Yes
220-240 V~ 50/60 Hz
Better than ±1%
0-63 A (saturation 130 A)
±1% (2-63 A), ±2% (1-2 A), ±5% (0-1 A)
Active and apparent power, active and apparent energy, power factor, basic active and reactive energy
30 VA
At least 7 days with data resolution of 1 min
CSV for recorded PQ values, JSON via RPC
802.11 b/g/n
2401-2483 MHz
< 20 dBm
Up to 30 m indoors / up to 50 m outdoors (depending on local conditions)
4.2
2400-2483.5 MHz
< 4 dBm
Up to 10 m indoors / 30 m outdoors (depending on local conditions)
ESP-Shelly-C38F
8 MB
Up to 20
Up to 20, up to 5 URLs per webhook
Yes
Yes

Products specifications

Description
Description	Shelly 3EM-63T Gen3 1/3-channel WiFi energy meter (flat terminal) The Shelly 3EM-63T Gen3 is a compact 1/3-channel energy meter designed to monitor three-phase installations or three independent single-phase circuits. With its flat terminals and housing designed to be mounted above or below an overcurrent circuit breaker, it easily fits into standard switchboards. This small device is ideal for homes, apartments, businesses and photovoltaic installations - wherever precise control of energy consumption is important. Versatility of applications - one module, many possibilities Shelly 3EM-63T Gen3 is a solution for everyone - whether you want to monitor energy consumption in the household, assign consumption to specific departments in the company, or supervise power production from PV panels. The device supports both three-phase installations and three independent single-phase lines, allowing it to fit almost any configuration. In addition, thanks to 4-quadrant metering, the meter records both energy consumed and energy given off, which is useful, for example, in photovoltaic and hybrid systems. Intuitive operation, extensive integration The module connects to the network via Wi-Fi and Bluetooth - without the need for an external gateway. It can be managed from the Shelly Smart Control app, web interface or via MQTT, HTTP and WebSocket protocols. All incoming connections are protected by TLS encryption. In turn, data can be exported in CSV or JSON format. Monitoring and analysis without interruption The Shelly 3EM-63T Gen3 offers measurement of voltage, current, active and apparent power, power factor and energy - with accuracy that meets Class B (IEC 62053-21). A built-in clock maintains the correct time stamps even if internet access is lost. Metering data is recorded locally at 1-minute intervals and stored for at least 7 days, giving you access to your consumption history even if you are temporarily not connected to the cloud. Automation and security Shelly 3EM-63T Gen3 allows you to create schedules (up to 20) and configure webhooks (up to 20, with up to 5 URLs each). What's more, local automation allows, for example, to respond to instantaneous energy consumption and trigger specific actions, and a built-in "no load threshold" prevents energy counting at very low consumption (less than 30 VA per channel). Ready for energy from the sun The Shelly 3EM-63T Gen3 is also ideal for monitoring photovoltaic systems. It allows simultaneous tracking of energy production and consumption, allowing you to accurately match the operation of equipment to the momentary availability of power from the panels. This makes it easier to reduce the intake from the grid and optimize self-consumption - for example, running energy-intensive equipment at the peak of sunshine. Clear information and full control The device features LEDs to indicate its current status (including Wi-Fi connectivity and OTA updates) and a single button to quickly enter configuration mode or reset to factory settings. It also has a built-in temperature sensor. In addition, it is very easy to install. Shelly Smart Control app The meter works with the Shelly Smart Control app, which allows you to remotely manage the device, view energy consumption and create schedules and automations. With its help you can also monitor data, view measurement history and track energy costs.
Shelly
3EM-63TGen3
31 × 54 × 42 mm (without cable)
260 mm (including flat terminal)
52 g (with wire)
8 mm
Above or below overcurrent circuit breakers on DIN rail
Plastic
White
From -20°C to 40°C
30% - 70% RH
2000 m
220-240 V~ 50/60 Hz (between LA and N)
< 2 W
63 A, characteristics B or C, short-circuit current 6 kA, energy limitation class 3
Yes
220-240 V~ 50/60 Hz
Better than ±1%
0-63 A (saturation 130 A)
±1% (2-63 A), ±2% (1-2 A), ±5% (0-1 A)
Active and apparent power, active and apparent energy, power factor, basic active and reactive energy
30 VA
At least 7 days with data resolution of 1 min
CSV for recorded PQ values, JSON via RPC
802.11 b/g/n
2401-2483 MHz
< 20 dBm
Up to 30 m indoors / up to 50 m outdoors (depending on local conditions)
4.2
2400-2483.5 MHz
< 4 dBm
Up to 10 m indoors / 30 m outdoors (depending on local conditions)
ESP-Shelly-C38F
8 MB
Up to 20
Up to 20, up to 5 URLs per webhook
Yes
Yes
