    Manufacturer: SHELLY

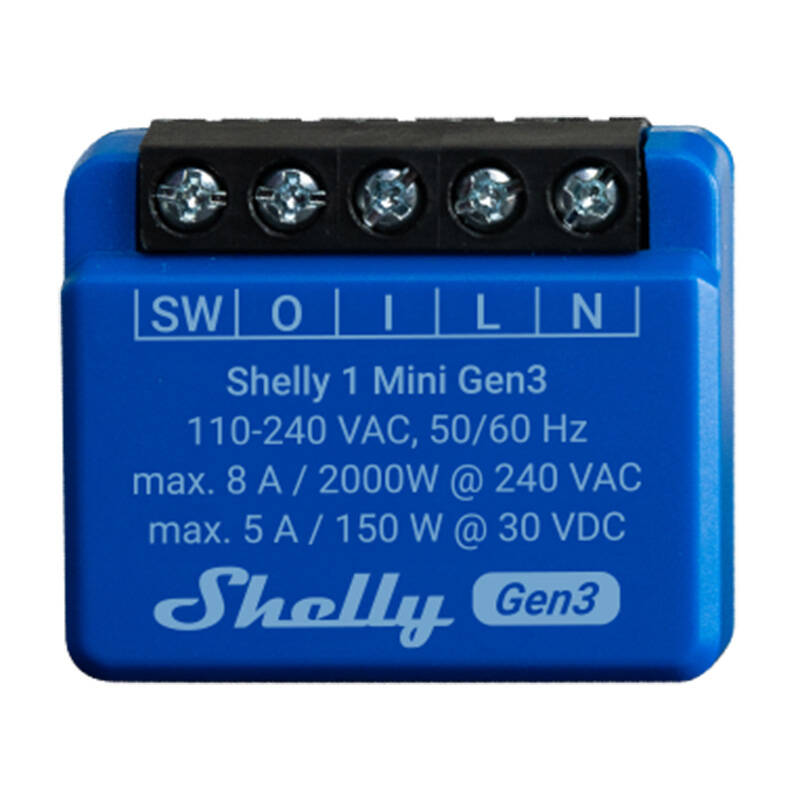

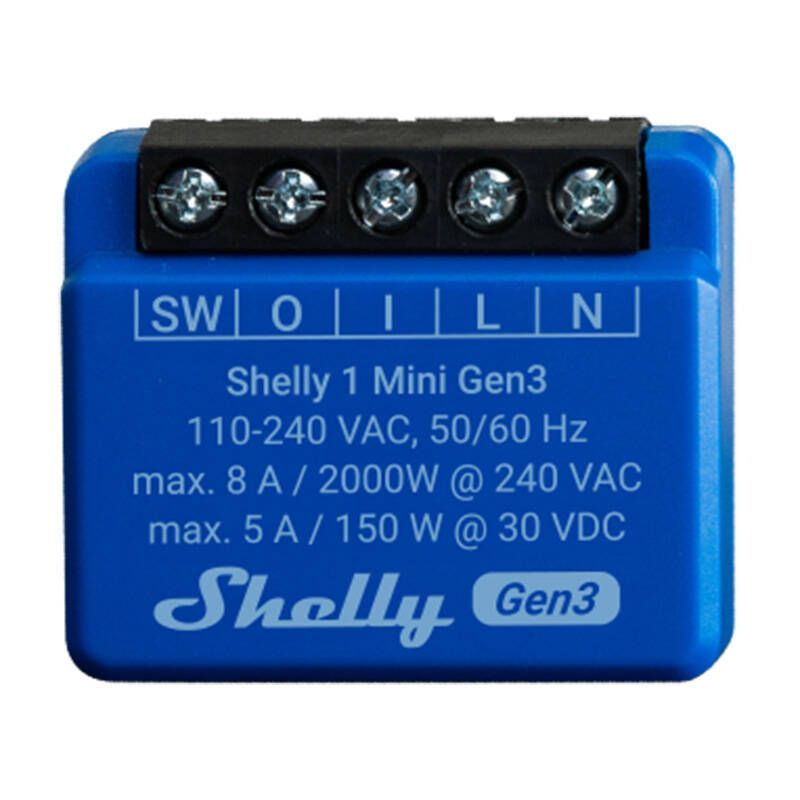

    Shelly Controller Shelly 1 Mini Gen3


    €17.94 incl tax

    SKU: ST09363444
    Manufacturer part number: 1MiniGen3
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    Manufacturer Model Power supply Relay: Power consumption External protection Max. switching voltage Max. switching current Max. output power Internal temperature sensor Wi-Fi communication protocol Wi-Fi range Bluetooth wireless communication protocol Bluetooth range CPU Flash Schedules Webhooks (URL Actions) Scripts MQTT UDP Advanced scheduling KVS Dimensions Weight Conductor cross section Length of exposed conductor Mounting Housing material Ambient operating temperature Humidity Maximum altitude.
    Description

    Shelly 1 Mini Gen3 Controller

    Discover a new dimension of control in your home with the Shelly 1 Mini Gen3! This small, smart controller offers the ability to remotely control devices right from your smartphone, tablet, computer or home automation system. It is so small that it will fit into standard electrical boxes, outlets, light switches and other space-constrained areas. It is equipped with a more powerful processor and larger memory, resulting in more efficient operation.

    Maximum performance in a compact form factor

    The Shelly 1 Mini Gen3 is an upgraded version of the popular Shelly Plus 1 Mini, featuring an advanced processor and increased memory. This makes the device run even faster and more reliably. Its compact size allows for easy installation in standard wall boxes, behind electrical outlets or light switches, even where space is limited.

    Full control over devices

    Controlling appliances is now easier than ever! Turn your appliances on and off remotely, automate their operation and enjoy the convenience that Shelly 1 Mini Gen3 provides, no matter where you are - all you need is an Internet connection. The controller is also compatible with popular home automation platforms, including Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can manage your appliances by voice!

    Expand the scope of your network

    With the Shelly 1 Mini Gen3, you can also extend the range of your Wi-Fi network for IoT devices. This device acts as a signal booster, picking up Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices will always stay connected.

    Your remote control center

    The device supports both Wi-Fi and Bluetooth 4.2, which means it can easily integrate into your existing ecosystem. It also acts as a BLE gateway, allowing communication between Shelly BLU devices and the Shelly ecosystem. What's more, with the ability to monitor humidity and temperature with the Shelly 1 Mini Gen3, you have full control over the environment in your home. You can adjust the parameters to your preferences for maximum comfort.

    Integrated solutions

    With the ability to create advanced schedules, you can program your electrical appliances to operate exactly as you need them to. Let the lights turn on at a specific time of day, and let the heating adjust to your schedule - Shelly 1 Mini Gen3 is ready to meet your expectations.

    Shelly
    1 Mini Gen3
    110 - 240 VAC
    Dry, NO (normally open) contact, 1-pole, micro contact
    < 1.2 W
    B or C circuit breaker characteristics, max. 10 A rated current, min. 6 kA short-circuit current circuit breaker, energy limitation class 3
    240 VAC, 30 VDC
    8 A/240 VAC, 5 A/30 VDC
    2000 W/240 VAC, 150 W/30 VDC
    Yes
    802.11 b/g/n
    Up to 30 m indoors and 50 m outdoors
    4.2
    Up to 10 m indoors and 30 m outdoors
    ESP-Shelly-C38F
    8 MB
    20
    20 with 5 URLs per action
    Yes
    Yes
    Yes
    Yes
    Yes
    29x34x16 ±0.5 mm
    19 ±1 g
    0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and bootlace type insulation terminations)
    6 to 7 mm
    In a wall box
    Plastic
    -20 °C to 40 °C
    30 % to 70 % RH
    2000 m
