| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Side window | N |
| Number of 2.5" bays | 2 |
| Rack mounting | Y |
| Rack capacity | 1U |
| Reset button | Y |
| LED indicators | HDD, LAN, Power |
| Certification | USA - UL, FCC, CUL, CCC, EN 60950/IEC 60950, CE, TUV, 80Plus |
| Power supply included | Y |
| Power supply | 200 W |
| Audio input | N |
| Audio output | N |
| Supported HDD sizes | 2.5" |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
| Depth | 287 mm |
| Height | 43 mm |
| Package weight | 5 kg |
| Supported HDD interfaces | SAS, Serial ATA |
| Power requirements | 100 - 240 VAC, 50/60 Hz |
| Power LED | Y |
| Expansion slots | 1 x LP PCI |
| Description |

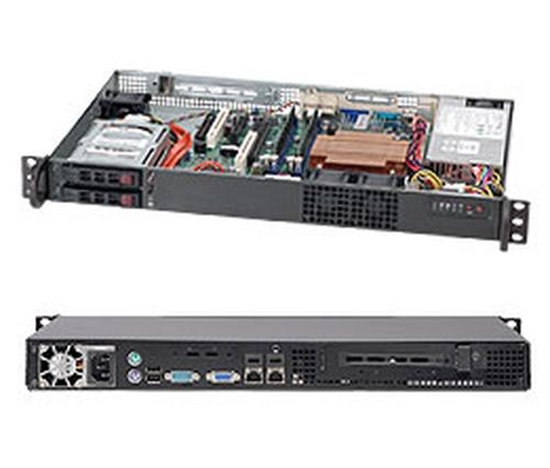

| Supermicro SuperChassis 510T-203B. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 200 W. Supported HDD sizes: 2.5". Width: 437 mm, Depth: 287 mm, Height: 43 mm. Package weight: 5 kg |
