    Manufacturer: TELTONIKA

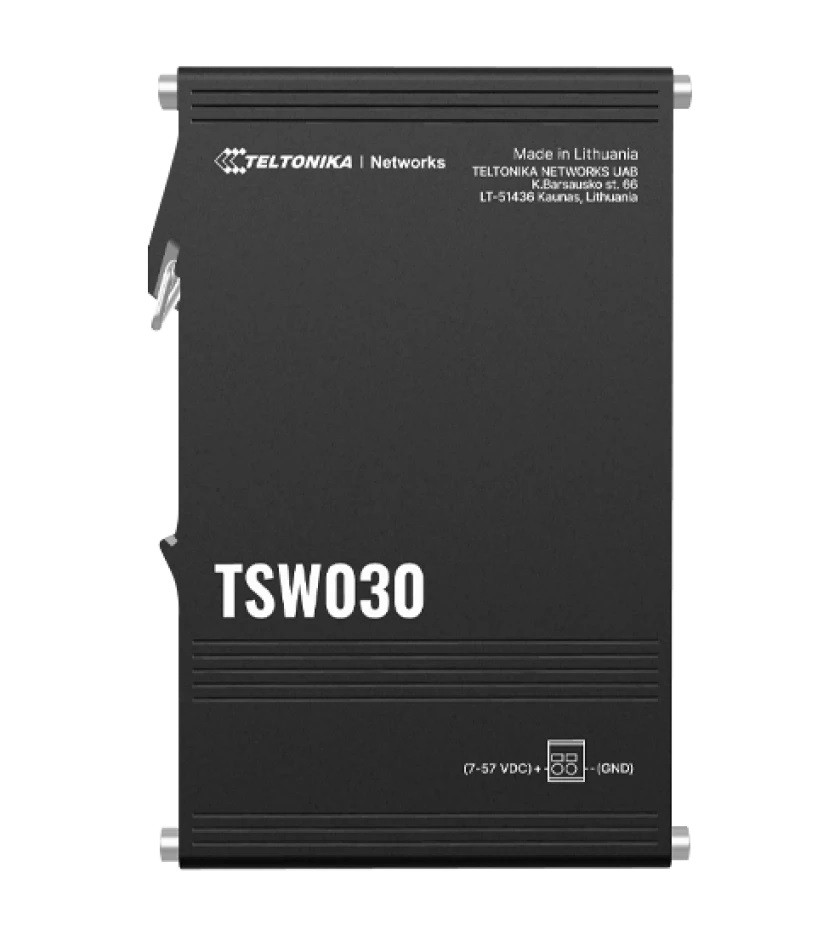

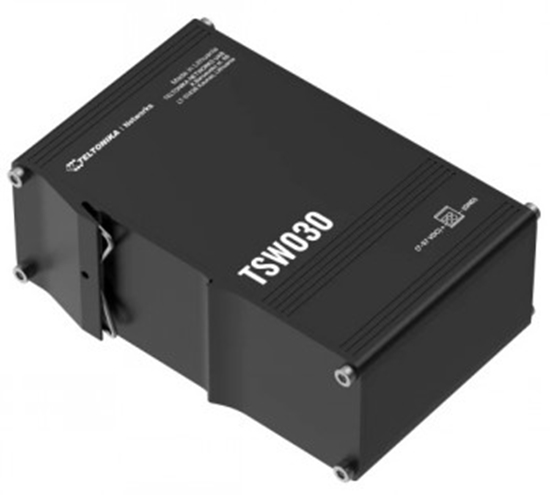

    Teltonika TSW030 8 Port Ethernet Switch


    €52.09 incl tax

    SKU: ST08169914
    Manufacturer part number: TSW030000000
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    DescriptionTELTONIKA IOT SWITCH TSW030
    CountryofOriginLITHUANIA
    TariffHeading85176200
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW030000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW030000000.jpg
    AdditionalPictures TSW030000000_4.jpg TSW030000000_3.jpg TSW030000000_2.jpg
    Weight0.280000
    Height45.000000
    Length130.000000
    Width80.000000
    BoxSize0
    PalletSize0
    MAC address table, entries2K
    Weight, g256
    Ethernet LAN (RJ-45) ports quantity8
    IP classificationIP30
    Bandwidth, Gbit/s20
    Power over Ethernet (PoE) SupportNo
    Operating temperature range (T-T), �C- 40 - 75
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Power consumption, W0.5
    Power consumption (max.), W1.5
    LED indicators1 x Power LED, 16 x ETH status LEDs
    Ethernet LAN data transfer rates, Mbit/s10/100
    Networking standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    Ports quantity8
    Dimensions W x D x H, mm113.1 x 74.6 x 41.2
    power over ethernet (poe)nein
    manufacturerTeltonika
    product groupIndustrial Networking
    product typeNetzwerk-Switch
    colourblack
    weight256
    height of packaging (single piece)50
    width of packaging (single piece)90
    depth of packaging (single piece)140
    package weight (single piece)0.274
    gross weight0.274
    height42
    width114
    depth75
    operating temperature min.-40
    operating temperature max.75
    quantity of ports8
    lan (mbps)10/100
    mains connectionSystemstecker, Proprietär
    power supplyExternes Netzteil
    protection class (ip code)IP30
    network standardFast Ethernet
    fast ethernet ports rj-458
    Description

    Der TSW030 ist ein kosteneffizienter Unmanaged Ethernet-Switch mit acht 10/100 RJ45-Ports und integrierter DIN-Schienenbefestigung. Dieser kompakte und robuste 8-Port Switch verfügt über einen 2-poligen Stromeingang und einen geringen Stromverbrauch von bis zu 0,5W im Leerlauf und maximal 1,5W im Betrieb. Damit eignet sich dieser Plug-and-Play-Switch ideal für industrielle Anwendungen, bei denen bis zu acht Geräte angeschlossen werden müssen.

    • 2-poliger Stromeingang
    • Integrierte DIN Halterung
    • 8 x 10/100 Ethernet Anschlüße
    Gross depth (mm)75.00
    Gross depth (mm)75.00
    Gross height (mm)41.00
    Gross height (mm)41.00
    Gross weight0.38
    Gross width (mm)113.00
    Gross width (mm)113.00
    Net weight0.26
    Tare weight (kg)0.12
    Tare weight (kg)0.12
    Volume (m3)0.00
    Volume (m3)0.00

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    DescriptionTELTONIKA IOT SWITCH TSW030
    CountryofOriginLITHUANIA
    TariffHeading85176200
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW030000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW030000000.jpg
    AdditionalPictures TSW030000000_4.jpg TSW030000000_3.jpg TSW030000000_2.jpg
    Weight0.280000
    Height45.000000
    Length130.000000
    Width80.000000
    BoxSize0
    PalletSize0
    MAC address table, entries2K
    Weight, g256
    Ethernet LAN (RJ-45) ports quantity8
    IP classificationIP30
    Bandwidth, Gbit/s20
    Power over Ethernet (PoE) SupportNo
    Operating temperature range (T-T), �C- 40 - 75
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Power consumption, W0.5
    Power consumption (max.), W1.5
    LED indicators1 x Power LED, 16 x ETH status LEDs
    Ethernet LAN data transfer rates, Mbit/s10/100
    Networking standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    Ports quantity8
    Dimensions W x D x H, mm113.1 x 74.6 x 41.2
    power over ethernet (poe)nein
    manufacturerTeltonika
    product groupIndustrial Networking
    product typeNetzwerk-Switch
    colourblack
    weight256
    height of packaging (single piece)50
    width of packaging (single piece)90
    depth of packaging (single piece)140
    package weight (single piece)0.274
    gross weight0.274
    height42
    width114
    depth75
    operating temperature min.-40
    operating temperature max.75
    quantity of ports8
    lan (mbps)10/100
    mains connectionSystemstecker, Proprietär
    power supplyExternes Netzteil
    protection class (ip code)IP30
    network standardFast Ethernet
    fast ethernet ports rj-458
    Description

    Der TSW030 ist ein kosteneffizienter Unmanaged Ethernet-Switch mit acht 10/100 RJ45-Ports und integrierter DIN-Schienenbefestigung. Dieser kompakte und robuste 8-Port Switch verfügt über einen 2-poligen Stromeingang und einen geringen Stromverbrauch von bis zu 0,5W im Leerlauf und maximal 1,5W im Betrieb. Damit eignet sich dieser Plug-and-Play-Switch ideal für industrielle Anwendungen, bei denen bis zu acht Geräte angeschlossen werden müssen.

    • 2-poliger Stromeingang
    • Integrierte DIN Halterung
    • 8 x 10/100 Ethernet Anschlüße
    Gross depth (mm)75.00
    Gross depth (mm)75.00
    Gross height (mm)41.00
    Gross height (mm)41.00
    Gross weight0.38
    Gross width (mm)113.00
    Gross width (mm)113.00
    Net weight0.26
    Tare weight (kg)0.12
    Tare weight (kg)0.12
    Volume (m3)0.00
    Volume (m3)0.00
