    • Uni-T UT511 High-Voltage Insulation Resistance Tes
    Manufacturer: UNI-T

    Uni-T UT511 High-Voltage Insulation Resistance Tes


    €139.82 incl tax

    SKU: ST10170106
    Manufacturer part number: UT511
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    Description

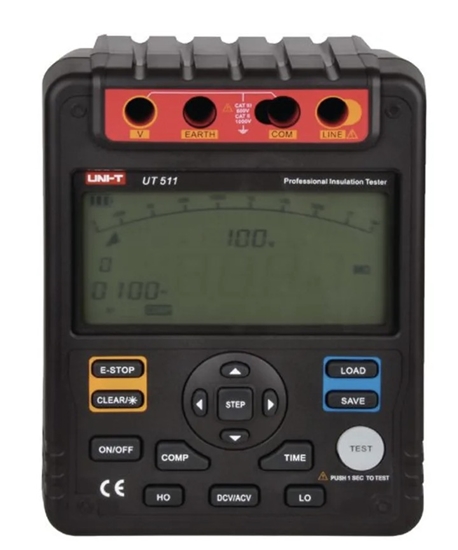

    Uni-T UT511 High-Voltage Insulation Resistance Tester

    The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, facilitating a quick assessment of insulation condition without the need for additional software.

    Suitable for standard measurements

    The test voltage range of 100–1000 V makes the UT511 well-suited for daily service and inspection work. In practice, this means convenient testing of installations, cables, or motors without entering the ranges typical of advanced high-voltage testers.

    Extended insulation diagnostics

    The PI and DAR functions allow for a more accurate assessment of insulation condition over time. This makes it possible not only to detect a fault but also to notice a gradual deterioration of parameters, which is important during periodic inspections.

    Clear display and user-friendly operation

    The large display with a bar graph provides a quick overview of value changes during measurement. The backlight facilitates work in low-light conditions, and intuitive operation reduces setup time.

    Safe field operation

    Automatic discharge after measurement and high-voltage warning reduce the risk of working with a charged object. Additional messages regarding out-of-range readings and low battery help prevent erroneous readings.

    Included

    • Uni-T UT511 tester
    • Red test lead (two-pin) with alligator clip
    • Test leads (single-pin) with alligator clips (2 pieces)
    • AC adapter
    • Battery pack



    ManufacturerUni-TModelUT511Test voltages100 V / 250 V / 500 V / 1000 VInsulation resistance measurement rangeup to 10 GΩAccuracy±(3% + 5)Display9999 + bar graph (30 segments)Data memory18 measurementsAdditional featuresContinuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicatorPower supply8 × 1.5 V (LR14)Dimensions202 × 155 × 94 mmWeightapprox. 1.2 kg
    Description
    Uni-T UT511 High-Voltage Insulation Resistance Tester The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, which facilitates quick assessment of insulation condition without the need for additional software. Automatic discharge after measurement and high-voltage indication reduce the risk of working with a charged object. Additional messages for out-of-range and low battery help prevent erroneous readings. Included Uni-T UT511 Tester Red test lead (two-pin) with alligator clip Test leads (single-pin) with alligator clips (2 pieces) Battery pack     Manufacturer Uni-T Model UT511 Test voltages 100 V / 250 V / 500 V / 1000 V Insulation resistance measurement range up to 10 GΩ Accuracy ±(3% + 5) Display 9999 + bar graph (30 segments) Data memory 18 measurements Additional features Continuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicator Power supply 8 × 1.5 V (LR14) Dimensions 202 × 155 × 94 mm Weight approx. 1.2 kg

    Products specifications
    Description

    Uni-T UT511 High-Voltage Insulation Resistance Tester

    The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, facilitating a quick assessment of insulation condition without the need for additional software.

    Suitable for standard measurements

    The test voltage range of 100–1000 V makes the UT511 well-suited for daily service and inspection work. In practice, this means convenient testing of installations, cables, or motors without entering the ranges typical of advanced high-voltage testers.

    Extended insulation diagnostics

    The PI and DAR functions allow for a more accurate assessment of insulation condition over time. This makes it possible not only to detect a fault but also to notice a gradual deterioration of parameters, which is important during periodic inspections.

    Clear display and user-friendly operation

    The large display with a bar graph provides a quick overview of value changes during measurement. The backlight facilitates work in low-light conditions, and intuitive operation reduces setup time.

    Safe field operation

    Automatic discharge after measurement and high-voltage warning reduce the risk of working with a charged object. Additional messages regarding out-of-range readings and low battery help prevent erroneous readings.

    Included

    • Uni-T UT511 tester
    • Red test lead (two-pin) with alligator clip
    • Test leads (single-pin) with alligator clips (2 pieces)
    • AC adapter
    • Battery pack



    ManufacturerUni-TModelUT511Test voltages100 V / 250 V / 500 V / 1000 VInsulation resistance measurement rangeup to 10 GΩAccuracy±(3% + 5)Display9999 + bar graph (30 segments)Data memory18 measurementsAdditional featuresContinuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicatorPower supply8 × 1.5 V (LR14)Dimensions202 × 155 × 94 mmWeightapprox. 1.2 kg
    Description
    Uni-T UT511 High-Voltage Insulation Resistance Tester The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, which facilitates quick assessment of insulation condition without the need for additional software. Automatic discharge after measurement and high-voltage indication reduce the risk of working with a charged object. Additional messages for out-of-range and low battery help prevent erroneous readings. Included Uni-T UT511 Tester Red test lead (two-pin) with alligator clip Test leads (single-pin) with alligator clips (2 pieces) Battery pack     Manufacturer Uni-T Model UT511 Test voltages 100 V / 250 V / 500 V / 1000 V Insulation resistance measurement range up to 10 GΩ Accuracy ±(3% + 5) Display 9999 + bar graph (30 segments) Data memory 18 measurements Additional features Continuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicator Power supply 8 × 1.5 V (LR14) Dimensions 202 × 155 × 94 mm Weight approx. 1.2 kg
