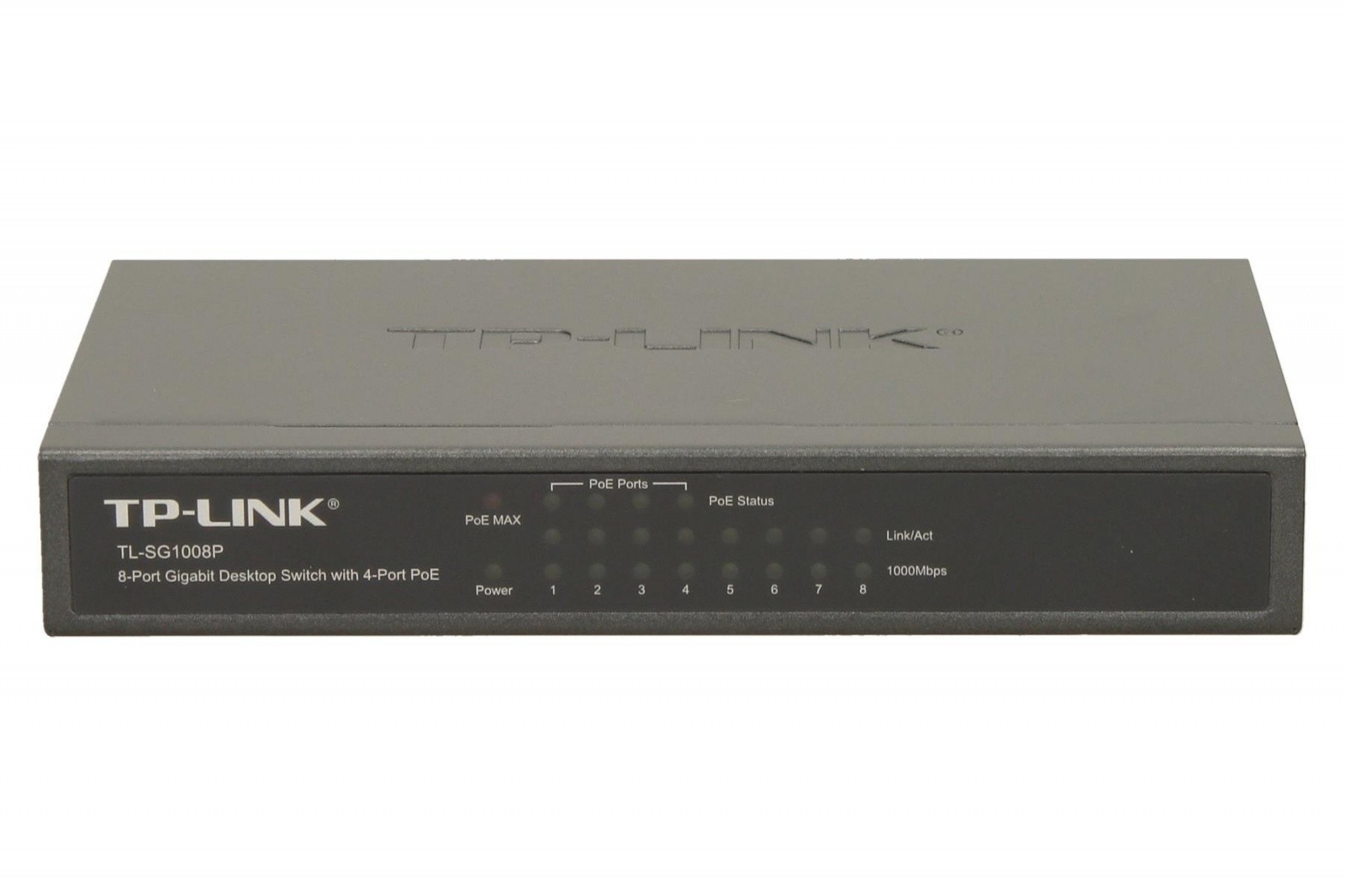

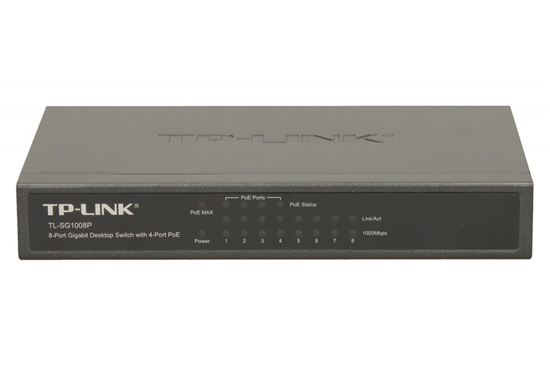

TP-Link TL-SG1008P

8-port PoE switch TL-SG1008P

The TL-SG1008P desktop switch has 8 RJ45 Gigabit Ethernet (1000 Mb/s) and Fast Ethernet (100 Mb/s) ports. Four ports provide Power over Ethernet, which automatically detects 802.3af compliant devices and supplies them with power. Power and data are transmitted via the Ethernet cable. This solution allows you to connect devices such as access points, cameras or IP phones in places where there is no access to power from the socket. The switch is also equipped with overload prevention system and port priority.

Specification:

8 portu PoE komutators TL-SG1008P

TL-SG1008P darbvirsmas komutatorim ir 8 RJ45 Gigabit Ethernet (1000 Mb/s) un Fast Ethernet (100 Mb/s) porti. Četri porti nodrošina Power over Ethernet, kas automātiski nosaka ar 802.3af saderīgas ierīces un apgādā tās ar strāvu. Jauda un dati tiek pārsūtīti, izmantojot Ethernet kabeli. Šis risinājums ļauj pieslēgt ierīces, piemēram, piekļuves punktus, kameras vai IP tālruņus vietās, kur nav pieejama strāva no kontaktligzdas. Slēdzis ir aprīkots arī ar pārslodzes novēršanas sistēmu un porta prioritāti.

Specifikacijas:

LAN standard : Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports : 8x [10/100/1000M (RJ45)]
Number of PoE ports : 4x [802.3af/at (1G)]
Auto MDI/MDI-X : Yes
Basic switching RJ-45 Ethernet ports quantity : 8
Basic switching RJ-45 Ethernet ports type : Gigabit Ethernet (10/100/1000)
Cables included : AC
Copper ethernet cabling technology : 1000BASE-T,100BASE-TX,10BASE-T
Flow control support : Yes
Full duplex : Yes
Gigabit Ethernet (copper) ports quantity : 8
LED indicators : Status
MAC address table : 4000
Networking standards : IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) : 10 - 90
Operating temperature (T-T) : 0 - 40
Power (W) : 50
Power connector : DC-in jack
Power consumption (typical) : 53
Power over Ethernet (PoE) : Yes
Power over Ethernet (PoE) ports quantity : 4
Power supply included : Yes
Rack mounting : No
Storage relative humidity (H-H) : 5 - 90
Storage temperature (T-T) : -40 - 70
Store-and-forward : Yes
Switching capacity : 16
Switching layer : 2

8-портовый PoE-коммутатор TL-SG1008P

Настольный коммутатор TL-SG1008P имеет 8 портов RJ45 Gigabit Ethernet (1000 Мбит/с) и Fast Ethernet (100 Мбит/с). Четыре порта обеспечивают питание через Ethernet, которое автоматически обнаруживает устройства, совместимые со стандартом 802.3af, и подает на них питание. Питание и данные передаются по кабелю Ethernet. Это решение позволяет подключать такие устройства, как точки доступа, камеры или IP-телефоны в местах, где нет доступа к питанию от розетки. Коммутатор также оснащен системой предотвращения перегрузок и приоритетом портов.

Технические характеристики:

LAN standard : Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports : 8x [10/100/1000M (RJ45)]
Number of PoE ports : 4x [802.3af/at (1G)]
Auto MDI/MDI-X : Yes
Basic switching RJ-45 Ethernet ports quantity : 8
Basic switching RJ-45 Ethernet ports type : Gigabit Ethernet (10/100/1000)
Cables included : AC
Copper ethernet cabling technology : 1000BASE-T,100BASE-TX,10BASE-T
Flow control support : Yes
Full duplex : Yes
Gigabit Ethernet (copper) ports quantity : 8
LED indicators : Status
MAC address table : 4000
Networking standards : IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) : 10 - 90
Operating temperature (T-T) : 0 - 40
Power (W) : 50
Power connector : DC-in jack
Power consumption (typical) : 53
Power over Ethernet (PoE) : Yes
Power over Ethernet (PoE) ports quantity : 4
Power supply included : Yes
Rack mounting : No
Storage relative humidity (H-H) : 5 - 90
Storage temperature (T-T) : -40 - 70
Store-and-forward : Yes
Switching capacity : 16
Switching layer : 2
