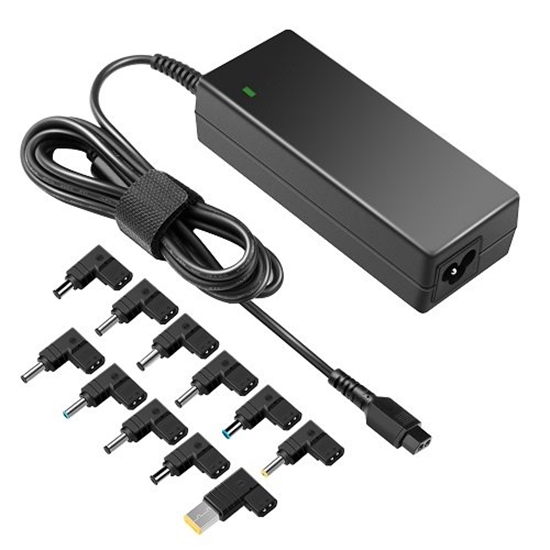

Universal Laptop Charger KD00MS0061 90W

Universal power supply for laptops with 10 adapters.

Features

Overload protection.

Short circuit protection.

High temperature protection.

Noise reduction scheme.

Specifications

Output voltage DC: 18.5V, 19V, 19.5V, 20V.

Maximum output power: 90W.

Power supply: 220V

Number of adapters: 10.

Compatible laptop models

ACER.

ASUS.

DELL.

HP.

SONY.

SAMSUNG.

TOSHIBA.

IBM.

LENOVO.

Adapter dimensions

5.5mm x 3.0mm (Samsung: 19V 3.16A, 19V 4.22A, 19V 4.74A)

5.5 mm x 2.5 mm (Toshiba / Lenovo / Asus: 19V 3.42A, 19V 3.95A, 19V 4.74A)

4.5mm x 3.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

4.5mm x 3.0mm (HP: 19.5V 3.33A, 19.5V 4.62A)

5.5 mm x 1.7 mm (Acer: 19V 3.42A, 19V 4.74A)

6.5 mm x 4.4 mm (Sony / LG / Samsung: 19V 3.31A, 19V 3.42A, 19.5V 3.9A, 19.5V 4.7A)

USB Type (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.9 mm x 5.5 mm (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.4mm x 5.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

7.4mm x 5.0mm (HP: 18.5V 3.5A, 19.5V 3.33A, 19V 4.74A)

Universālais barošanas bloks klēpjdatoriem ar 10 adapteriem.

Īpašības

Aizsardzība no pārslodzes.

Aizsardzība no īssavienojuma.

Aizsardzība no augstu temperatūru.

Sistēma trokšņu slāpēšanas.Specifikācijas

Izejas spriegums DC: 18.5V, 19V, 19.5V, 20V.

Maks. Izejas jauda: 90W.

Barošana: 220V

Daudzums adapteru: 10

Saderīgie modeļi

ACER.

ASUS.

DELL.

HP.

SONY.

SAMSUNG.

TOSHIBA.

IBM.

LENOVO.

Spraudņa tips: 5.5mm x 3.0mm (Samsung: 19V 3.16A, 19V 4.22A, 19V 4.74A)

5.5 mm x 2.5 mm (Toshiba / Lenovo / Asus: 19V 3.42A, 19V 3.95A, 19V 4.74A)

4.5mm x 3.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

4.5mm x 3.0mm (HP: 19.5V 3.33A, 19.5V 4.62A)

5.5 mm x 1.7 mm (Acer: 19V 3.42A, 19V 4.74A)

6.5 mm x 4.4 mm (Sony / LG / Samsung: 19V 3.31A, 19V 3.42A, 19.5V 3.9A, 19.5V 4.7A)

USB Type (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.9 mm x 5.5 mm (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.4mm x 5.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

7.4mm x 5.0mm (HP: 18.5V 3.5A, 19.5V 3.33A, 19V 4.74A)

Универсальный блок питания для ноутбуков с 10 адаптерами.

Особенности

Защита от перегрузки.

Защита от короткого замыкания.

Защита от высоких температур.

Система шумоподавления.Характеристики

Выходное напряжение DC: 18.5V, 19V, 19.5V, 20V.

Максимальная выходная мощность: 90W.

Питание: 220V

Количество адаптеров: 10

Совместимые модели

ACER.

ASUS.

DELL.

HP.

SONY.

SAMSUNG.

TOSHIBA.

IBM.

LENOVO.

Тип штекера: 5.5mm x 3.0mm (Samsung: 19V 3.16A, 19V 4.22A, 19V 4.74A)

5.5 mm x 2.5 mm (Toshiba / Lenovo / Asus: 19V 3.42A, 19V 3.95A, 19V 4.74A)

4.5mm x 3.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

4.5mm x 3.0mm (HP: 19.5V 3.33A, 19.5V 4.62A)

5.5 mm x 1.7 mm (Acer: 19V 3.42A, 19V 4.74A)

6.5 mm x 4.4 mm (Sony / LG / Samsung: 19V 3.31A, 19V 3.42A, 19.5V 3.9A, 19.5V 4.7A)

USB Type (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.9 mm x 5.5 mm (Lenovo / IBM: 20V 3.25A, 20V 4.5A)

7.4mm x 5.0mm (Dell: 19.5V 3.34A, 19.5V 4.62A)

7.4mm x 5.0mm (HP: 18.5V 3.5A, 19.5V 3.33A, 19V 4.74A)
