| manufacturer | VALUE |
| product group | Connection technology TP |

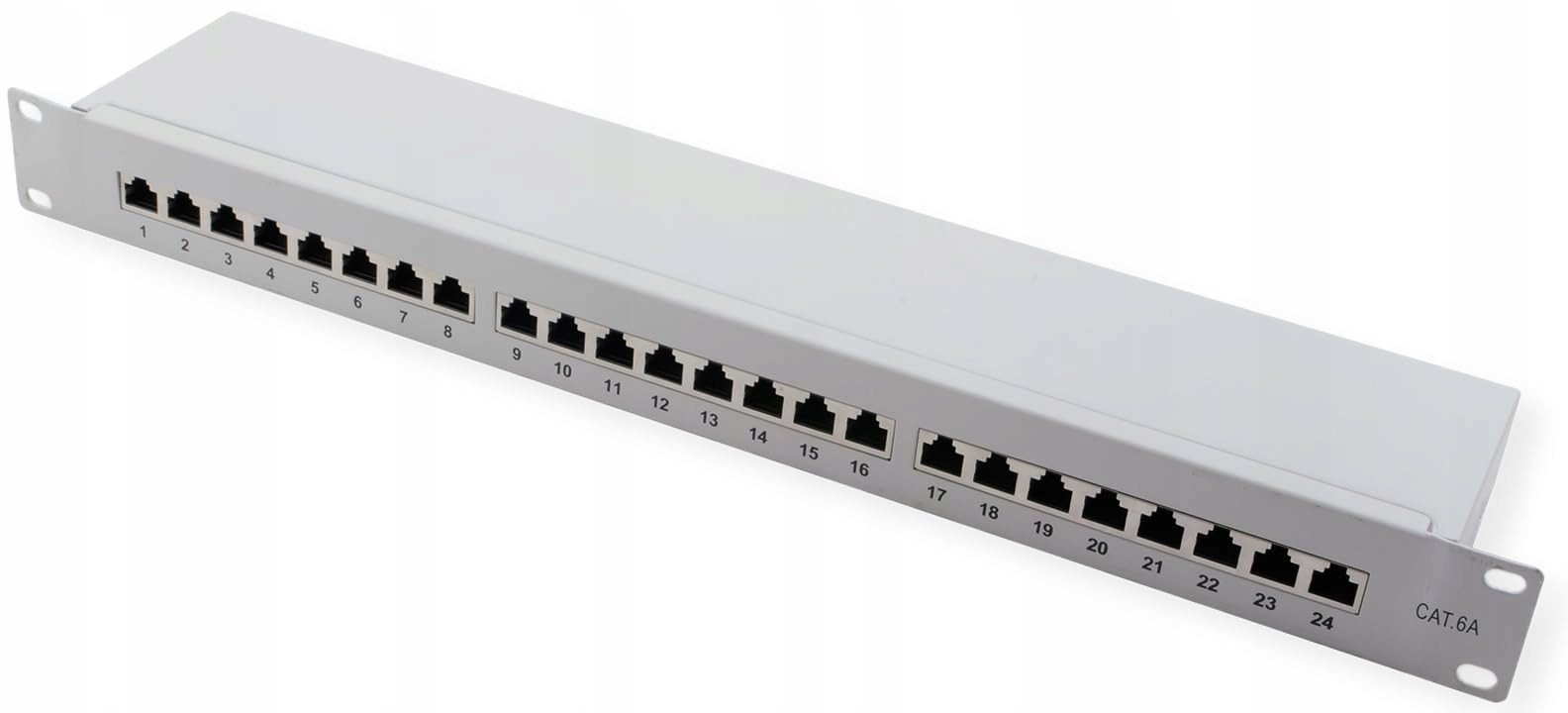

| product type | Patchpanel Cat.6A / Class EA |
| colour | grey |
| weight | 1510 g |
| height of packaging (single piece) | 60 mm |
| width of packaging (single piece) | 160 mm |
| depth of packaging (single piece) | 500 mm |
| package weight (single piece) | 1.6 kg |
| gross weight | 1.6 |
| current catalog edition | C25-01.43 |
| transfer quality | Cat6A / Class EA |
| scope of delivery | Patch Panel, Mounting Material, Installation Instructions |
| height | 44.2 mm |
| width | 482.6 mm |
| depth | 88 mm |
| operating temperature min. | -10 °C |
| operating temperature max. | 60 °C |
| storage temperature min. | -40 °C |
| storage temperature max. | 70 °C |
| dimensions (hxwxd) | 44,2 x 482,6 x 88 mm |
| quantity of ports | 24 |
| shield type | Screened |
| shield contacts | ja |
| separate strain relief | yes |
| material (casing) | Metal |
| ral colour | RAL 7035 Light grey |
| assembly cable connection | Krone LSAplus |
| modular assembly | no |
| cabinet system | 19"-Technique |
| height units | 1 U |
