Manufacturer: ARCTIC

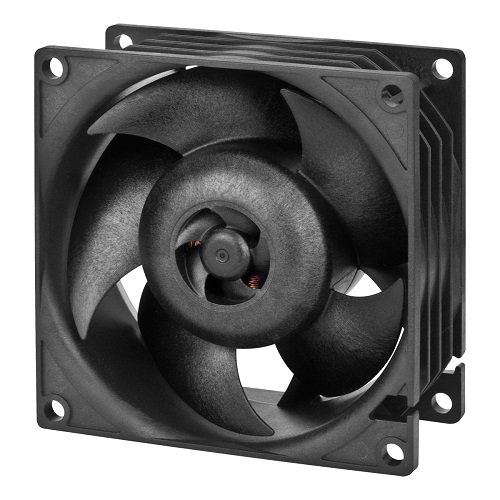

Arctic S8038-10K Server Fan 4-pin / 40mm

€16.89 incl tax

SKU: ST08651457

Manufacturer part number: ACFAN00279A

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LT	2 - 4 days	2	€16.89 incl tax
LV	2 - 5 days	2	€18.83 incl tax
PL	8 - 15 days	85	€20.58 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

Producer	Case cooler 40 mm.
Producer	Case cooler 80 mm.

Weight	0.15
Gross weight	0.2
Description
	The ARCTIC S8038-10K fan (model ACFAN00279A) is designed for use in server systems and industrial applications, providing effective cooling in confined spaces. Technical Specifications: Dimensions: 80 x 80 x 38 mm Rotation Speed: 500–10 000 RPM Airflow: up to 173.3 m³/h (102 CFM) Static Pressure: 51 mm H₂O Noise Level: up to 40 dBa Bearing Type: Dual Ball Bearing Speed Control: PWM (Pulse Width Modulation) Cable Length: 30 cm Operating Voltage: 12 V DC Connector Type: 4-pin Power Consumption: 15.6 W
	ARCTIC S8038-10K ventilators (modelis ACFAN00279A) ir paredzēts lietošanai serveru sistēmās un rūpnieciskās lietojumprogrammās, nodrošinot efektīvu dzesēšanu ierobežotā telpā. Tehniskās specifikācijas: Izmēri: 80 x 80 x 38 mm Griešanās ātrums: 500–10 000 apgr./min Gaisa plūsma: līdz 173,3 m³/h (102 CFM) Statiskā spiediena: 51 mm ūdens kolonna Troksnis līmenis: līdz 40 dBa Gultņa tips: Divkāršais lodīšu gultnis Ātruma kontrole: PWM (platuma impulsu modulācija) Kabeļa garums: 30 cm Barošanas spriegums: 12 V DC Savienojuma tips: 4-pin Patērētā jauda: 15,6 W
	Вентилятор ARCTIC S8038-10K (модель ACFAN00279A) предназначен для использования в серверных системах и промышленных приложениях, обеспечивая эффективное охлаждение в ограниченных пространствах. Технические характеристики: Размеры: 80 x 80 x 38 мм Скорость вращения: 500–10 000 об/мин Воздушный поток: до 173,3 м³/ч (102 CFM) Статическое давление: 51 мм водяного столба Уровень шума: до 40 дБа Тип подшипника: Двойной шарикоподшипник Управление скоростью: PWM (широтно-импульсная модуляция) Длина кабеля: 30 см Напряжение питания: 12 В DC Тип подключения: 4-pin Потребляемая мощность: 15,6 Вт

Description

Server Fan S8038-10K, 10000 RPM, -pin, 80mm, lack.rFeatures: uDesigned for continuous operation.u The impeller of the S8038-10K is held y two high-quality Japanese all earings in a sturdy rass housing. This design increases the staility, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the rass housing helps to reduce wear on high-speed fans.uFull control with a wide speed range.u The S8038-10K has a very wide speed range that can e regulated via PWM and voltage. With its 10000 rpm ma, it offers a good alance etween cooling power and noise.uHigh airflow and static pressureu. Heat sinks and radiators enefit from fans with high static pressure. The S8038-10K has a static pressure of 51 mmH2O, which enales it to push air, even through narrow cooling fins. At the same time, it achieves a maimum airflow of 173.3 m³h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.uWide range of applicationsu.The S8038-10K fits into 2U server housings and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. uActive cooling for etended motor lifespanu. Reliale and roust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes. A 10°C lower motor temperature roughly doules the service life. The motor of the S8038-10K is not only particularly efficient, ut is also actively cooled y an additional impeller in the fan hu. The scope of delivery includes a sticker for the motor hu, which ensures a long service life even in dusty environments.uFleile connection optionsu.The fan has a standard -Pin fan connector and can also e connected to and controlled on 2-Pin or 3-Pin headers, while the 30cm cale allows a lot of fleiility in positioning.rSpecifications: Speed: 500-10000 rpm.Air flow: 102 CFM 173.30 m³h.Static pressure: 51 mmH2O.Bearing: dual all earing.Speed control: PWM.Voltage current: 12V DC 1.3A.Starting voltage: 5.8 V DC.Connector: 2510 -Pin fan-connector.Flammaility UL 9:V-0.Cale length: 300 mm.Color: lack.Dimensions: 808038 mm.Weight: 151 g.rWarranty: 6 years.

Products specifications

1
Details 2
Details 3

Producer	Case cooler 40 mm.
Producer	Case cooler 80 mm.

Weight	0.15
Gross weight	0.2
Description
	The ARCTIC S8038-10K fan (model ACFAN00279A) is designed for use in server systems and industrial applications, providing effective cooling in confined spaces. Technical Specifications: Dimensions: 80 x 80 x 38 mm Rotation Speed: 500–10 000 RPM Airflow: up to 173.3 m³/h (102 CFM) Static Pressure: 51 mm H₂O Noise Level: up to 40 dBa Bearing Type: Dual Ball Bearing Speed Control: PWM (Pulse Width Modulation) Cable Length: 30 cm Operating Voltage: 12 V DC Connector Type: 4-pin Power Consumption: 15.6 W
	ARCTIC S8038-10K ventilators (modelis ACFAN00279A) ir paredzēts lietošanai serveru sistēmās un rūpnieciskās lietojumprogrammās, nodrošinot efektīvu dzesēšanu ierobežotā telpā. Tehniskās specifikācijas: Izmēri: 80 x 80 x 38 mm Griešanās ātrums: 500–10 000 apgr./min Gaisa plūsma: līdz 173,3 m³/h (102 CFM) Statiskā spiediena: 51 mm ūdens kolonna Troksnis līmenis: līdz 40 dBa Gultņa tips: Divkāršais lodīšu gultnis Ātruma kontrole: PWM (platuma impulsu modulācija) Kabeļa garums: 30 cm Barošanas spriegums: 12 V DC Savienojuma tips: 4-pin Patērētā jauda: 15,6 W
	Вентилятор ARCTIC S8038-10K (модель ACFAN00279A) предназначен для использования в серверных системах и промышленных приложениях, обеспечивая эффективное охлаждение в ограниченных пространствах. Технические характеристики: Размеры: 80 x 80 x 38 мм Скорость вращения: 500–10 000 об/мин Воздушный поток: до 173,3 м³/ч (102 CFM) Статическое давление: 51 мм водяного столба Уровень шума: до 40 дБа Тип подшипника: Двойной шарикоподшипник Управление скоростью: PWM (широтно-импульсная модуляция) Длина кабеля: 30 см Напряжение питания: 12 В DC Тип подключения: 4-pin Потребляемая мощность: 15,6 Вт

Description
