    Manufacturer: ARCTIC

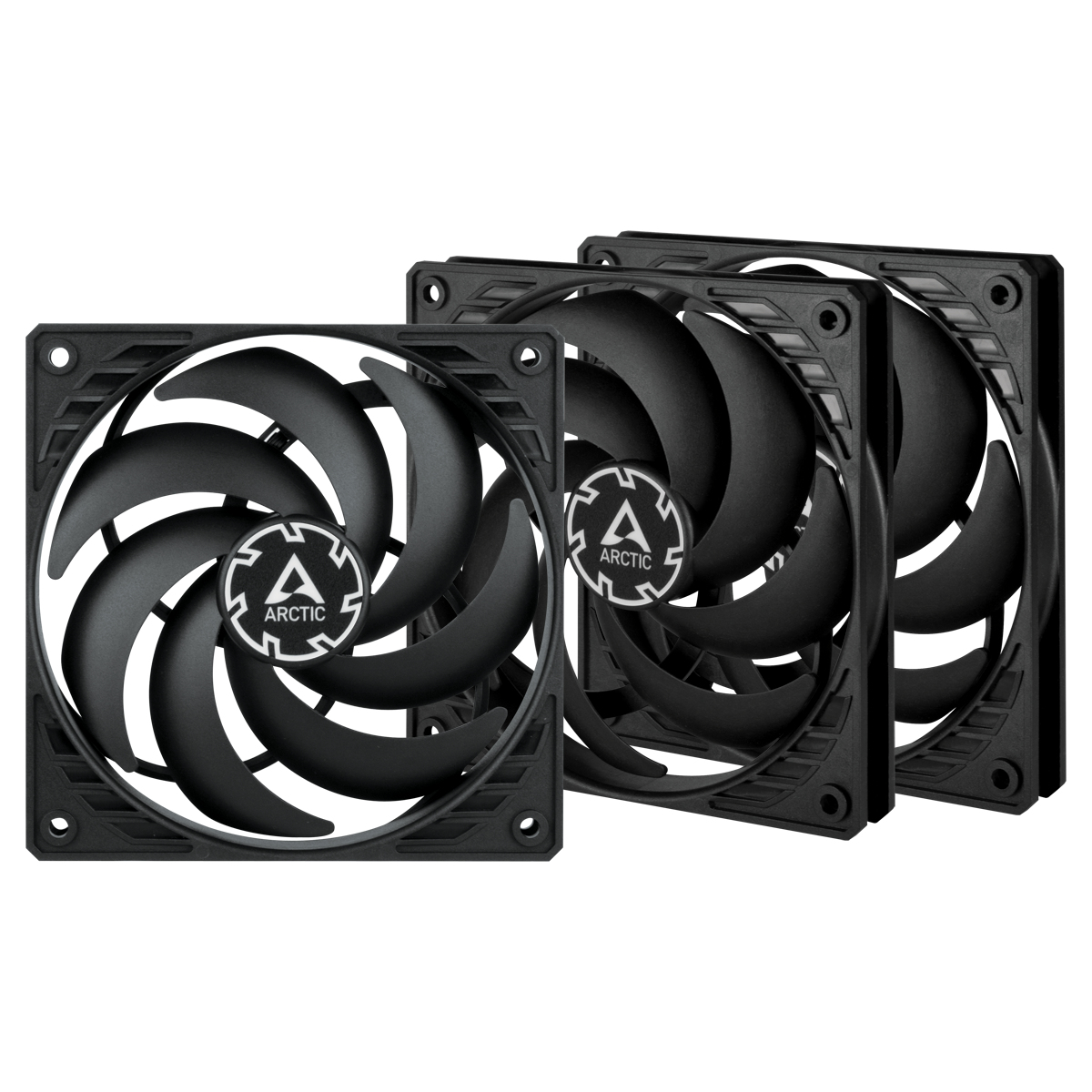

    ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable


    €26.43 incl tax

    SKU: ST05831587
    Manufacturer part number: ACFAN00275A
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Producer Case cooler 120 mm.
    Suitable locationComputer case
    TypeFan
    Fan diameter12 cm
    Supported processor socketsNot supported
    Compatible processor seriesNot supported
    Rotational speed (min)300 RPM
    Rotational speed (max)2100 RPM
    Noise level0.3 sone
    Maximum airflow41.1 cfm
    Airflow71.53 m³/h
    Maximum air pressure1.45 mmH2O
    Pulse-width modulation (PWM) supportYes
    Bearing typeFluid Dynamic Bearing (FDB)
    Fan bearing technologyFluid Dynamic Bearing (FDB)
    Quantity per pack3 pc(s)
    Product colourBlack
    MaterialPlastic
    Number of fans1 fan(s)
    Voltage12 V
    Starting voltage4 V
    Rated current0.12 A
    Width120 mm
    Depth120 mm
    Height15 mm
    Weight85 g
    Cable length0.48 m
    Package width53 mm
    Package depth123 mm
    Package height14 mm
    Package weight345 g
    Package typeBox
    Mounting kitYes
    Screws includedYes
    Harmonized System (HS) code84733080
    Description
    ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 300 RPM, Rotational speed (max): 2100 RPM, Noise level: 0.3 sone, Maximum airflow: 41.1 cfm, Airflow: 71.53 m³/h, Maximum air pressure: 1.45 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 15 mm. Product colour: Black
    Weight0.26
    Gross weight0.3
    Description

    The Arctic P12 Slim PWM PST is a slim 120mm fan designed for efficient cooling in compact systems.

    Key Specifications:

    • Dimensions: 120 x 120 x 15 mm
    • Speed: 300–2100 RPM (adjustable via PWM)
    • Airflow: Up to 42.1 CFM
    • Noise Level: 5–23 dB
    • Static Pressure: 1.45 mm H₂O
    • Connector: 4-pin PWM with PWM Sharing Technology (PST)
    • Bearing Type: Fluid Dynamic Bearing
    • Current Consumption: 0.12 A
    • Rated Voltage: 12 V
    • Cable Length: 400 mm
    • Weight: 85 g

    Arctic P12 Slim PWM PST ir plāns 120 mm ventilators, kas paredzēts efektīvai dzesēšanai kompaktās sistēmās.

    Galvenās specifikācijas:

    • Izmēri: 120 x 120 x 15 mm
    • Ātrums: 300–2100 apgr./min (regulējams ar PWM)
    • Gaisa plūsma: Līdz 42,1 CFM
    • Trokšņa līmenis: 5–23 dB
    • Statiskā spiediena līmenis: 1,45 mm H₂O
    • Savienotājs: 4 kontaktu PWM ar PWM Sharing Technology (PST)
    • Gultņu tips: Šķidruma dinamiskais gultnis
    • Strāvas patēriņš: 0,12 A
    • Nominālais spriegums: 12 V
    • Kabeļa garums: 400 mm
    • Svars: 85 g

    Arctic P12 Slim PWM PST — это тонкий 120-мм вентилятор, разработанный для эффективного охлаждения в компактных системах.

    Основные характеристики:

    • Размеры: 120 x 120 x 15 мм
    • Скорость вращения: 300–2100 об/мин (регулируется через PWM)
    • Воздушный поток: до 42,1 CFM
    • Уровень шума: 5–23 дБ
    • Статическое давление: 1,45 мм H₂O
    • Подключение: 4-контактный разъем PWM с технологией PST (PWM Sharing Technology)
    • Тип подшипника: гидродинамический (Fluid Dynamic Bearing)
    • Потребляемый ток: 0,12 А
    • Номинальное напряжение: 12 В
    • Длина кабеля: 400 мм
    • Вес: 85 г
    Description
    PWM Fan with Cale Splitter P12 Slim PWM PST, -pin, 120mm, lack, set of 3 pcs.rFeatures:uIdeal for small spaces.uUnlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) uilds. Corresponding screws for mounting on a radiator are already included.u300 to 2100 rpm controlled via PWM PST.u With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can e controlled in sync with other fans. ARCTIC's PST fans come equipped with their own uilt-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can e connected in series.uHigh-quality sleeve earing.u Thanks to a comination of alloy and luricant developed in Germany, friction within the earing is minimized and greater efficiency is achieved. In addition to preventing luricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less earing noise is generated and the life of the fan is etended significantly.uOptimised for static pressure.u Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enales etremely efficient cooling and good airflow - even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.uMaimum quietness, minimum viration.u The operating noise of the newly-developed ARCTIC motor is arely perceptile, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation virations of a conventional DC motor. As a result, there is far less viration on the housing at different speeds and no need for ruer uffering or additional decoupling.uImproved service life.u The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced y up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.u0dB Mode - Zero rpm.u The speed of the P12 Slim PWM PST can e throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maimum performance on demand.rSpecifications:Fan speed: 300-2100 RPM (0 rpm elow 9% PWM).Air flow: 3.51 CFM 58.62 m³h.Static pressure: 1.33 (mm H2O).Noise level: 0.3 Sone.Fan earing: Fluid dynamic earing.Current voltage: 0.12A 12V DC.Connection: -pin connector.Cale length: 00+80 mm.Size: 12012015 mm.Weight: 85 g.Set includes 3 pcs.rWarranty: 6 years.

    Products specifications
    Producer Case cooler 120 mm.
    Suitable locationComputer case
    TypeFan
    Fan diameter12 cm
    Supported processor socketsNot supported
    Compatible processor seriesNot supported
    Rotational speed (min)300 RPM
    Rotational speed (max)2100 RPM
    Noise level0.3 sone
    Maximum airflow41.1 cfm
    Airflow71.53 m³/h
    Maximum air pressure1.45 mmH2O
    Pulse-width modulation (PWM) supportYes
    Bearing typeFluid Dynamic Bearing (FDB)
    Fan bearing technologyFluid Dynamic Bearing (FDB)
    Quantity per pack3 pc(s)
    Product colourBlack
    MaterialPlastic
    Number of fans1 fan(s)
    Voltage12 V
    Starting voltage4 V
    Rated current0.12 A
    Width120 mm
    Depth120 mm
    Height15 mm
    Weight85 g
    Cable length0.48 m
    Package width53 mm
    Package depth123 mm
    Package height14 mm
    Package weight345 g
    Package typeBox
    Mounting kitYes
    Screws includedYes
    Harmonized System (HS) code84733080
    Description
    ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 300 RPM, Rotational speed (max): 2100 RPM, Noise level: 0.3 sone, Maximum airflow: 41.1 cfm, Airflow: 71.53 m³/h, Maximum air pressure: 1.45 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 15 mm. Product colour: Black
    Weight0.26
    Gross weight0.3
    Description

    The Arctic P12 Slim PWM PST is a slim 120mm fan designed for efficient cooling in compact systems.

    Key Specifications:

    • Dimensions: 120 x 120 x 15 mm
    • Speed: 300–2100 RPM (adjustable via PWM)
    • Airflow: Up to 42.1 CFM
    • Noise Level: 5–23 dB
    • Static Pressure: 1.45 mm H₂O
    • Connector: 4-pin PWM with PWM Sharing Technology (PST)
    • Bearing Type: Fluid Dynamic Bearing
    • Current Consumption: 0.12 A
    • Rated Voltage: 12 V
    • Cable Length: 400 mm
    • Weight: 85 g

    Arctic P12 Slim PWM PST ir plāns 120 mm ventilators, kas paredzēts efektīvai dzesēšanai kompaktās sistēmās.

    Galvenās specifikācijas:

    • Izmēri: 120 x 120 x 15 mm
    • Ātrums: 300–2100 apgr./min (regulējams ar PWM)
    • Gaisa plūsma: Līdz 42,1 CFM
    • Trokšņa līmenis: 5–23 dB
    • Statiskā spiediena līmenis: 1,45 mm H₂O
    • Savienotājs: 4 kontaktu PWM ar PWM Sharing Technology (PST)
    • Gultņu tips: Šķidruma dinamiskais gultnis
    • Strāvas patēriņš: 0,12 A
    • Nominālais spriegums: 12 V
    • Kabeļa garums: 400 mm
    • Svars: 85 g

    Arctic P12 Slim PWM PST — это тонкий 120-мм вентилятор, разработанный для эффективного охлаждения в компактных системах.

    Основные характеристики:

    • Размеры: 120 x 120 x 15 мм
    • Скорость вращения: 300–2100 об/мин (регулируется через PWM)
    • Воздушный поток: до 42,1 CFM
    • Уровень шума: 5–23 дБ
    • Статическое давление: 1,45 мм H₂O
    • Подключение: 4-контактный разъем PWM с технологией PST (PWM Sharing Technology)
    • Тип подшипника: гидродинамический (Fluid Dynamic Bearing)
    • Потребляемый ток: 0,12 А
    • Номинальное напряжение: 12 В
    • Длина кабеля: 400 мм
    • Вес: 85 г
    Description
    PWM Fan with Cale Splitter P12 Slim PWM PST, -pin, 120mm, lack, set of 3 pcs.rFeatures:uIdeal for small spaces.uUnlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) uilds. Corresponding screws for mounting on a radiator are already included.u300 to 2100 rpm controlled via PWM PST.u With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can e controlled in sync with other fans. ARCTIC's PST fans come equipped with their own uilt-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can e connected in series.uHigh-quality sleeve earing.u Thanks to a comination of alloy and luricant developed in Germany, friction within the earing is minimized and greater efficiency is achieved. In addition to preventing luricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less earing noise is generated and the life of the fan is etended significantly.uOptimised for static pressure.u Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enales etremely efficient cooling and good airflow - even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.uMaimum quietness, minimum viration.u The operating noise of the newly-developed ARCTIC motor is arely perceptile, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation virations of a conventional DC motor. As a result, there is far less viration on the housing at different speeds and no need for ruer uffering or additional decoupling.uImproved service life.u The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced y up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.u0dB Mode - Zero rpm.u The speed of the P12 Slim PWM PST can e throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maimum performance on demand.rSpecifications:Fan speed: 300-2100 RPM (0 rpm elow 9% PWM).Air flow: 3.51 CFM 58.62 m³h.Static pressure: 1.33 (mm H2O).Noise level: 0.3 Sone.Fan earing: Fluid dynamic earing.Current voltage: 0.12A 12V DC.Connection: -pin connector.Cale length: 00+80 mm.Size: 12012015 mm.Weight: 85 g.Set includes 3 pcs.rWarranty: 6 years.
