Manufacturer: ZYXEL

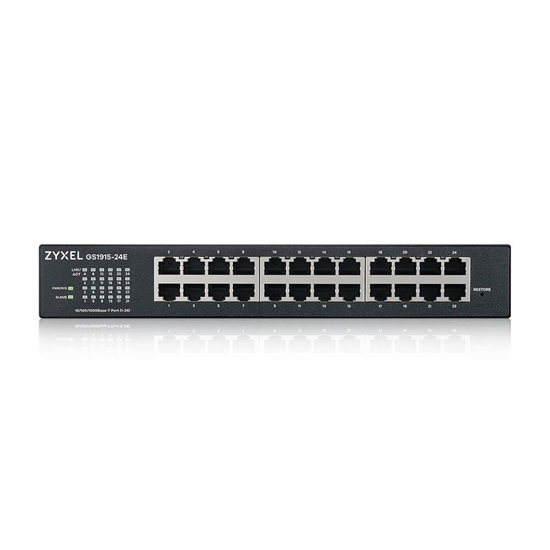

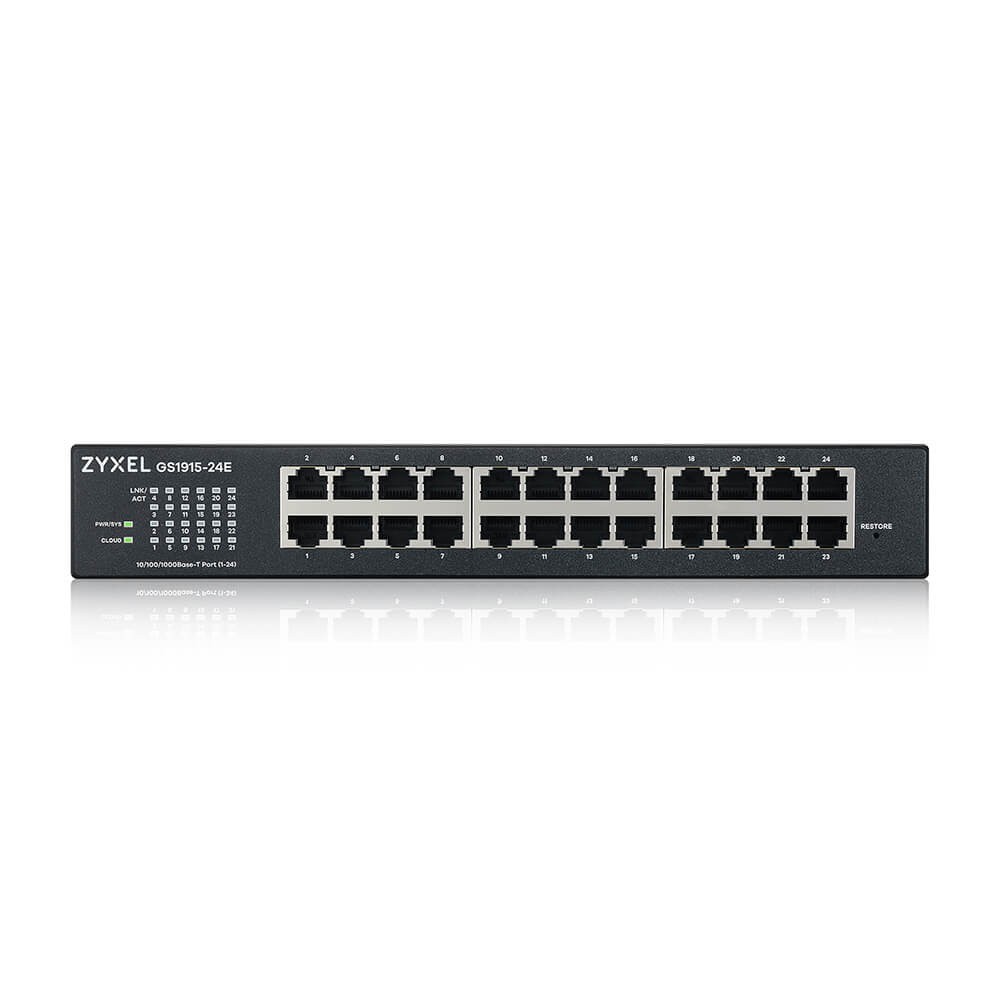

Zyxel GS1915-24E 24-port Smart Switch, NebulaFlex

€137.43 incl tax

SKU: ST06474169

Manufacturer part number: GS1915-24E-EU0101F

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	9 - 12 days	1	€137.43 incl tax
PL	8 - 15 days	2	€146.41 incl tax
LV	7 - 12 days	5	€160.98 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

Properties	RJ-45
WRL stadarti	802.11b
RJ-45 port	24

Switch class	SMART
Application	Medium and large companies
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	24
10/100/1000/2500 Mbps ports	None
Number of 10Gb ports	None
Number of PoE ports (PoE & PoE+)	None
Number of PoE+ ports	None
Number of COMBO ports	None
Number of SFP ports	None
Number of SFP+ ports	None
Number of QSFP+ ports	None
Console port	No
Throughput	48 (Gigabity na sek.)
Forwarding rate	35.7 (Mpps)
Packet buffer	525 (Kilobajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
Stackability	No
Number of VLAN groups	256
VLAN	802.1Q Static VLANs: 256 Port-based VLAN Voice VLAN MAC-based VLAN Vendor ID based VLAN VLAN Trunking LACP algorithm of source/ destination IP
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support/Green Ethernet IEEE 802.1p CoS support
QoS	802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/egress) 802.3x flow control 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable) DiffServ (DSCP)
Security	Layer 2 MAC filtering Static MAC forwarding SSH v2 SSL Port isolation Port security MAC freeze CPU protection SHA2 HTTPS Certification Login authentication by RADIUS RADIUS accounting Authorization on RADIUS Multiple RADIUS servers DHCP Snooping
Management, monitoring, configuration	IPv6 Management: IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC4213) ICMPv6 (RFC4884) Path MTU (RFC 1981) Minimum Path MTU size of 1280 (RFC 5905) Encapsulation for maximum PMTU size of 1500 Neighbor Discovery (RFC4861) Manageability: SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog Display port utilization IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Support NebulaFlex for Cloud Management Device Management: Standalone management by Web interface Cloud management by Nebula Control Center Setup Wizard Management through Web, SNMP Remote firmware upgrade by FTP/Web Configuration saving and retrieving DHCP client DHCP relay per VLAN Daylight saving NTP (IPv4/IPv6) Port mirroring Schedule PoE PoE default consumption mode ZON Utility: Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Password configuration One-click quick association with Zyxel AP Configurator (ZAC) Automatic detection of the latest firmware Displays device serial number and hardware version Cloud mode on/off option for Hybrid series devices Smart Connect: Discover neighboring devices One-click remote management access to the neighboring Zyxel devices Reset neighboring devices remotely to factory defaults
L2 features	L2 Multicast Static L2 Multicast Forwarding IGMP snooping (v1, v2, v3)
Chassis type	Rack
Chassis type	Desktop
Fan	No
Power supply	Internal
Power consumption	15.5 (Watt)
Mean time between failures (MTBF)	674068 (Hour)
Accessories included	Przewód zasilający Zestaw do montażu na ścianie Zestaw do montażu rack
Power supply	100 - 240 V AC, 50/60 Hz
Dimensions	267 x 162 x 42 mm
Weight	1.57 (kilogram)
Environment requirements	Temperatura pracy: 0°C - 40°C Wilgotność podczas pracy: 10% - 95% (bez kondensacji) Temperatura przechowywania: -40°C - 70°C Wilgotność podczas przechowywania: 10% - 95% (bez kondensacji)
Certificates	RoHS EMC: CE, FCC, RCM, Class A BSMI CNS 13438 Safety: LVD EN 62368-1 BSMI CNS 14336-1
Designation	CE+WEEE
Width	335
Height	225
Depth	75
Weight	2200

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Port-based VLAN
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	525 MB
DHCP features	DHCP client, DHCP relay
IGMP snooping	Yes
Security algorithms	HTTPS, SHA-2, SSH-2, SSL/TLS
SSH/SSL support	Yes
Loop protection	Yes
Password protection	Yes
Multicast support	Yes
Management protocols	SNMP v1, v2c, v3
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Mean time between failures (MTBF)	674068 h
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	15.5 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	53 BTU/h
Width	267 mm
Depth	162 mm
Height	42 mm
Weight	1.57 kg
Package width	325 mm
Package depth	223 mm
Package height	71 mm
Package weight	2.05 kg
Description
Description	Zyxel GS1915-24E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... Wall mountable, Rack mounting, Form factor: 1U

power over ethernet (poe)

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

1.57 kg

height

42 mm

width

267 mm

depth

162 mm

switch type

Managed

wall mountable

Yes

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10g support

port mirroring

Yes

flow control support

Yes

mac address table

8000 entries

switching capacity

48 Gbit/s

forwarding rate

35.7 Mpps

packet buffer memory

525 MB

multicast support

Yes

rack mounting

Yes

form factor

product colour

Black

led indicators

Yes

mean time between failures (mtbf)

674068 h

power consumption (max)

15.5 W

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 95%

heat dissipation

53 BTU/h

package width

325 mm

package depth

223 mm

package height

71 mm

package weight

2.05 kg

power source

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

ethernet lan data rates

100,1000 Mbit/s

jumbo frames support

Yes

security algorithms

HTTPS, SHA-2, SSH-2, SSL/TLS

number of fans

0 fan(s)

jumbo frames

9000

igmp snooping

Yes

power supply included

Yes

spanning tree protocol

Yes

fanless

Yes

vlan support

Yes

broadcast storm control

Yes

dhcp features

DHCP client, DHCP relay

ssh/ssl support

Yes

virtual lan features

Port-based VLAN

loop protection

Yes

mib support

management protocols

SNMP v1, v2c, v3

cloud-managed

Yes

password protection

Yes

Description

Zyxel GS1915-24E. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 48 Gbit/s. Tīkla standarts: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... Pie sienas piestiprināms, Statņa montāža, Formas faktors: 1U
