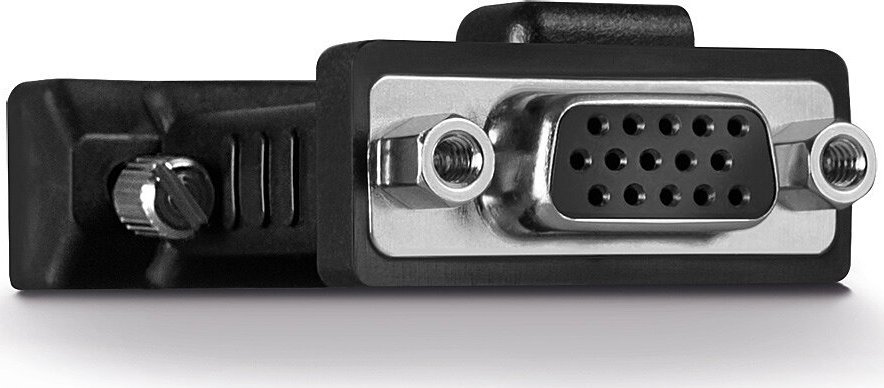

Lindy VGA EDID Emulator

Specification

• AV Interface: VGA
• Interface Standard: VGA
• Supported Bandwidth: 4.95Gbps
• Maximum Resolution: 1920x1200@60Hz
• Video EDID:
  • 1024x768@75Hz
  • 1152x864@75Hz
  • 1280x720@60Hz
  • 1280x768@60Hz
  • 1280x960@60Hz
  • 1280x1024@60Hz/75Hz
  • 1366x768@60Hz
  • 1440x900@60Hz
  • 1600x900@60Hz
  • 1600x1200@60Hz
  • 1680x1050@60Hz
  • 1920x1080@60Hz
  • 1920x1200@60Hz
• Audio EDID: -
• HDCP Support: -
• Special Features: -

Connectors

• Input: VGA (Female)
• Output: VGA (Male)
• Power: Powered by source device, 3.5/1.35mm (Optional)

Physical Properties

• Dimensions (approx.) WxDxH: 33x59x14mm (1.3x2.32x0.55in)
• Housing Material: Metal
• Net Weight: 0.027kg (0.06lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5VDC 500mA (Optional)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.042kg (0.09lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• VGA EDID Emulator
• Lindy Manual

Purchasing Information

• No.: 32121
• EAN: 4002888321211
